Emergency Stop Button
E
MERGENCY
An emergency stop button that is accessible from the
outside of the operator is a requirement for compliance
with UL325 Safety Standards. The red emergency stop
button on the SwingSmart operator is located inside a hole
cutout on the cover.
Pressing the emergency stop button while the gate is
opening or closing disables the automatic close timer and
stops gate travel. The gate travel remains stopped until the
operator receives any open or close signal.
Make sure all users of the gate know where the emergency
stop button is located.
A screwdriver or hex key can be used to press lightly on the
switch to activate it.
E
MERGENCY
Make sure to teach all users how to turn off electric power and how to move the gate manually. SwingSmart
allows a gate to be pushed manually when the taper clamp is loosened. It is recommended that you turn off DC
power which disengages the motor allowing you to easily move the gate.
When you turn DC power off, the following occurs:
•
The motor disengages which keeps it from running should any relay or open/close leaf functions be set.
•
The GATE NO LOAD (FAULT 4) may appear on the display.
To manually open the gate(s), take the following steps:
1. Remove the covers and turn off.
2. Extend the taper handle and loosen the clamp by turning the handle counter-clockwise. Refer to
Figure 1-16 on page 1-15.
3. Swing the gate(s) open or close.
To return SwingSmart to automatic operation, take the following steps:
1. Make sure the gate(s) is not moving.
2. Tighten the taper clamp until no slippage occurs when you simulate a gate strike. Refer to
Clamp
on page 1-15.
3. Flip the DC power switch ON.
4. Clear any faults by pressing STOP or RESET.
S-8
S
B
TOP
UTTON
R
ELEASE
SwingSmart DC Installation and Reference Manual

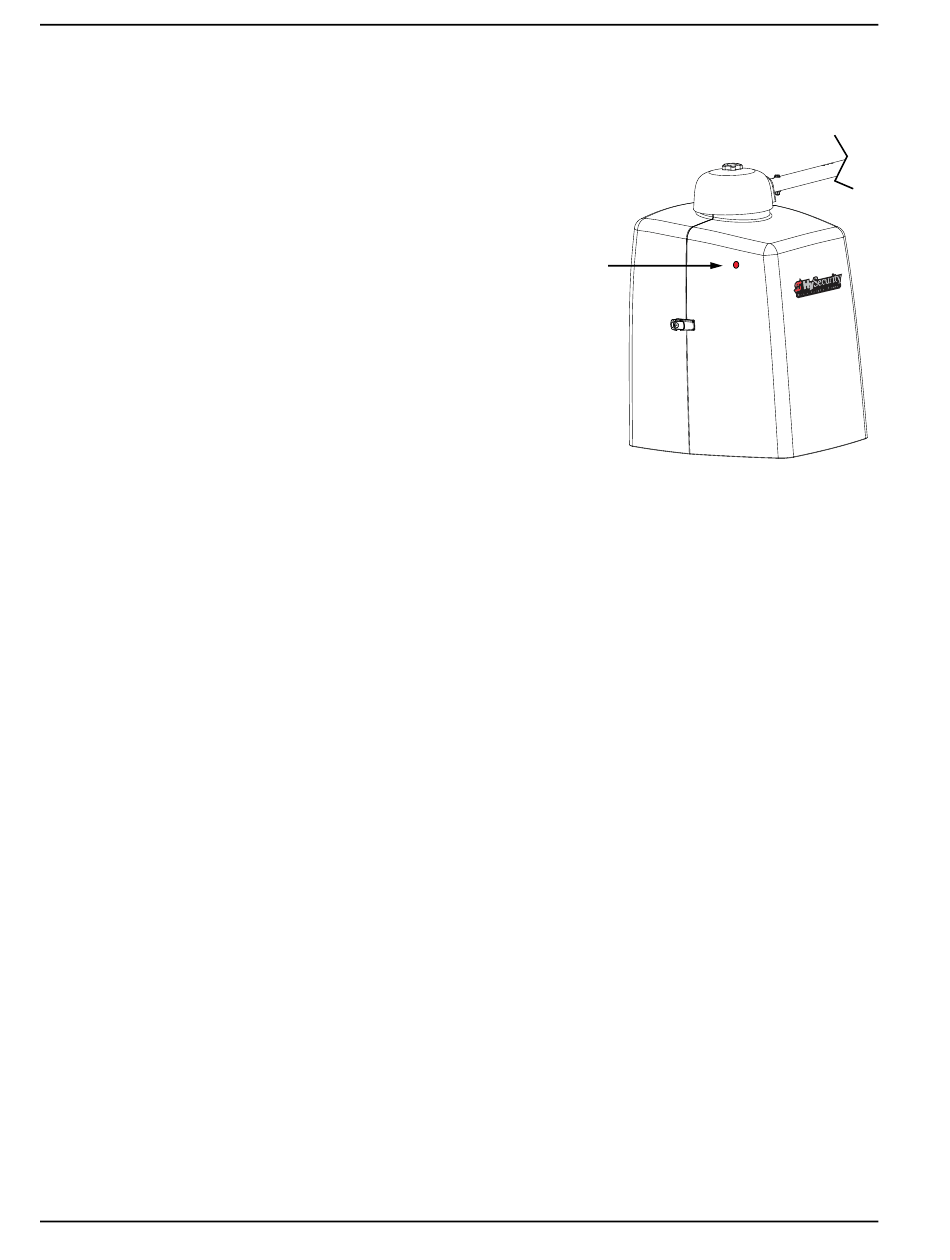

Red
Emergency
Stop button
Setting the Taper
Revision E
