Installation and operating instructions
5984
ixalo release terminal Pro
5984

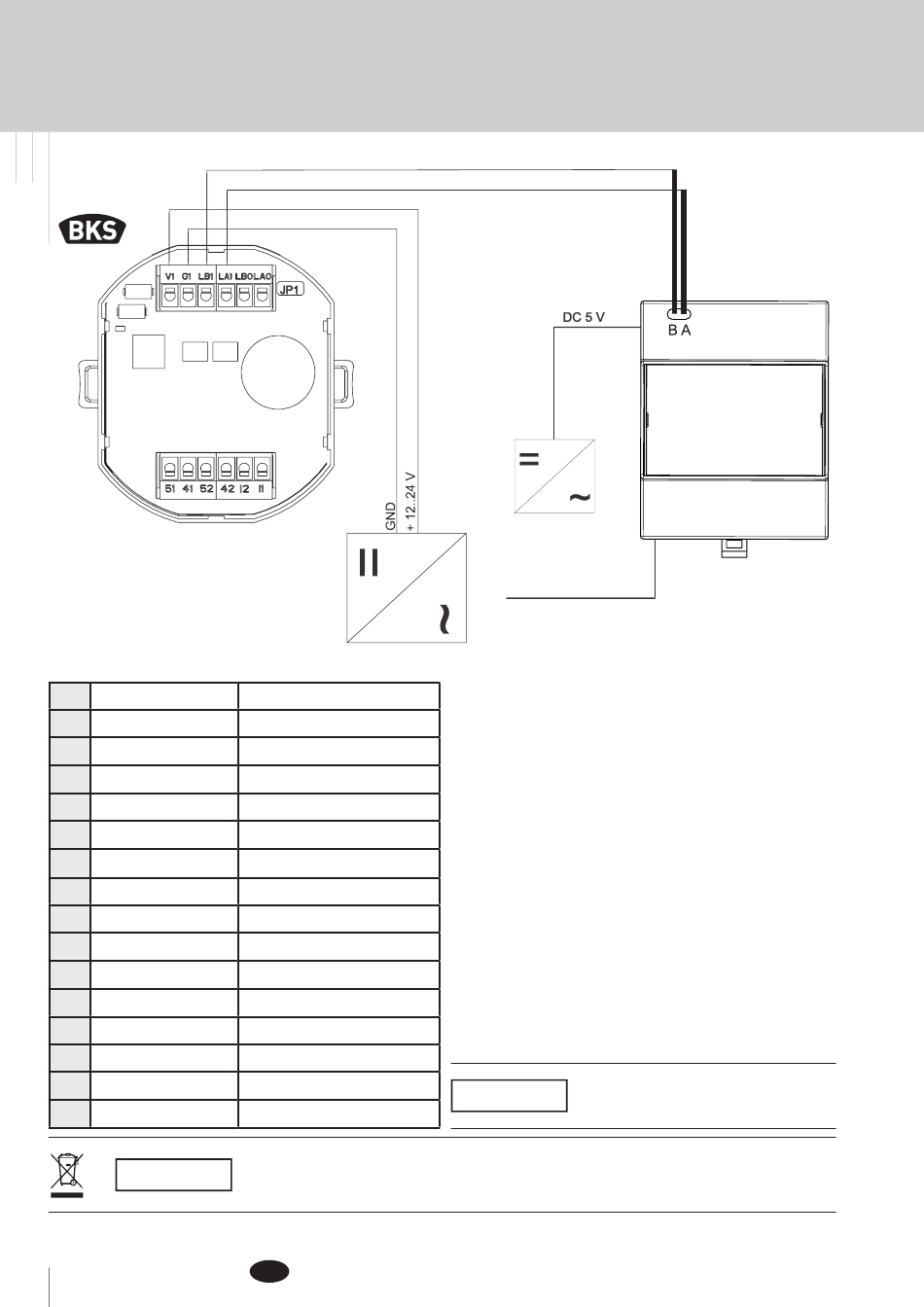

JP1 must be closed on the release terminal Pro 5984.
V1 Power supply
G1 Power supply
LB1 RS485 B
LA1 RS485 A
LB0 RS485 B
LA0 RS485 A
51 Output NO
41 Output C
52 Output NO
42 Output C
I2 Input 2
I1 Input 1
JP1 Jumper 1
JP2 Jumper 2
JP3 Jumper 3
JP4 Jumper 4
NOTE
The products must be disposed of as electronic waste at special waste disposal sites.
Packaging must be disposed of separately.
6
+12 ... 24 V DC
GND
Connection bus 1 B
Connection bus 1 A
Connection bus 0 B
Connection bus 0 A
Relay output NO
Relay output C
Relay output NO
Relay output C
+12 ... 24 V
+12 ... 24 V
Jumper for bus 1 termination
Jumper for bus 0 termination
Not used
Not used
The products must not be disposed of as household waste.
 Instead, the products must be disposed of properly by recycling them appropriately in accordance
with national and local laws and regulations.
EN
Ethernet/LAN
To protect the switching output, only
NOTE
inductive loads with flyback diode may
be connected.
11.2023 | 26894E | Designed in Germany
B 5361 0005
