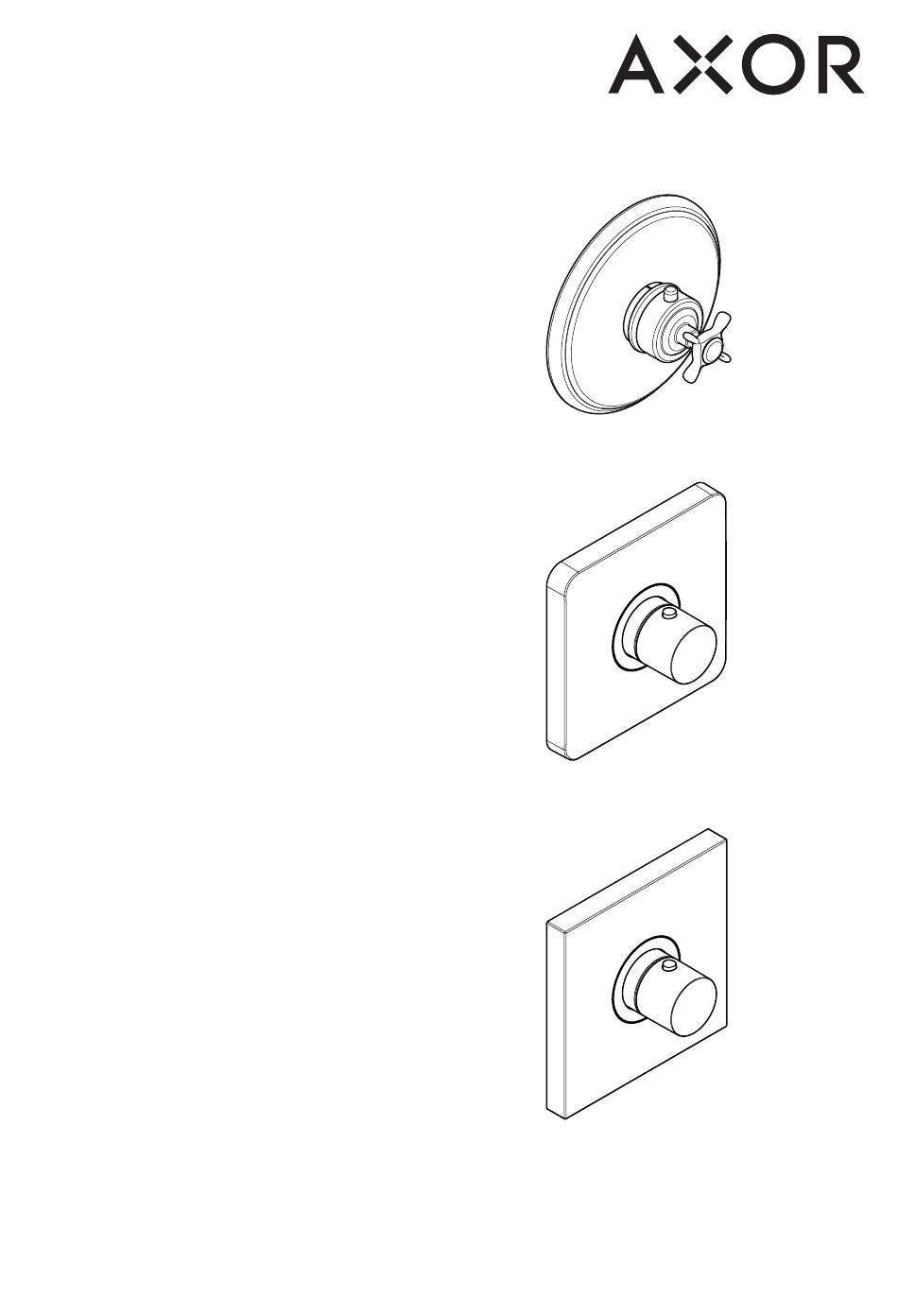

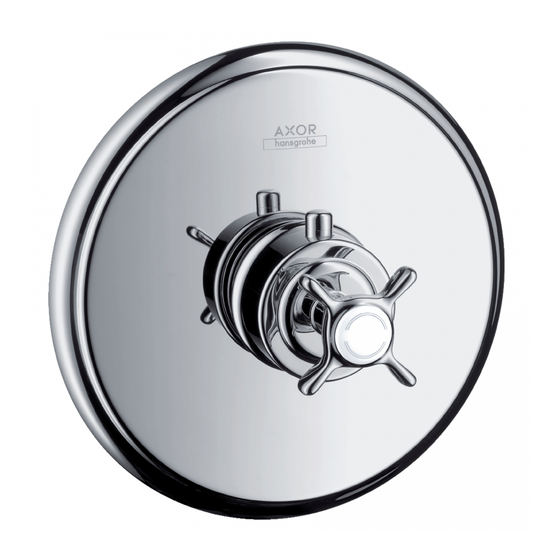

- Page 1 A XOR Montreux HighFlow 16815XX7 A XOR ShowerSelect HighFlow softsquare 36711XX7 A XOR ShowerSelect HighFlow square Z H ⁄ 用户手册 ⁄ 组装说明 36718XX7 E N ⁄ Instructions for use ⁄ Assembly instructions I N S T A L L A T I O N...
- Page 2 安全技巧 调节 (参见第页 08) 装配时为避免挤压和切割受伤, 必须戴上手套. 安装完成后必须检查调温器的出水温度. 如 本产品只允许作为洗浴, 卫生和洁身之用. 在取水处测量所得的温度与调温器上设定的 不得让儿童和肢体, 精神和⁄或意识有障碍的成人在 温度有偏差, 那么必须进行调整. 不受监管的情况下使用淋浴系统. 受酒精或毒品影 保养 (参见第页 10) 响的人员不得使用淋浴系统. ⁄ 单向阀必须在符合国家或当地的法律的情 冷热水管间过大的压力差必须予以平衡. 况下按照EN 806-5定期检查 (至少一年一 次). 安装提示 ⁄ 为了保证恒温器的稳定运转, 请务必定期 ⁄ 安装前必须检查产品是否受到运输损害. 安装后将 从最热到最冷转动调温器. 不认可运输损害或表面损伤. 大小 (参见第页 17) ⁄ 管道和阀门必须根据通用标准进行安装, 冲洗和检 查. 流量示意图 (参见第页 17) ⁄ 请遵守当地国家现行的安装规定. 时的流速 ⁄ 该产品不可与液控和热控即热式热水器连接使用. 备用零件 (参见第页 14) 技术参数 XX ...
- Page 3 问题 原因 补救 ⁄ 龙头出水量小 ⁄ 水压不足 ⁄ 检查总水压 ⁄ 调压器过滤网脏污 ⁄ 清洁龙头前面和恒温阀芯的过滤网 参见第页 ⁄ 花洒滤网有垃圾堵塞 ⁄ 清洗花洒和软管间的过滤网 ⁄ 花洒过滤器元件有垃圾堵塞 ⁄ 清洗花洒和软管间的过滤密封件 ⁄ 单向阀有垃圾堵塞或漏水 ⁄ 串水 ⁄ 清洗单向阀 在龙头关闭的状态下 热水被 如有必要则更换新的 强迫流入冷水管路 或者相反 ⁄ 龙头出水温度和温度设定的不符 ⁄ 恒温阀芯未被调节 ⁄ 调节恒温器...
- Page 4 S A F E T Y N O T E S A D J U S T M E N T (see page 08) Gloves should be worn during installation to prevent After the installation, the output temperature of crushing and cutting injuries. the thermostat must be checked. A correction is The product may only be used for bathing, hygienic necessary if the temperature measured at the and body cleaning purposes. output differs from the temperature set on the thermostat. Children as well as adults with physical, mental and ⁄or sensoric impairments must not use this product without M A I N T E N A N C E (see page 10) proper supervision. Persons under the influence of ⁄ The check valves must be checked regularly alcohol or drugs are prohibited from using this product.
- Page 5 F A U L T C A U S E R E M E D Y ⁄ Insufficient water ⁄ Supply pressure inadequate ⁄ Check water pressure (If a pump has been installed check to see if the pump is working). ⁄ Regulator filter dirty ⁄ Clean filter in front of the mixer and on the BTC-thermo cartridge (see page 10) ⁄ Shower filter seal dirty ⁄ Clean filter seal between shower and hose ⁄ filter insert shower dirty ⁄ Clean filter insert between shower and hose ⁄ Crossflow, hot water being forced into ⁄ Backflow preventers dirty or leaking ⁄ Clean backflow preventers, exchange if cold water pipe, or vice versa, when...
- Page 6 1 - 2 m 01800187 SW 5 mm Armaturenfett Grease 滑油 SW 4 mm (5 Nm) 1 - X + 2 m 1 1...
- Page 7 (0,1 Nm) SW 3 mm (2 Nm) SW 3 mm (2 Nm) SW 2 mm (2 Nm)
- Page 8 SW 2 mm (2 Nm) SW 2 mm SW 3 mm SW 2 mm...
- Page 9 z. B. 42° C for example 42° C SW 2 mm (2 Nm)
- Page 10 SW 2 mm SW 4 mm SW 24 mm...
- Page 11 红色 ⁄ red SW 24 mm SW 4 mm (5 Nm) SW 3 mm (2 Nm) SW 3 mm (2 Nm) SW 2 mm (2 Nm)
- Page 12 ⁄ ⁄ ⁄ ⁄ ⁄ ⁄ AXOR ⁄ , AXOR www.hansgrohe-int.com/guarantee. ⁄ ⁄ Q U I C K C L E A N QuickClean, ⁄ ⁄...
- Page 13 ⁄ When using spray cleaners, spray the cleaning solution onto a soft cloth or sponge, never directly onto the Axor Q U I C K C L E A N products, as the atomised spray could enter openings The QuickClean cleaning function only needs a small and gaps in the Axor products and cause damage.
- Page 14 A XOR ShowerSelect HighFlow softsquare 36711XX7 98513000 97350000 96525000 (M5x20) 96633000 98148000 (43x1,5) 98793000 93444000 (Ø 145 mm) 98133000 (16x2) 98147000 95331XX0 (26x2) 92535XX0 98383000 98174000 (34x2) (48x5) 98198000 (38x2,5) 96454000 96636000 (M5x55) 97334000 92534XX0 A XOR ShowerSelect HighFlow square 98701000 36718XX7 97663000 98513000 (M4x16) 97350000 96525000 (M5x20) 96633000 98148000 (43x1,5)
- Page 15 A XOR Montreux HighFlow 16815XX7 98513000 97350000 96525000 98148000 96633000 (43x1,5) 93444000 96447000 (Ø 165 mm) 98133000 (16x2) 98147000 98383000 97439XX0 (26x2) (34x2) 98648XX0 98198000 (38x2,5) 96636000 96454000 16594XX0 95508000 97792000 (48x3) 96435000 97666000 (M5x16) 97987000...
- Page 16 13595000 (25 mm) > 10 8 > 108 14960XX0 14971XX0 14964XX0 A XOR Montreux A XOR ShowerSelect A XOR ShowerSelect (33 mm) softsquare square (33 mm) (33 mm) 63 mm - 80 mm 13596XX0 98860XX0 97407XX0 A XOR Montreux A XOR ShowerSelect A XOR ShowerSelect (22 mm) softsquare square (22 mm) (22 mm) 52 mm - 63 mm...
- Page 17 A XOR ShowerSelect HighFlow softsquare A XOR ShowerSelect HighFlow square A XOR Montreux HighFlow 36711XX7 36718XX7 16815XX7 74 - 102 74-102 0,60 0,55 0,50 0,45 0,40 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 24 30 36 42 48 54 60 Q = l/min Q = l/sec >40 °C...
- Page 20 A XOR ⁄ Hansgrohe SE Auestraße 5–9 77761 Schiltach Deutschland info@axor-design.com axor-design.com...
