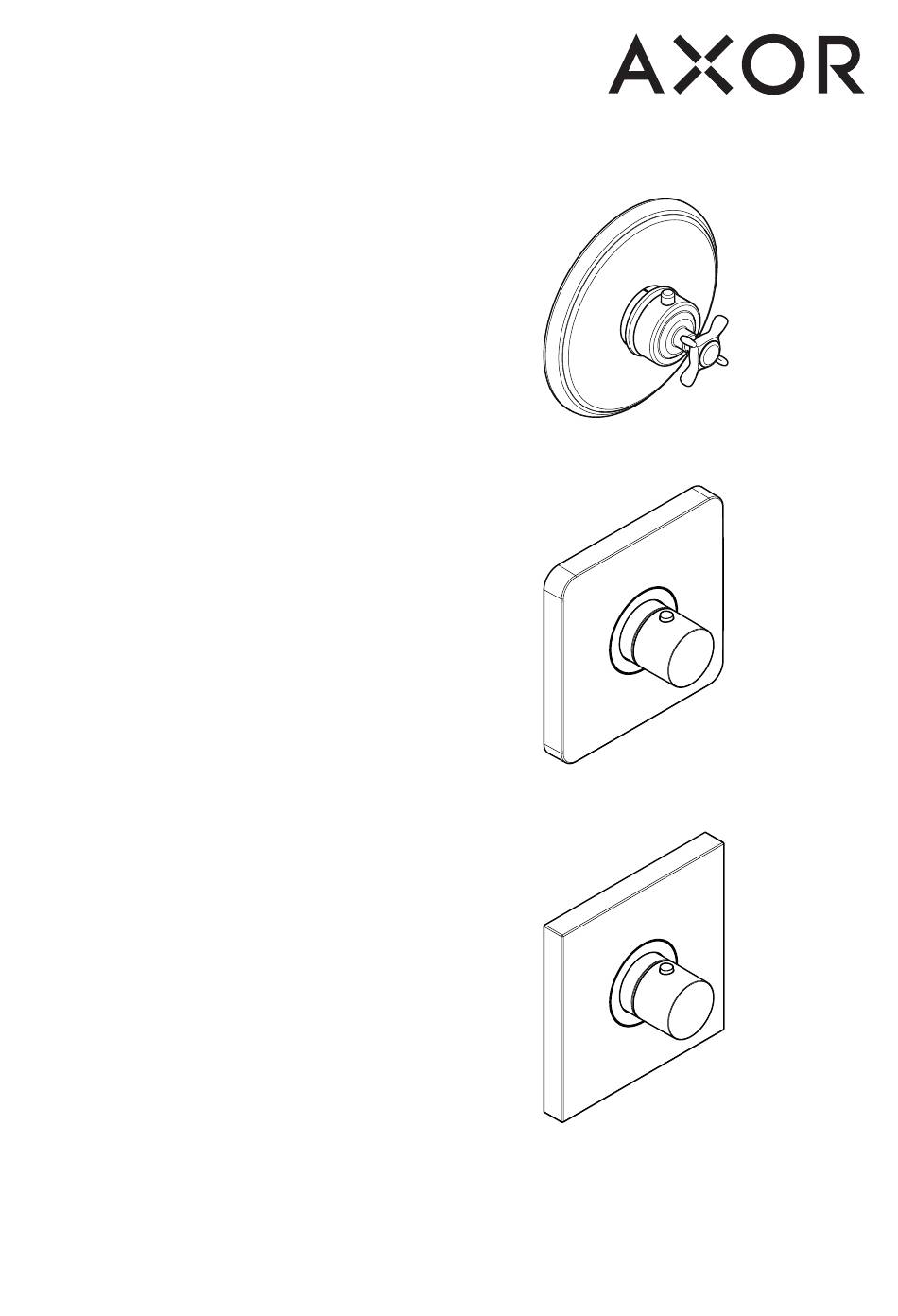

- Page 1 A XOR Montreux 16815007 A XOR Shower Select Soft Cube 36711007 Z H ⁄ 用户手册 ⁄ 组装说明 A XOR Shower Select Square E N ⁄ Instructions for use ⁄ assembly instructions 36718007 I N S T A L L A T I O N...
- Page 2 安全技巧 大小 (参见第页 17) 装配时为避免挤压和切割受伤，必须戴上手套。 流量示意图 (参见第页 17) 本产品只允许作为洗浴、卫生和洁身之用。 时的流速 不得让儿童和肢体、精神和⁄或意识有障碍的成人 清洗 (参见第页 12) 在不受监管的情况下使用淋浴系统。受酒精或毒 品影响的人员不得使用淋浴系统。 备用零件 (参见第页 14) 冷热水管间过大的压力差必须予以平衡。 选装附件 (参见第页 16) 安装提示 不在供货范围内 ⁄ 安装前必须检查产品是否受到运输损害。 安装后 ⁄ 加长 25 mm #13595000 将不认可运输损害或表面损伤。 ⁄ 加长件22mm (墙壁不够深时) #98860000, ⁄ 管道和阀门必须根据通用标准进行安装、冲洗和 #97407000, 13596000 检查。 ⁄ 请遵守当地国家现行的安装规定。 ⁄ 加长件33mm (墙壁不够深时) #14971000, ⁄ 该产品不可与液控和热控即热式热水器连接使 #14964000, 14960000 用。 操作 (参见第页 17) 技术参数...
- Page 3 问题 原因 补救 ⁄ 龙头出水量小 ⁄ 水压不足 ⁄ 检查总水压 ⁄ 调压器过滤网脏污 ⁄ 清洁龙头前面和恒温阀芯的过滤 网。 参见第页 ⁄ 花洒滤网有垃圾堵塞 ⁄ 清洗花洒和软管间的过滤网 ⁄ 花洒过滤器元件有垃圾堵塞 ⁄ 清洗花洒和软管间的过滤密封件 ⁄ 串水，在龙头关闭的状态下，热水 ⁄ 单向阀有垃圾堵塞或漏水 ⁄ 清洗单向阀，如有必要则更换新的 被强迫流入冷水管路，或者相反。 ⁄ 龙头出水温度和温度设定的不符 ⁄ 恒温阀芯未被调节 ⁄ 调节恒温器 ⁄ 热水温度过低 ⁄ 将热水温度从...
- Page 4 S A F E T Y N O T E S M A I N T E N A N C E (see page 10) Gloves should be worn during installation to prevent ⁄ The check valves must be checked regularly crushing and cutting injuries. according to EN 806-5 in accordance with The product may only be used for bathing, hygienic national or regional regulations (at least once and body cleaning purposes. a year). ⁄ To guarantee the smooth running of the Children as well as adults with physical, mental and ⁄or thermostat, it is necessary from time to time to sensoric impairments must not use this product without turn the thermostat from total hot to total cold.
- Page 5 F A U L T C A U S E R E M E D Y ⁄ Insufficient water ⁄ Supply pressure inadequate ⁄ Check water pressure (If a pump has been installed check to see if the pump is working). ⁄ Regulator filter dirty ⁄ Clean filter in front of the mixer and on the MTC-thermo cartridge ( see page ⁄ Shower filter seal dirty ⁄ Clean filter seal between shower and hose ⁄ filter insert shower dirty ⁄ Clean filter insert between shower and hose ⁄ Crossflow, hot water being forced into ⁄ Backflow preventers dirty or leaking ⁄ Clean backflow preventers, exchange cold water pipe, or vice versa, when...
- Page 6 1 - 2 m 01800187 SW 5 mm Armaturenfett Grease 滑油 SW 4 mm (5 Nm) 1 - X + 2 m 1 1...
- Page 7 (0,1 Nm) SW 3 mm (2 Nm) Armaturenfett Grease 滑油 SW 3 mm (2 Nm) SW 2 mm (2 Nm)
- Page 8 SW 2 mm (2 Nm) SW 2 mm SW 3 mm SW 2 mm...
- Page 9 z. B. 42° C for example 42° C SW 2 mm (2 Nm)
- Page 10 SW 2 mm SW 4 mm SW 24 mm...
- Page 11 SW 24 mm 红色 ⁄ red SW 4 mm (5 Nm) SW 3 mm (2 Nm) SW 3 mm (2 Nm) SW 2 mm (2 Nm)
- Page 12 ⁄ ⁄ ⁄ ⁄ ⁄ Hansgrohe Hansgrohe ⁄ www.hansgrohe-int.com/guarantee ⁄ ⁄ ⁄ Q U I C K C L E A N QuickClean ⁄ ⁄...
- Page 13 C L E A N I N G R E C O M M E N D A T I O N F O R ⁄ After cleaning rinse thoroughly with clean water to H A N S G R O H E P R O D U C T S remove any cleaner residue.
- Page 14 A XOR Shower Select Soft Cube 36711007 98513000 97350000 96525000 (M5x20) 96633000 98148000 (43x1,5) 98793000 93444000 (Ø 145 mm) 98133000 (16x2) 98147000 95331000 (26x2) 92535000 98383000 98174000 (34x2) (48x5) 98198000 (38x2,5) 96454000 96636000 (M5x55) 97334000 92534000 A XOR Shower Select Square 98701000 36718007 97663000 98513000 (M4x16) 97350000 96525000 (M5x20) 96633000 98148000 (43x1,5)
- Page 15 A XOR Montreux 16815007 98513000 97350000 96525000 98148000 96633000 (43x1,5) 93444000 96447000 (Ø 165 mm) 98133000 (16x2) 98147000 98383000 97439000 (26x2) (34x2) 98648000 98198000 (38x2,5) 96636000 96454000 16594000 95508000 97792000 (48x3) 96435000 97666000 (M5x16) 97987000...
- Page 16 13595000 (25 mm) > 108 > 10 8 14960000 14971000 14964000 A XOR Montreux A XOR ShowerSelect A XOR ShowerSelect (33 mm) Soft Cube Square (33 mm) (33 mm) 63 mm - 80 mm 13596000 98860000 97407000 A XOR Montreux A XOR ShowerSelect A XOR ShowerSelect (22 mm) Soft Cube Square (22 mm) (22 mm) 52 mm - 63 mm...
- Page 17 A XOR ShowerSelect Soft Cube A XOR Shower Select Square A XOR Montreux 36711007 36718007 16815007 74 - 102 74-102 0,60 0,55 0,50 0,45 0,40 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 24 30 36 42 48 54 60 Q = l/min Q = l/sec >40 °C...
- Page 20 A XOR ⁄ Hansgrohe SE Auestraße 5–9 77761 Schiltach Deutschland info@axor-design.com axor-design.com...
