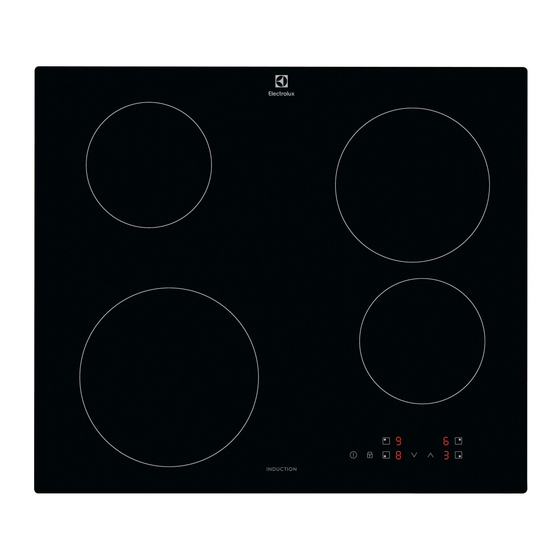

- Page 1 User Manual HOI624S electrolux.com/register...
-
Page 2: Table Of Contents
WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. - Page 3 installation or usage. Always keep the instructions in a safe and accessible location for future reference. 1.1 Children and vulnerable people safety This appliance can be used by children aged from 8 years • and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the...
- Page 4 WARNING: Unattended cooking on a hob with fat or oil can • be dangerous and may result in fire. Never use water to extinguish the cooking fire. Switch off • the appliance and cover flames with e.g. a fire blanket or lid. WARNING: The appliance must not be supplied through an •...
-
Page 5: Safety Instructions
2. SAFETY INSTRUCTIONS 2.1 Installation • The appliance must be earthed if the symbol ( ) is not printed on the rating WARNING! plate. Only a qualified person must • Before carrying out any operation make install this appliance. sure that the appliance is disconnected from the power supply. - Page 6 The isolation device must have a contact WARNING! opening width of minimum 3 mm. Risk of damage to the appliance. 2.3 Use • Do not keep hot cookware on the control panel. WARNING! • Do not put a hot pan cover on the glass Risk of injury, burns and electric surface of the hob.
-
Page 7: Installation
2.6 Disposal • Disconnect the appliance from the mains supply. • Cut off the mains electrical cable close to WARNING! the appliance and dispose of it. Risk of injury or suffocation. • Contact your local authority for information on how to dispose of the appliance. -
Page 8: Product Description
500mm 50mm Find the video tutorial "How to install your Electrolux Induction Hob - Worktop installation" by typing out the full name If the appliance is installed above a drawer, indicated in the graphic below. the hob ventilation can warm up the items stored in the drawer during the cooking process. -
Page 9: Daily Use
4.2 Control panel layout Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate. Sensor Function Comment field On / Off To activate and deactivate the hob. Lock / Child Safety Device To lock / unlock the control panel. To select the cooking zone. - Page 10 5.2 Automatic Switch Off 5.5 Residual heat indicator The function deactivates the hob WARNING! automatically if: As long as the indicator is on, • all cooking zones are deactivated, there is a risk of burns from • you do not set the heat setting after you residual heat.
-
Page 11: Hints And Tips
front right zone. Touch sensor field for the To activate the function: touch comes on for 4 seconds. right rear zone to choose one of the following: To deactivate the function: touch . The • - the sounds are off previous heat setting comes on. - Page 12 • The bottom of the cookware must be as functioning of the control panel or thick and flat as possible. accidentally activate hob functions. • Ensure pan bases are clean and dry Refer to "Technical data". before placing on the hob surface. •...
-
Page 13: Care And Cleaning
Heat setting Use to: Time Hints (min) 4 - 5 Steam potatoes and other vegetables. 20 - 60 Cover the bottom of the pot with 1-2 cm of water. Check the water level during the process. Keep the lid on the pot. - Page 14 8.1 What to do if... Problem Possible cause Remedy You cannot activate or operate The hob is not connected to an elec‐ Check if the hob is correctly connected the hob. trical supply or it is connected incor‐ to the electrical supply. rectly.
-
Page 15: Technical Data
Centres are in the guarantee booklet. corner of the glass surface) and an error 9. TECHNICAL DATA 9.1 Rating plate Model HOI624S PNC 949 492 542 00 Typ 64 B4A 00 AA 220 - 240 V / 400 V 2N, 50 / 60 Hz Induction 6.9 kW... -
Page 16: Energy Efficiency
10. ENERGY EFFICIENCY 10.1 Product Information Model identification HOI624S Type of hob Built-In Hob Number of cooking zones Heating technology Induction Diameter of circular cooking zones (Ø) Left front 21.0 cm Left rear 14.5 cm Right front 14.5 cm Right rear 18.0 cm... - Page 20 electrolux.com...
