Summary of Contents for GiBiDi ART

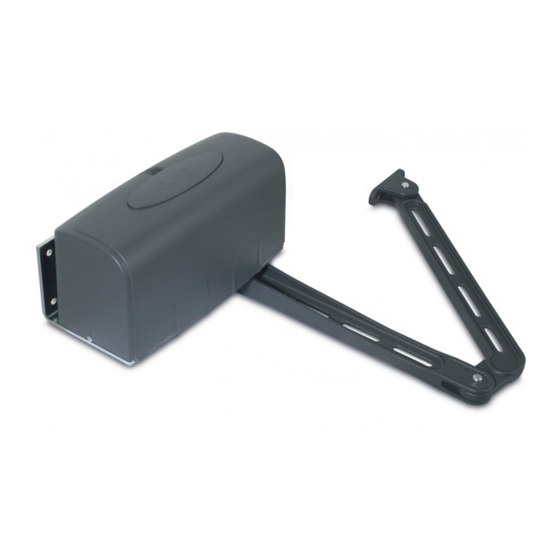

- Page 1 Electromechanical operator ART (5000 - 5012 - 5024) INSTRUCTIONS FOR INSTALLATION...
-
Page 3: Electrical Connections
ELECTRICAL CONNECTIONS ART5000 ART5012 ART5024 12 Vdc ALIMENTATION/POWER SUPPLY 24 Vdc 220/230 V-50Hz 200 W 70 W ABDORBED POWER 100 W ABDORBED CURRENT 140° MOTOR OVERLOAD CAPACITOR 10 µF 5,6 °/sec MAX. ANGULAR SPEED 7,8 °/sec 7,6 °/sec 17 s 18 s TIME TO OPEN UP TO 90°... -
Page 4: Preliminary Warnings
PRELIMINARY WARNINGS 1 Sensitive frame. 2 Electronic equipment container. 3 Operators. ART5000: cable with 7 conductors of 1.5 mm². ART5012, ART5024: cable with 5 conductors of 1.5 mm² for distances max.3m from the control unit; for bigger distances cable of 2.5mm² (max.6m). In both cases 3 conductors are used for the limit switch connection. - Page 6 INSTALLATION QUOTAS FIG.1 APPLICATION OF THE OPERATOR FOR MAX. 90° WING OPENING 5/6° 5/6° APPLICATION OF THE OPERATOR FOR OVER 90° FIG.2...
-
Page 7: Installation Of The Operators
INSTALLATION OF THE OPERATORS... - Page 8 LIMIT SWITCH ADJUSTMENT 1 Closing limit switch with operator installed on the right; opening limit switch with operator installed on the left. 2 Device for limit switch (1) adjustment. 3 Opening limit switch with operator installed on the right; closing limit switch with operator installed on the left. 4 Device for limit switch (3) adjustment.
- Page 9 ELECTRICAL CONNECTIONS ART5000 BROWN BLUE BLACK WHITE MOTOR BROWN BLUE BLUE TERMINAL BLOCK (FCA) (FCC) CONTRO L BOARD ART5012 BLACK MOTOR TERMINAL BLOCK CONTRO L BOARD ART5024 CONTRO L BOARD (FCC) (FCA) TERMINAL BLOCK BROWN BLUE MOTOR BROWN BLUE BLACK...
- Page 10 ELECTRICAL CONNECTIONS ART5000 (230Vac) 1 Common Opening limit switch 2 Opening limit switch; closing limit switch with operator installed on the left. 3 Common Closing limit switch 4 Closing limit switch; opening limit switch with operator installed on the left. 5-6-7 230V motor power supply;...
-
Page 11: Manual Operation
MANUAL OPERATION DEVICE FOR MANUAL OPERATION Remove the lock cover (2) which allows inserting the key (1) to unlock the operator. Turn the key (1) clockwise until it stops without forcing it and carry out the manual operation. To reset, turn the key (1) anticlockwise until it stops without forcing it. - Page 12 ELECTROLOCK MOUNTING THE ELECTROLOCK 1 Electrolock 2 electrolock fixing plate 3 Bolt hooker 4 Bolt hooking rabbet 5 Bolt 6 Key cylinder (on request) 7 Gate...
- Page 13 CE Declaration of conformity The manufacturer: GI.BI.DI. S.r.l. Via Abetone Brennero, 177/B, 46025 Poggio Rusco (MN) ITALY Declares that the products: Electromechanical operators: ART5000, ART5012, ART5024 Are in conformity with the following CEE Directives: • LVD Directive 2006/95/CE and subsequent amendments; •...
- Page 14 NOTE...
- Page 15 NOTE...
- Page 16 NOTE...
- Page 17 GI.BI.DI. S.r.l. Via Abetone Brennero, 177/B 46025 Poggio Rusco (MN) - ITALY Tel. +39.0386.52.20.11 Fax +39.0386.52.20.31 E-mail: comm@gibidi.com Numero Verde: 800.290156 w w w . g i b i d i . c o m...
