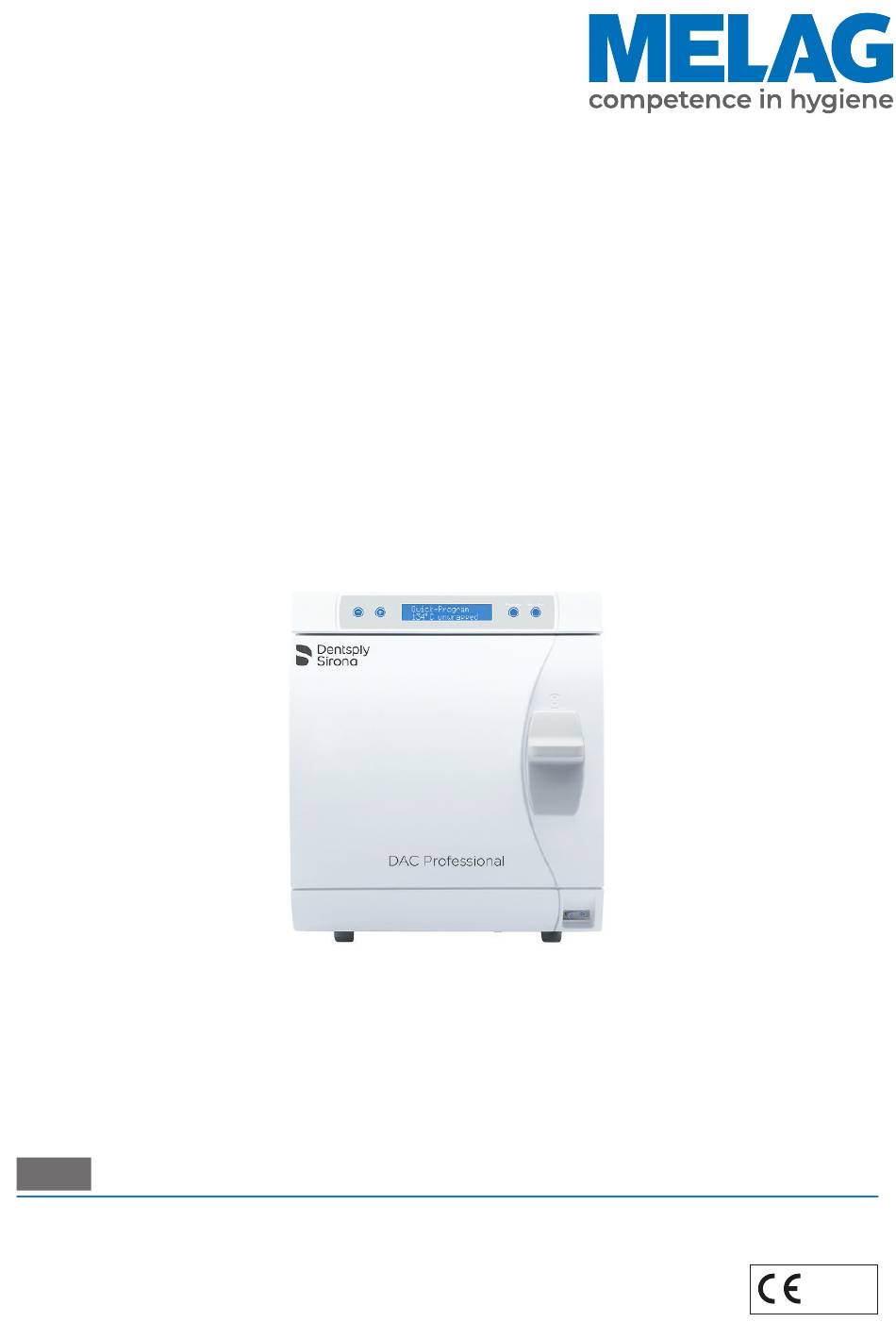

Technical Manual
DAC Professional
Steam sterilizer
from software version 5.21
EN
Read this manual carefully and in the correct order before setting up and commissioning the device. The instructions
include important safety information. You also receive a user manual with the device. Please store this manual and the
user manual carefully and in close proximity to the device. They represent a component of the product.
0197
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MELAG DAC Professional
Summary of Contents for MELAG DAC Professional

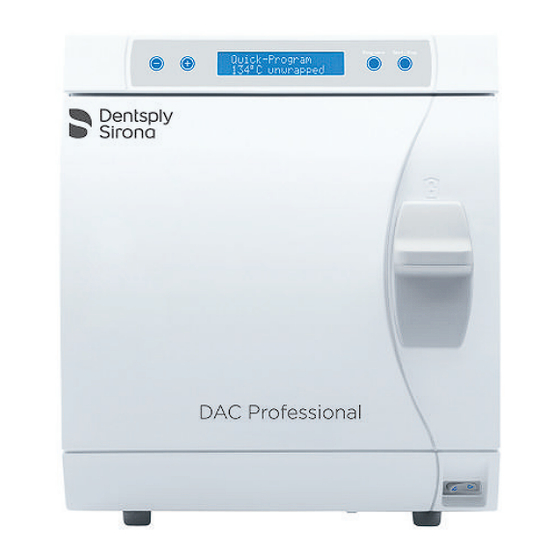

- Page 1 Technical Manual DAC Professional Steam sterilizer from software version 5.21 Read this manual carefully and in the correct order before setting up and commissioning the device. The instructions include important safety information. You also receive a user manual with the device. Please store this manual and the user manual carefully and in close proximity to the device.
-
Page 3: Table Of Contents
Contents Contents 1 General guidelines ................................ 4 Symbols used .................................. 4 Formatting rules................................... 4 2 Installation requirements.............................. 5 Installation location ................................ 5 Electromagnetic environments ............................ 5 Space requirements................................ 6 On-site requirements ................................ 7 System and network safety.............................. 9 3 Setup and installation ................................ 11 Removing from the packaging ............................ 11 Aligning the door seal sealing lips ............................. 11 Installation examples ................................. 13 Aligning the steam sterilizer............................... 16 Test runs.................................... 16... -
Page 4: General Guidelines
1 General guidelines 1 General guidelines Should the manual no longer be legible, is damaged or has been lost, you can download a new copy from MELAG download centre at www.melag.com. Symbols used Symbol Description Indicates a dangerous situation, which if not avoided, could entail slight to life-threaten- ing injuries. -
Page 5: Installation Requirements
The steam sterilizer should only be setup, installed and commissioned by persons authorised by MELAG. The steam sterilizer is not suitable for operation in explosive atmospheres. The steam sterilizer is conceived for use outside the patient care area. The device should be located a minimum of 1.5 m radius away from the treatment area. -
Page 6: Space Requirements
2 Installation requirements Space requirements Fig. 1: View from the front, the right and above Dimensions Width 42.5 cm Height 49 cm Depth, total 62 cm Clearance between the device feet 37 cm Clearance from rear device foot up to the rear panel 8 cm Min. -
Page 7: On-Site Requirements
2 Installation requirements The steam sterilizer works with a cooler on the rear of the device. The function and life-span of the steam sterilizer can be compromised if heat dissipation via the cooler is restricted in any way. The steam sterilizer may only be installed if sufficient air circulation can be guaranteed. - Page 8 Water stop For insurance reasons, MELAG recommends the installation of a water stop with a cut-off valve (e.g. from MELAG), as the MELAdem 40/MELAdem 47 are under constant hydraulic pressure from the domestic water supply. PLEASE NOTE Fit the outlet hose at a constant decline without kinks or sagging. In case of deviations to the installation arrangements, consult with MELAG.
-
Page 9: System And Network Safety
NOTICE When performing a device software update, use only the update data authorised by MELAG for the corresponding device type. Operating the device with memory media To prevent data loss, only use memory media to save the log data with the following characteristics: functional (without malware, etc.) - Page 10 2 Installation requirements Network bandwidth / Quality of Service (QoS) The device does not place any requirements on the LAN bandwidth for data transfer, that exceed the standard time-out times of the respective logs. Process Volume max. Volume normal Transfer status, program, standby log 2 kB 1.9 kB Graphic log...
-
Page 11: Setup And Installation
WARNING Improper installation may lead to a short-circuit, fire, water damage or electrical shock. This could result in serious injury. Only have the device set up, installed and commissioned by people authorised by MELAG. Removing from the packaging CAUTION Danger of injury from incorrect carrying. - Page 12 3 Setup and installation Press your thumb between the two sealing lips and separate the sealing lips once around with your thumb. PLEASE NOTE Note the differences in the widths of the sealing surfaces when inserting the door seal. The door can only be shut correctly and the sterilization chamber sealed, if the door seal sits correctly in the groove.
-
Page 13: Installation Examples
The following pages provide examples for the recommended installation types for the feed water supply. The connection of a different water treatment unit producing the same water quality is possible after consultation with MELAG. Example 1 – feed water supply from the internal storage tank (delivery state) Direct feed water supply from the internal storage tank without an additional water connection. - Page 14 3 Setup and installation Example 2 – feed water supply from the MELAdem 40 ion exchanger The wastewater is collected in the left-hand side chamber of the internal storage tank and is to be emptied manually. In addition, the wastewater can be automatically discharged via the one-way drain (see Example 3 –...
- Page 15 3 Setup and installation Attaching the safety combination in accordance with EN 1717 Unscrew the back panel of the steam sterilizer. Mount the safety combination (art. no. ME82375). Connect the water inflow hose to the upper connection of the safety combination. Connect the MELAdem 40 cold water adapter (art.
-
Page 16: Aligning The Steam Sterilizer
3 Setup and installation Pos. Description Art. no. Note 5.3 Pressure tank MELAdem 47 (with shut-off valve and ME57065 included in ME01047 hose) 5.4 Water inlet hose (2.5 m) (inlet hose MELAdem 47) ME37220 included in ME01047 5.5 MELAdem 47 reverse osmosis unit (without accesso- ME56740 included in ME01047 ries) -
Page 17: Settings And Adjustment
4 Settings and adjustment 4 Settings and adjustment Settings on the device Date and time Check the date and time and set if necessary, see User manual. Feed water inlet The feed water supply is effected either via the internal storage tank or via a separate water treatment unit (e.g. -
Page 18: Technical Tables
5 Technical tables 5 Technical tables Feed water quality Minimum requirements to the feed water following EN 13060, Appendix C Substance/property Feed water Evaporation residue ≤ 10 mg/l Silicon oxide, SiO ≤ 1 mg/l Iron ≤ 0.2 mg/l Cadmium ≤ 0.005 mg/l Lead ≤ 0.05 mg/l Traces of heavy metal apart ≤ 0.1 mg/l from iron, cadmium, lead Chloride... -
Page 19: Empty Chamber Test
5 Technical tables Empty chamber test The coldest point in the sterilization chamber during the empty chamber test lies directly on the temperature sensor (see circular marking in the following figure). The temperature in the rest of the sterilization chamber is almost the same all over. Schematic side and fore view of the sterilization chamber Pressure-time charts Universal-Program... - Page 20 5 Technical tables Quick-Program S 134 °C/2.1 bar Pressure (mbar) 3170 Fig. 3: Pressure-time chart for the Quick-Program S, 134 °C and 2.1 bar Quick-Program B 134 °C/2,1 bar Pressure (mbar) 3170 Fig. 4: Pressure-time chart for the Quick-Program B, 134 °C and 2.1 bar...
- Page 21 5 Technical tables Gentle-Program 121 °C/1.1 bar Pressure (mbar) 2170 Fig. 5: Pressure-time chart for the Gentle-Program, 121 °C and 1.1 bar Prion-Program 134 °C/2.1 bar Pressure (mbar) 3170 Fig. 6: Pressure-time chart for the Prion-Program, 134 °C and 2.1 bar...
- Page 22 Certificate of Suitability According to the recommendations of the Commission for Hospital Hygiene and Infection Prevention at the Robert Koch Institute Manufacturer: MELAG Medizintechnik GmbH & Co. KG Address: Geneststraße 6-10 10829 Berlin Country: Germany Product: DAC Professional Type of device:...
- Page 24 MELAG Medizintechnik GmbH & Co. KG Geneststraße 6-10 10829 Berlin Germany Email: info@melag.com Web: www.melag.com Original instructions Responsible for content: MELAG Medizintechnik GmbH & Co. KG We reserve the right to technical alterations Your stockist...
