M48 Tank

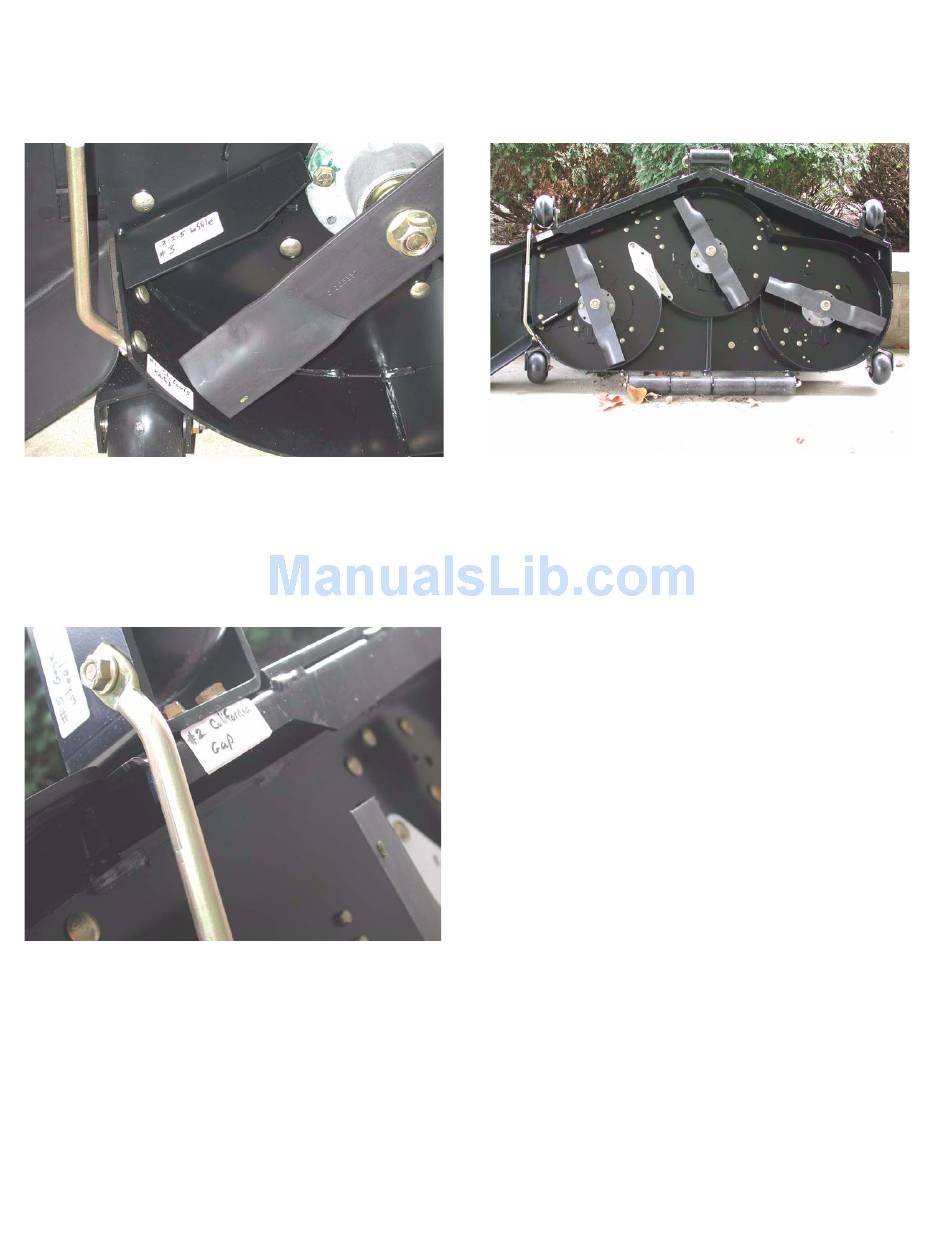

9.15. A guiding baffle near the rear of the opening
helps direct the clippings out from under the
deck. See Figure 9.15.
Figure 9.15
9.16. The addition of a "California Gap" at the leading
edge also improves airflow, and products the
internal shape of the deck from damage if some-
thing is hit hard enough to bend the reinforced
leading edge. See Figure 9.16.
Figure 9.16
9.17. The under-deck baffling has been reinforced,
and a "stealth baffle" has been added between
the second and third blades. See Figure 9.17.
22
Figure 9.17
