Cub Cadet 19A30041100 Installation Manual

50-inch XTREME Mulch Kit — 19A30041100
Model 19A30041100 mulch kit is designed
for use with select 50-inch triple-blade
stamped cutting decks. Refer to your
tractor's Operator's Manual to assure
compatibility.

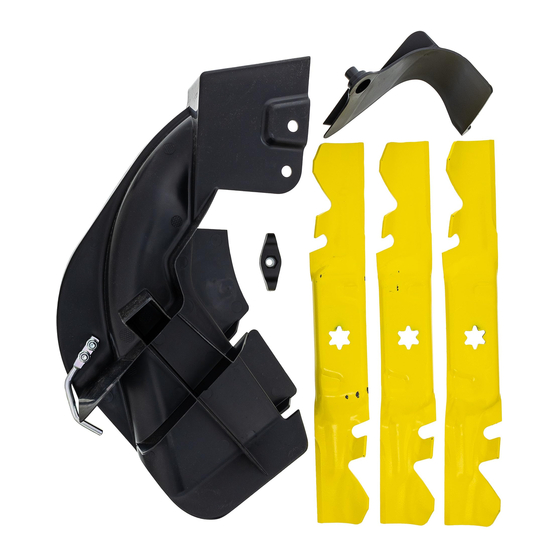

Carton Contents
Before beginning installation, remove
all parts from the carton to make sure
everything is present. Carton contents are
listed below and shown in Figure 1-1. Part
numbers are shown in parentheses.
• Three Mulching Blades (942-05052-
X)
• One 50" Deck Mulch Plug Assembly
(631-05178)
• One Wing Knob (720-04122)
• One Chute Adapter (731-10133)

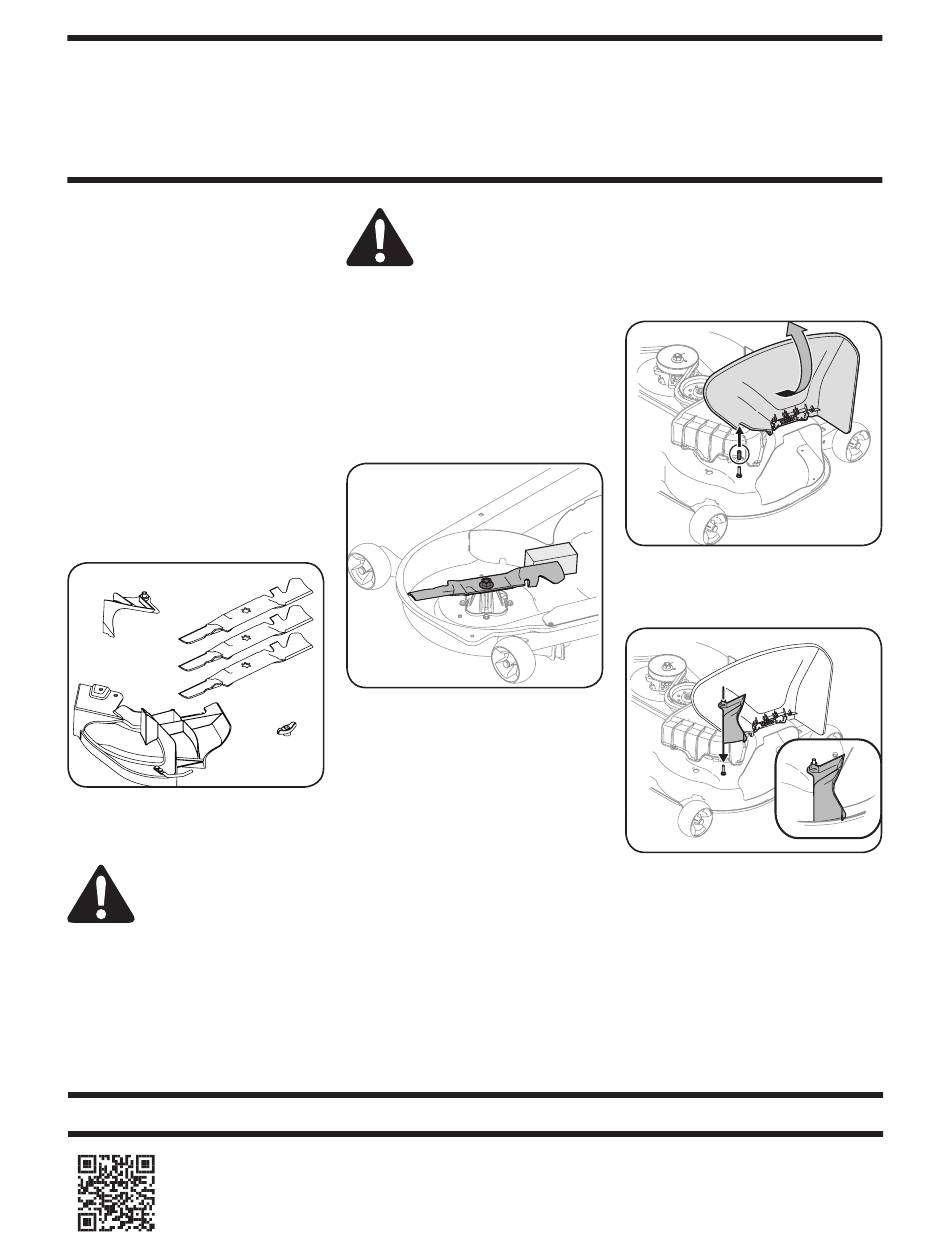

Figure 1-1
Blade Installation
WARNING:
Before
beginning installation, place
the tractor on a firm and level
surface, set the parking
brake, place the PTO in the
disengaged (OFF) position,
stop the tractor's motor and
remove the ignition key to
prevent unintended starting.
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
I
nstallatIon
WARNING:
are sharp. Always protect
hands by wearing heavy
leather work gloves to grasp
blades.
1. Remove the cutting deck from
beneath the tractor as instructed in
your tractor's Operator's Manual.
2. Gently flip the deck over to expose
its underside.
3. Stablize one of the cutting blades
with a blade lock tool or a block of
wood. See Figure 1-2.
4. Remove the hex flange nut that
secures the blade to the spindle.
IMPORTANT:
a right-handed (normal) thread pattern.
Do NOT attempt to force the nuts in the
opposite direction. Doing so may damage
the nuts.
5. Repeat steps 2 and 3 on the other
cutting blades.
6. Replace the blades with the blades
included in the kit. Be sure to install
each blade with the side marked
''Bottom'' (or with a part number
stamped in it) facing the ground
when the mower is in the operating
position.
IMPORTANT:
tighten each blade spindle's hex flange
nut to between 80 ft-lb and 100 ft-lb.
M
anual
Cutting blades
Figure 1-2
The hex flange nuts have
Use a torque wrench to
Installing the Mulch Plug
1. Pivot the chute deflector upward
and remove the protective cover
from the pin found on the deck's
surface. See Figure 1-3.
Figure 1-3
2. Position the chute adapter over the
pin. See Figure 1-4.
Figure 1-4
Form No. 769-12524
September 25, 2017
