Cub cadet twin rear bagger kit operator's manual

Advertisement

IMPORTANT: Read safety rules and instructions carefully
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered,
brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state
laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the
above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply
on federal lands. A spark arrester for the muffler is available through your Cub Cadet dealer or contact the service department, P.O. Box
361131 Cleveland, Ohio 44136-0019.
PRINTED IN U.S.A.
Operator's Manual
Cub Cadet LLC., P.O. Box 361131, Cleveland, Ohio 44136-0019

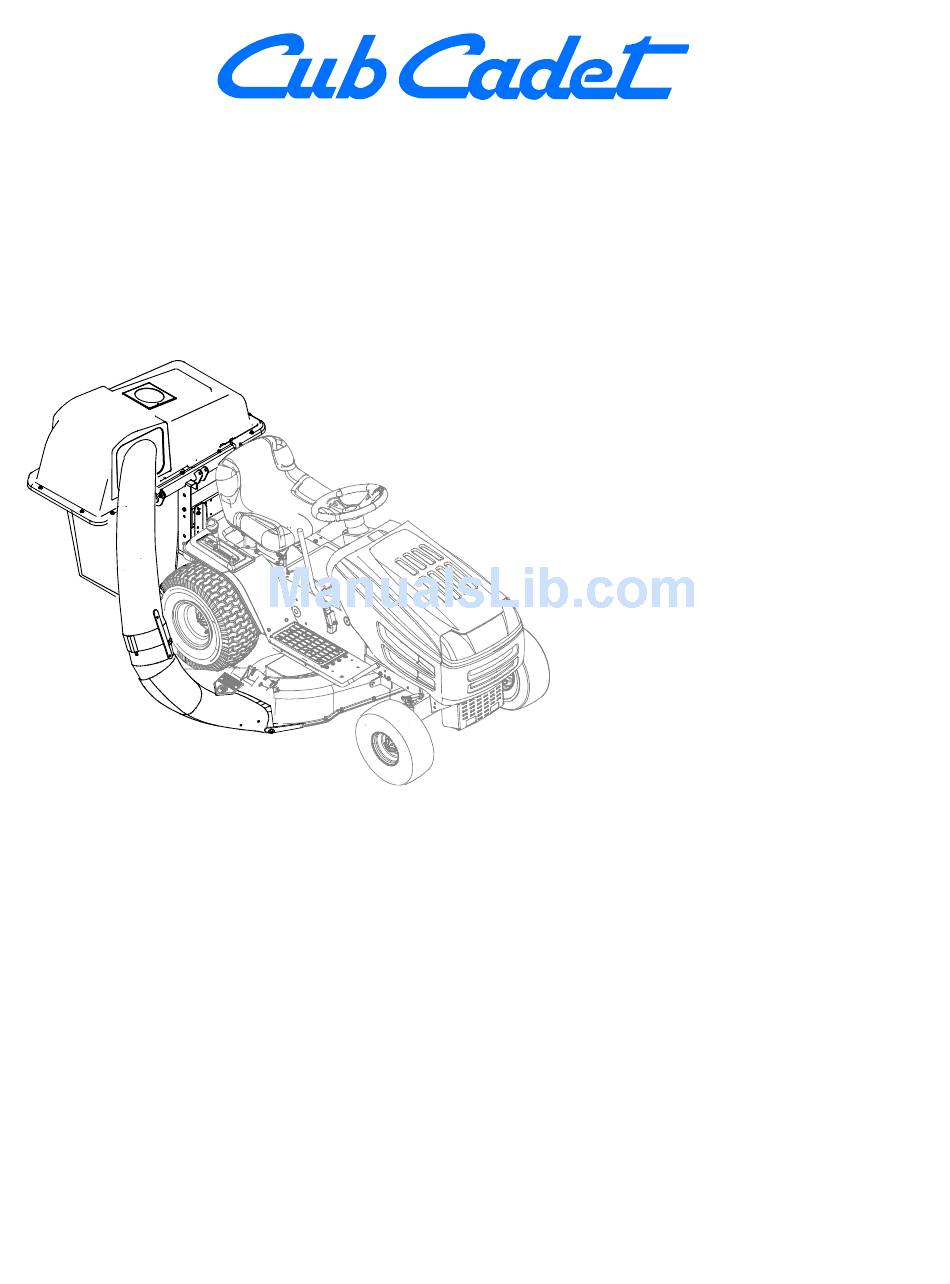

Twin Rear Bagger Kit
Models
190-670-100
and
190-678-100
FORM NO. 769-00657
(1/2003)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 190- 670-100, 190-678-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cub Cadet 190- 670-100, 190-678-100

  • Page 1 (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your Cub Cadet dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
  • Page 2: Table Of Contents

    For more details about your unit, visit our website at www.cubcadet.com TABLE OF CONTENTS FINDING MODEL NUMBER www.cubcadet.com DEALER LOCATOR PHONE NUMBER: 877-282-8684 Copy the model number here: Copy the serial number here: CALLING CUSTOMER SUPPORT Page CUB CADET LLC P. O. BOX 361131 CLEVELAND, OH 44136...
  • Page 3: Section 1: Important Safe Operation Practices

    SECTION 1: IMPORTANT SAFE OPERATION PRACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.
  • Page 4 27. Use only accessories and attachments approved for this machine by the machine manufacturer. Read, understand and follow all instructions provided with the accessory or attachment. 28. Data indicates that operators, age 60 years and above, are involved in a large percentage of tractor-related injuries.
  • Page 5: Your Responsibility

    Models 190-670 and 190-678 Twin Rear Bagger Kits are grass collection systems designed IMPORTANT: for use on Cub Cadet Lawn Tractors equipped with 38-inch/42-inch cutting deck and 46-inch cutting deck respectively. These will NOT mount, nor operate safely or properly, on any other tractor regardless of the tractor’s compatibility with similar accessories.
  • Page 6: Section 2: Loose Parts

    SECTION 2: LOOSE PARTS The grass catcher kit is shipped with following loose parts in the carton. Please remove all loose parts from the carton before discarding it. Compare with Figure 1 to check that no parts are missingfrom the kit or have been misplaced during unpacking.
  • Page 7: Section 3: Assembly & Operation

    SECTION 3: ASSEMBLY & OPERATION NOTE: References to LEFT, RIGHT , FRONT and REAR of the tractor are from the operator’s position. • Before assembly, place the tractor on a firm and level surface, disengage the PTO, stop the tractor engine and set the parking brake.
  • Page 8 • Attach the grass bags using the slots shown in Figure 5. Close the grasscatcher cover. Attaching the Discharge Chute • Raise the deck to its highest position. • On older models: Remove the clip, if already installed on the deck next to the discharge chute opening, by removing the lock nut, spring washer and hex bolt that secure it.
  • Page 9: Operation

    Attaching Blades (Model 190-678 only) Remove the blades from your tractor’s cutting deck as follows. • Remove the cutting deck from beneath the tractor, (refer to Deck Removal in the Maintenance section of your tractor’s operator’s manual for detailed instructions) then gently flip the deck over to expose its underside.
  • Page 10: Section 4: Parts List

    SECTION 4: PARTS LIST * Model 190-678 only...
  • Page 11 Model 190-678-100 Ref. No. Part No. Description 16587D Support Bracket 16592 Support Assembly: Grasscatcher Cover 664-04017 Cover Assembly: Grasscatcher 710-0751 Hex bolt: 1/4-20 x .620 710-3008 Hex Bolt 5/16-18 x 0.75 710-3015 Hex Bolt 1/4-20 x 0.75 711-0309A Clevis Pin 711-1421 Clevis Pin 712-3004A...
  • Page 12: Warranty

    MANUFACTURER’S LIMITED WARRANTY FOR: The limited warranty set forth below is given by Cub Cadet LLC with respect to new merchandise purchased and used in the United States, its possessions and territories. Cub Cadet LLC warrants this product against defects for a...
