Model 19A70030100 front weight kit is designed for use with
select Residential Zero-turn (RZT) models. Refer to your RZT's
Operator's Manual to assure compatibility.
WARNING:
This front-weight kit is required when
operating any compatible lap bar steering RZT
model equipped with a grass collector. Failure to
install this kit may result in serious injury or death.
Carton Contents
Before beginning installation, remove all parts from the carton to
make sure everything is present. Carton contents are listed below

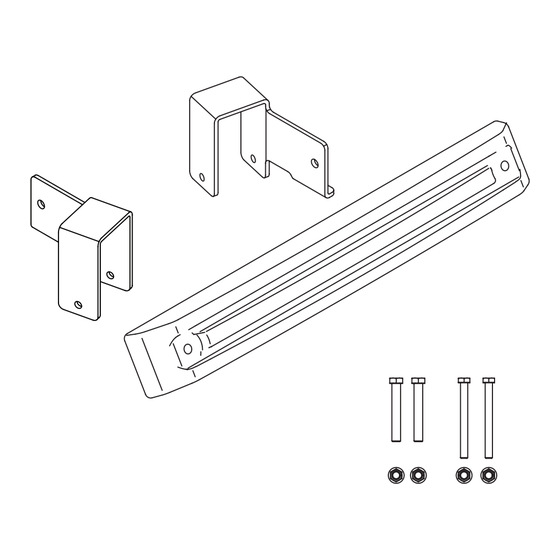

and shown in Figure 1-1. Part numbers are shown in parentheses.
•
Two 31⁄4-inch Screws (710-3056)
•
Two 21⁄2-inch Screws (710-0859)
•
Two 5⁄16" Flange Nuts (712-04063)
•
Two 3⁄8" Flange Nuts (712-04065)
•
One Left Mounting Bracket (703-09197)
•
One Right Mounting Bracket (703-09193)
•
One Weight Bar (719-04271A)
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
I
nstallatIon

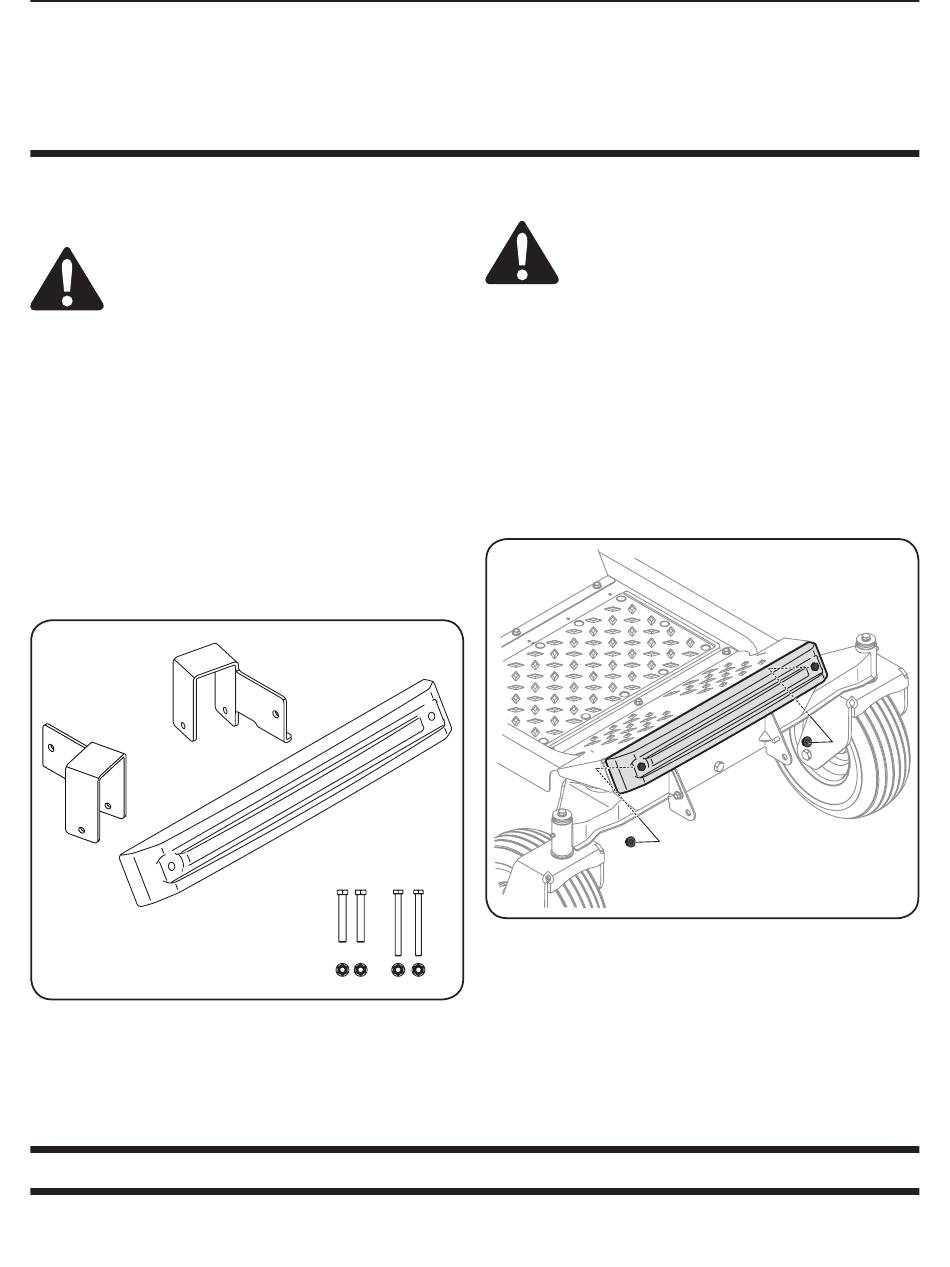

Front Weight Kit — 19A70030100
Figure 1-1
M
anual
Weight Installation
WARNING:
Before beginning installation, place
the RZT on a firm and level surface, set the parking
brake, place the PTO in the disengaged (OFF)
position, stop the motor and remove the ignition
key to prevent unintended starting.
RZT models are available with two different front-end styles.
Identify your RZT using the images in the following instructions
and follow the applicable steps.
RZT Models with a Pivoting Front Axle
Note: Having a second person assist you by holding the weight
bar in place will ease in completing the following steps.
1.
Insert the two 21⁄2-inch screws into the weight bar.
2.
Position the weight bar onto the foot rest and secure it in
place with two 3⁄8" flange nuts. See Figure 1-2.
Figure 1-2
Form No. 769-08514
October 11, 2012
