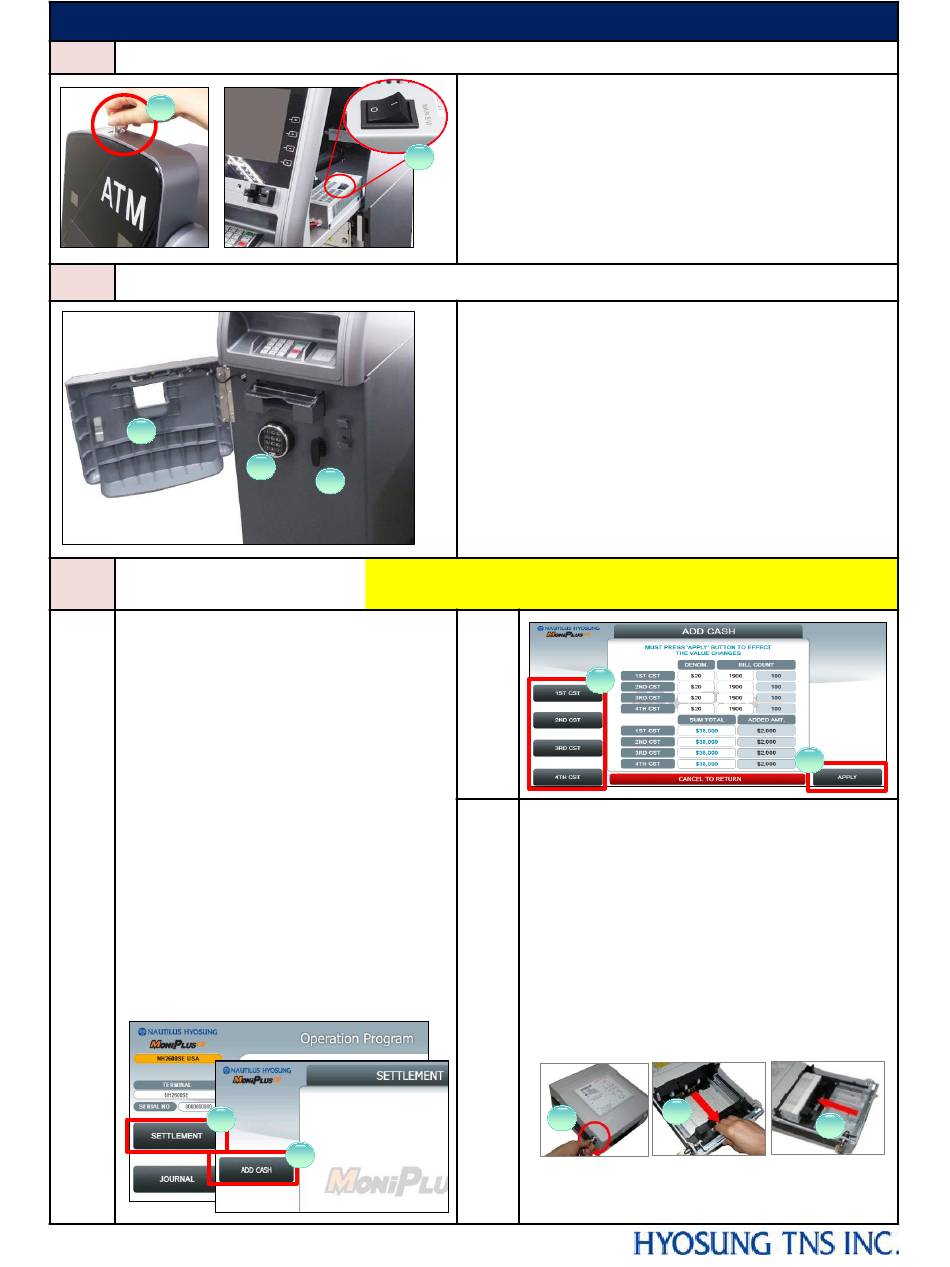

HYOSUNG MX2800SE Quick Reference Manual

1 ATM Power On/Off
1
2 Security Door Open
1
3 Cash Replenishment
 Enter to Supervisor mode (Refer to
"8 OP Main Screen")
 Select "SETTLEMENT"
 Submit "TRIAL CASSETTE TOTAL" to
show note count.
*
To show note count and to clear note
count, submit "CASSETTE TOTAL"
 How to add note count,
- Select "SETTLEMENT" (①)
- Select "ADD CASH" (②)
- Select the cassette to be added the
notes (A) (③)
3-1
- Enter the note count and then press
ENTER key in PIN Pad. (If you want to add
the cash for other cassette, repeat from "A")
- After completing, press "APPLY" button (④).
1
MX2800SE Quick Reference Guide
2
2
3
Caution:
(Refer to Operator Manual)
2
 ATM Power On

Open the upper front door. (①)
 Press Power Switch (②) in the direction of "I".
 ATM Power Off
 Press Power Switch (②) in the direction of "O".
 Safe Door Open

Open the Exterior door (①) using key.

Unlock the E-lock. (②)
 Turn the safe door handle (③) and pull the door to
open.
 E-lock Open (in case of Multiple-User Mode)
•
The factory default Master Code is 1 2 3 4 5 6. To open
the lock, enter 1 2 3 4 5 6 # then rotate the keypad to the
right if D•Drive or turn safe handle if any other model of
lock is installed.
<Note!> The lock's factory default code must be changed
to a unique. Refer to the operator manual for more.
The acceptable condition bills should be loaded
3
3-1
 Open the security door.
 Pull out the cash cassette carefully.
 Unlock the cassette cover using key (①).
 Pull the push plate back until it is locked
against the push plate latch. (②) And then,
set the bills into the cash cassette.
 Then, release the push plate from the cash
plate latch and allow it gradually to take up
its position behind the notes. (③)
 Close the cassette cover with key, place
3-2
the cassette carefully on the set guide and push
it in the ATM until it is locked in place.
1
* The above description is based on 1000 new note
capacity cassette. For 2000 new note capacity
cassette, refer to operator manual.
4
2
3
