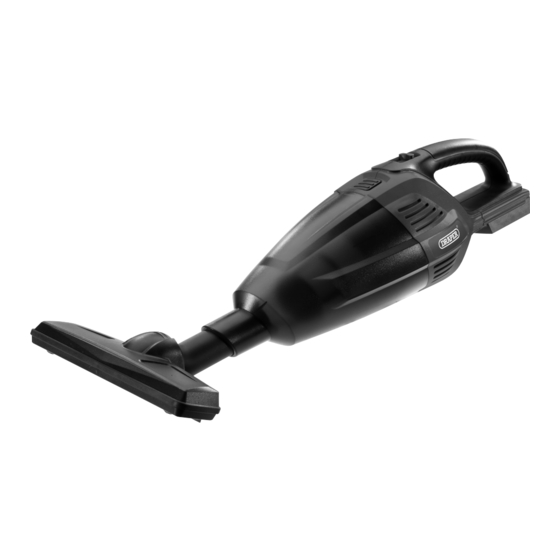

- Page 1 MULTI-TOOL BATTERY SYSTEM ORIGINAL LANGUAGE VACUUM CLEANER 55771 ASPIRATEUR STAUBSAUGER 55771 55771 ASPIRADORA DE STOFZUIGER 55771 55771 ASPIRADOR DE 55771...
-
Page 2: Specification
1. INTRODUCTION 2. SPECIFICATION 1.1 SCOPE 2.1 SPECIFICATION Hand-held domestic vacuum cleaner. Suitable for small Stock No. .............. 55771 cleaning jobs in the car or at home. Part No. ............... D20VC Part of our core range, this product is suitable for enthusiasts and tradespersons alike. Any application Rated voltage .............20V other than that it was intended for, is considered misuse. Rated input ............2200W This product is not a toy and must not be used by Dust capacity ............600ml children or any person with reduced physical, sensory or Max Suction ............3.8kpa mental capabilities or lack of experience and knowledge, or people unfamiliar with these instructions. Air flow ..............1.1m Local regulations may restrict the age of the operator. Weight (machine only) ..........1.5kg 1.2 UNDERSTANDING THIS MANUALS 3. HEALTH AND SAFETY SAFETY CONTENT... - Page 3 tool. Keep cord away from heat, oil, sharp b) Do not use the power tool if the switch does edges or moving parts. Damaged or entangled not turn it on and off. Any power tool that cords increase the risk of electric shock. cannot be controlled with the switch is dangerous and must be repaired. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use c) Disconnect the plug from the power source of a cord suitable for outdoor use reduces the risk and/or remove the battery pack, if detachable, from the power tool before making any of electric shock. adjustments, changing accessories, or storing f) If operating a power tool in a damp location is power tools. Such preventive safety measures unavoidable, use a residual current device reduce the risk of starting the power tool (RCD) protected supply. Use of an RCD accidentally. reduces the risk of electric shock. d) Store idle power tools out of the reach of 3) Personal safety children and do not allow persons unfamiliar a) Stay alert, watch what you are doing and use with the power tool or these instructions to common sense when operating a power tool. operate the power tool. Power tools are Do not use a power tool while you are tired or dangerous in the hands of untrained users. under the influence of drugs, alcohol or e) Maintain power tools and accessories. Check medication. A moment of inattention while for misalignment or binding of moving parts, operating power tools may result in serious breakage of parts and any other condition personal injury.
-
Page 4: Residual Risk
Keep extension leads away from moving hazardous parts to avoid damages to the cable which can lead to contact with live parts. Position cable safely to avoid tripping over. Double insulated : This product requires no earth † connection as supplementary insulation is applied to the basic insulation to protect against electric shock in the event of failure of the basic insulation. Important! If using an extension lead, follow the instructions that came with your lead regarding maximum load while cable is wound. If in doubt, ensure that the entire cable is unwound. Using a coiled extension lead will generate heat which could melt the lead and cause a fire. 4. UNPACKING AND CHECKING 4.1 PACKAGING Carefully remove the product from the packaging and examine it for any sign of damage. Check contents against the parts shown in Fig A. If any part is damaged or missing, please contact the Draper Help Line (see back page). Do not attempt to use the product! The packaging material should be retained during the warranty period, in case the product needs to be returned for repair. Warning! – 4 –... - Page 5 5. IDENTIFICATION – FIG.A (10) (11) (13) (12) (8) Crevice nozzle Detachable dust collection chamber (1) (9) Brush head (2) Dust collection chamber release button (3) On/Off switch (10) Hard floor head (4) Soft grip (11) Filter bag cage (12) Accessories holder (5) Motor housing (13) Filter bag (6) Filter assembly (7) Extension tube FIG.A Note: For details of our full range of accessories and consumables, please visit drapertools.com – 5 –...
-
Page 6: Maintenance
6. PREPARE THE VACUUM 7. BASIC VACUUM CLEANER CLEANER OPERATIONS 6.1 MOUNTING VAC ACCESSORIES 7.1 STARTING OPERATION – FIG.4 – FIGS.1 – 3 − There are various combination possibilities for the cleaner accessories. − Push fit the accessories firmly into the dust collection chamber (1) and in to each other. FIG. (12) 8. MAINTENANCE 8.1 CLEANING – FIG.5 FIG. To maintain the optimum performance of the vacuum cleaner, clean the collection chamber (1) after each use. − Press release button (2) and remove the collection chamber (1) from the motor housing (5). Remove the filter assembly (6.1) from the collection chamber (1). − Shake/tap out the filter cage (6) over a suitable waste bin. − If required, clean the dust cup with a moist cloth. If required, clean the filter assembly. −... - Page 7 9. BATTERY 9.1 BATTERY PACK CHARGING – FIGS. 6 – 7 (15.1) Important! Draper designated battery packs and chargers must only be used with this product. Use of any other third-party battery packs/chargers is considered misuse and will invalidate the warranty. Once connected to the mains supply, recharging of the FIG. battery can be left generally unsupervised. Warning! Check the condition of the charger and Caution: Only use the plug to disconnect from the battery prior to each charge. Do not use if there is any power supply, never use the cable. sign of damage. Caution: If the battery charger has been in continuous The battery pack is supplied un-charged and must be use it will be hot. Once charging is completed, leave the charged before initial use. charger to cool. To charge the battery pack (15): Only charge cooled batteries. – Plug the battery charger (14) unit into a suitable 9.2 BATTERY PACK PROTECTION mains power supply socket. FEATURES – The red LED (14.1) will illuminate to show the charger has power. Overcharging protection: When the battery pack is fully charged, the transformer/charger will automatically – Slide the battery into the charger’s aligning pins.
-
Page 8: Warranty
9.3 BATTERY PACK CHARGE STATUS 10. WARRANTY – FIG.8 10.1 W ARRANTY Press the charge level indicator button (15.2) to display the battery charge level. Draper power tools have been carefully tested & inspected and are guaranteed to be free from defective materials or workmanship. For details of warranty and terms and conditions please visit the Draper Tools website at www.drapertools.com/warranty 11. DISPOSAL 11.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed (15.1) of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: • Do not dispose of power tools with domestic waste. 0 – 10% 0 – 25% 25 – 50% • Do not incinerate. • Do not dispose of WEEE* as unsorted municipal waste.
