Draper 20529 Instructions Manual

1600w 230v 30l wet & dry vacuum cleaner + power tool socket
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE
SAFE AND EFFECTIVE USE OF THIS PRODUCT.
INSTRUCTIONS
These instructions accompanying the product are the original instructions. This document is part of the
product, keep it for the life of the product passing it on to any subsequent holder of the product. Read all
these instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.

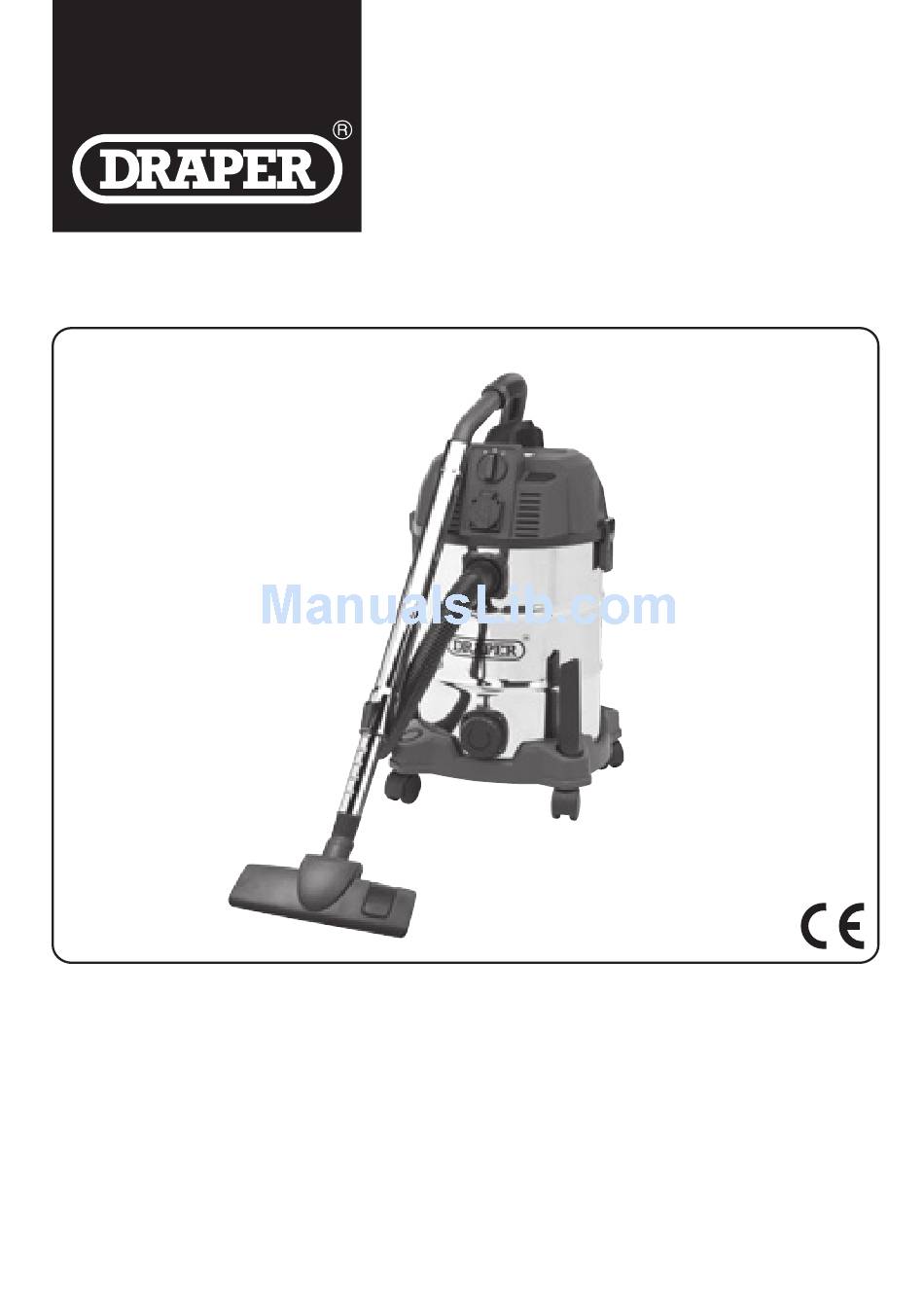

AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of
the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
1600W 230V 30L
WET & DRY

VACUUM CLEANER

+ POWER TOOL SOCKET
20529

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20529 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper 20529

Summary of Contents for Draper 20529

  • Page 1: Vacuum Cleaner

    AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 2.1 CONTENTS Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY ..................2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ....................... 3 GUARANTEE GUARANTEE..................... 4 INTRODUCTION SCOPE ......................5 SPECIFICATION....................5 HANDLING & STORAGE ................... 5 HEALTH &...

  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    Stainless steel tank vacuum cleaner. Designed to pickup wet and dry materials. Ideally suited for use in the workshop and garage or DIY work around the home. 4.2 SPECIFICATION Stock no..........................20529 Part no........................WDV30SSPA Rated voltage ......................230~50Hz Rated input........................

  • Page 6: Health & Safety Information

    HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.

  • Page 7: Connection To The Power Supply

    : This product requires an earth connection to protect against electric shock from accessible conductive parts in the event of a failure of the basic insulation. Draper Tools recommend that this vacuum is used with an RCD (Residual Current Device), Draper Stock No.69307.

  • Page 8: Technical Description

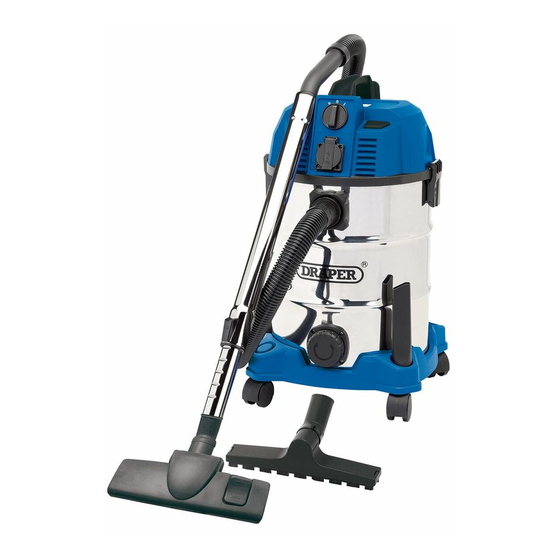

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Drain plug Exhaust port Tank (Stainless steel) Power head Vacuum port Dust clearing button Power tool socket Clasps ON, OFF or power tool switch Cable and plug Handle Clasps...

  • Page 9: Unpacking & Checking 7.1 Packaging

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 10: Preparing The Vacuum Cleaner

    PREPARING THE VACUUM CLEANER 8.1 ATTACH THE CASTORS - FIG. 1 FIG. 1 Warning! Do not make any of the following adjustments with the vacuum cleaner connected to the power supply. With the Power head taken off turn the container upside down, slot the four castors in position.

  • Page 11: Setting The Vacuum Cleaner

    SETTING THE VACUUM CLEANER DRY VACUUMING FIG. 4 9.1 FITTING CLOTH FILTER - FIG 4 Warning! Do not make any of the following adjustments with the vacuum cleaner connected to the power supply. NOTE: Insure that the tank and all accessories are dry if used previously for wet vacuuming.

  • Page 12: Switching On

    SETTING THE VACUUM CLEANER 9.4 SWITCHING ON - FIG. 7 FIG.7 Connect the vacuum cleaner to the power supply and switch the vacuum cleaner on by turning the switch knob to position “I”. Now use the vacuum cleaner as normal. NOTE: The power tool socket is live in switch position “0”...

  • Page 13: Fitting Foam Filter

    SETTING THE VACUUM CLEANER WET VACUUMING 9.6 FITTING FOAM FILTER - FIG 9 FIG. 9 Warning! Do not make any of the following adjustments with the vacuum cleaner connected to the power supply. Empty the tank and dispose of any dirt/dust which may have been picked up previously.

  • Page 14: Blowing Operation

    SETTING THE VACUUM CLEANER 9.10 BLOWING OPERATION Warning! Do not make any of the following adjustments with the vacuum cleaner connected to the power supply. Attach the flexible hose to the exhaust port , the unit will now blow through the vacuum hose. It can be used to clear obstructions within the pipe.

  • Page 15: Maintenance

    10. MAINTENANCE 10.1 MAINTENANCE Warning! Do not make any of the following adjustments with the vacuum cleaner connected to the power supply. Disconnect the hose from the container. Undo clasps and remove the top section from the container. Clear all dirt or debris from the container and hose. Check the hoses, attachments, and power cord to verify that they have not been damaged.

  • Page 16: Troubleshooting

    11. TROUBLESHOOTING 11.1 TROUBLESHOOTING WARNING: For your own safety, turn the switch off and remove the plug from the power supply socket. PROBLEM REQUIRED ACTION POSSIBLE CAUSE • Vacuum will not • No power supply. • Check power supply - cord, operate.

  • Page 17: Explanation Of Symbols

    12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Warning! Read the instruction manual Warning! Wear suitable eye/face protection. Warning! Wear suitable respiratory protection. Warning! Wear suitable ear protection. For indoor use. Do not expose to rain. WEEE Do not dispose of Waste Electrical &...

  • Page 18: Disposal

    13. DISPOSAL 13.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 19 NOTES...
  • Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
