INSTALLATION INSTRUCTIONS

DESCRIPTION

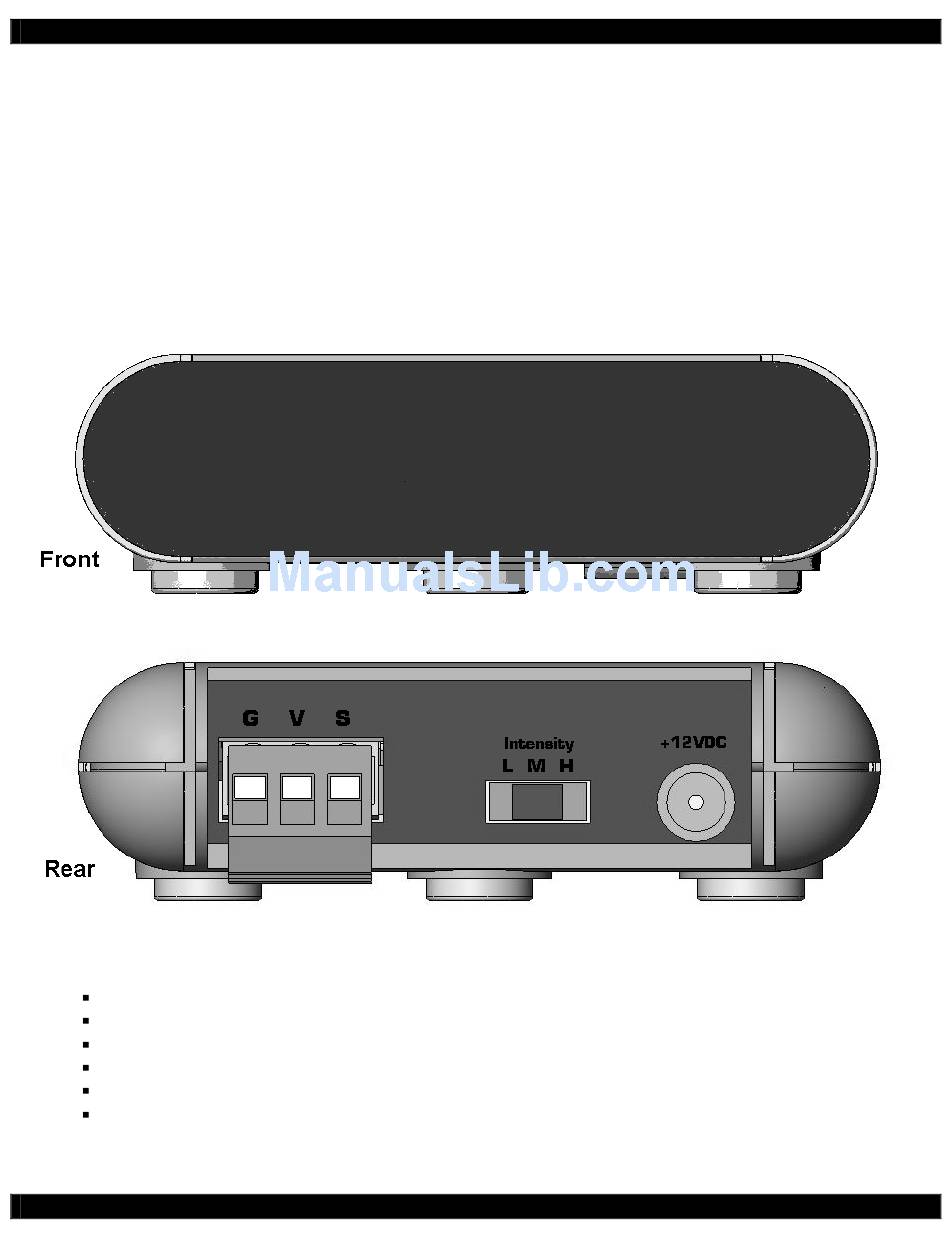

The 390-20 BLAST-IR contains three high-intensity Infrared LEDs housed in a small shelf-top
assembly. The benefit of the 390-20 is that it can "flood" an enclosed area with an infrared signal. The
390-20 comes with a screw terminal plug that allows fast connection to any 3-wire IR receiver.

SPECIFICATIONS

+12VDC, 200mA.
Red IR Talk-back LED (internal).
3 Position Intensity Switch.
Dimensions: 3-1/4" W x 1" H x 2" D.
Screw Terminal Plug, (V = POWER, S = SIGNAL \ IR IN, G = GROUND).
Able to achieve a distance well over 30 feet.
390-20
Shelf-Top, BLAST-IR Emitter
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 390-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Xantech 390-20

  • Page 1 The 390-20 BLAST-IR contains three high-intensity Infrared LEDs housed in a small shelf-top assembly. The benefit of the 390-20 is that it can “flood” an enclosed area with an infrared signal. The 390-20 comes with a screw terminal plug that allows fast connection to any 3-wire IR receiver.
  • Page 2 STEP 1: Connect the 3 wires from the Xantech IR Receiver to the 3-Pin Screw Terminal Plug. - For Xantech IR receivers with a stripe conductor, this should be connected to “S” for IR IN. - - - For Xantech IR receivers with colored wires, Red goes to “V” for +12VDC, White goes to “S”...
  • Page 3 While it is possible to make wired connections without a Xantech connecting block, it is not recommended. The Xantech connecting block reduces installation time, helps to eliminate errors, allows easy troubleshooting and permits easy system upgrades later, if needed. FIGURE 2 Power Supply It is recommended to use a +12Vdc, 200mA power supply.
  • Page 4 Xantech and found to be defective by Xantech within the warranty period will be repaired or replaced, at Xantech's option, at no charge. Xantech will not be responsible for the actual cost of installation or removal of the product, nor for any incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you.
