Xantech 283MW Installation Instructions

DESCRIPTION

The 283MW Blink-IR Mini Emitter is similar to the 283-00 except it uses very small wire (28 gauge)
throughout the entire 6' length between the emitter shell and the mini plug. Like the 283-00, it contains a
small Infrared LED housed in a miniature, black appearing, injection molded plastic shell. Unlike other
emitters, they emit visible red light in addition to IR (infrared) control signals when activated by IR commands
sent to them by IR receivers or other Xantech controllers. They are designed to be installed directly on the
IR sensor window of each controlled device.

INSTALLATION

ATTACHING THE EMITTERS TO IR SENSOR WINDOWS

• Each emitter has a clear adhesive layer on the bottom flat surface
of the shell. The rounded side faces the user and emits visible
red light when a command is sent.
• Simply peel off the protective cover and affix the emitter to the
center of the IR sensor window on the controlled component's
front panel.
• In some cases it may be difficult to find the location of the IR
sensor on the component. Consult the owner's manual of the
unit, or the manufacturer, for the exact IR window location.
• Double-sided adhesive tape is included. If you move the emitter to a different component, use this tape
to replace the current adhesive layer.
• The shell, though black in appearance, is transparent to infrared light, allowing commands from a
handheld remote control to pass through the shell. This permits direct control of the equipment from a
handheld remote as well as from the 283MW.

CONNECTING THE EMITTERS

• Simply insert the mono mini plug of the 283MW emitter into the "EMITTERS" or "OUT" jacks on any of
the Xantech Connecting Blocks or Controllers.
• CAUTION: DO NOT plug emitters into the IN/OUT or HIGH OUT jacks on the 790-00 and 791-44
Connecting Blocks. To do so will destroy the emitters!
INSTALLATION INSTRUCTIONS
283MW
BLINK-IR™ MINI EMITTER
283MW

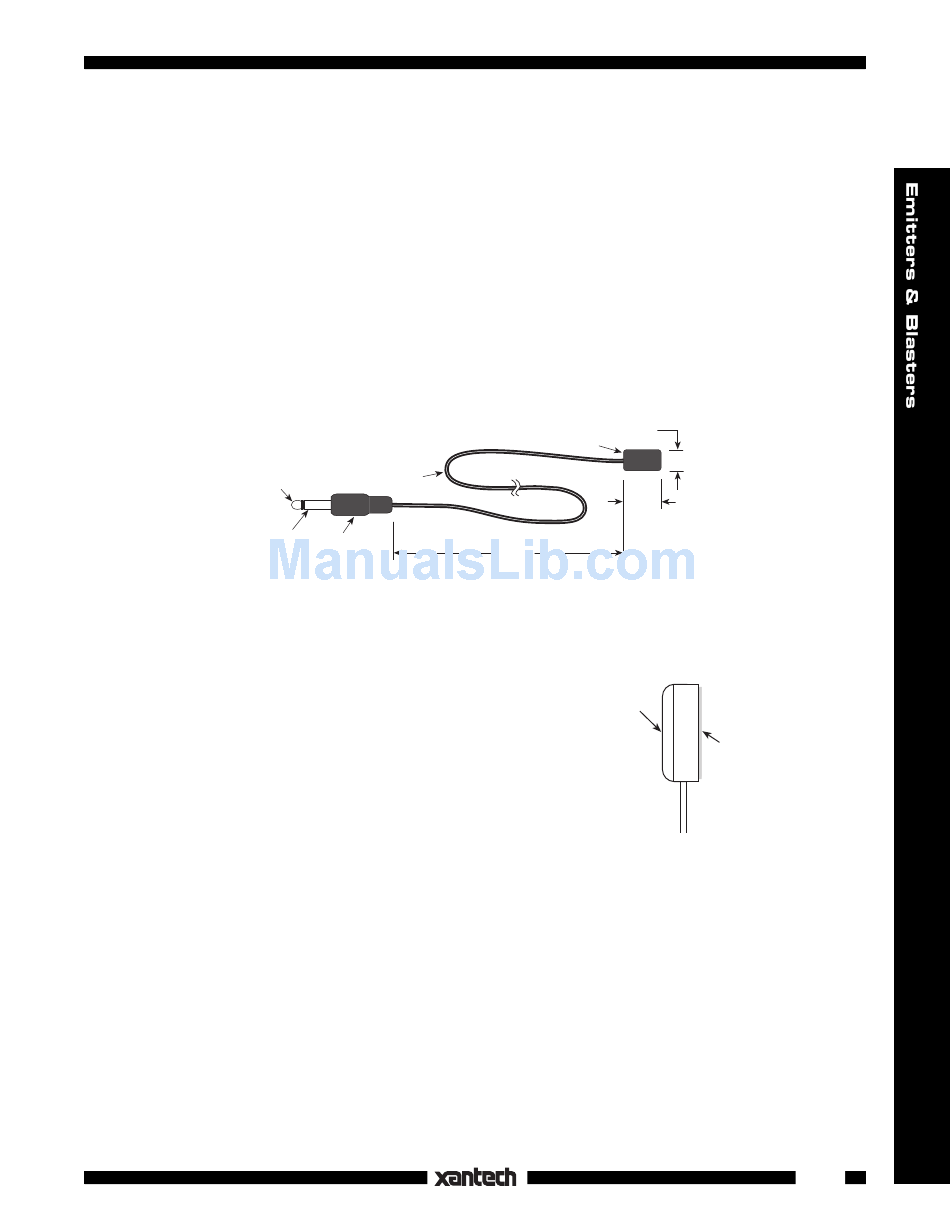

2-conductor
mini wire
+
–
3.5mm mono
mini plug
SHELL
5/16"
(Encloses Red LED)
1/2"
6 FT
Emitter Shell

Clear adhesive
layer.
(Replace, when necessary,
with a short piece of two-
sided adhesive tape,
supplied).
