INSTALLATION INSTRUCTIONS
DESCRIPTION
The 380-20 J-BOX BLAST-IR™ contains three high-intensity Infrared LEDs housed in a metal
enclosure that can easily be mounted inside a standard, single gang, J-BOX electrical receptacle.
The benefit of the 380-20 is that it can "flood" an enclosed area with an infrared signal. The 380-20
comes with mounting screws and a Decora
faceplate.

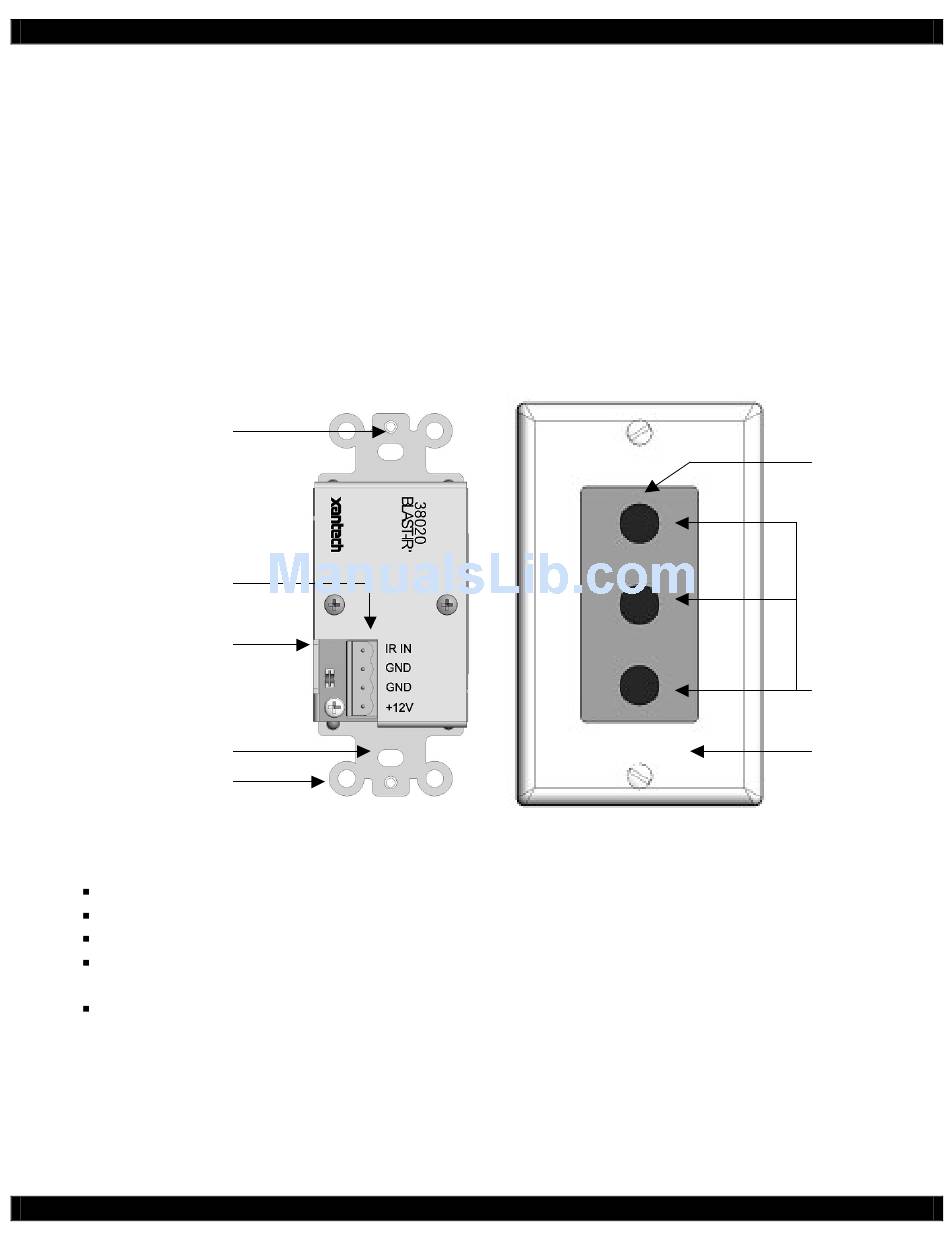

6-32 Threaded hole (2) for
®
Decora
-style cover plate
4-Pin mating plug
(included)
Red IR talk-back LED
J-Box mounting hole (2)
Breakaway plaster-ears
SPECIFICATIONS
+12VDC, 200mA.
Red IR talk-back LED (internal).
Dimensions: 1-3/4" W x 4" H x 1-1/4" D.
Recommended wire requirements: 3 or 4 conductor, 22 gauge solid or stranded wire up to
600 feet (unshielded OK).
Able to achieve a distance well over 30 feet.
380-20
Single Gang, J-BOX, BLAST-IR™ Emitter
®
style insert that can be used with the popular Decora
®
®
Decora
Style
Insert with dark
tinted lens cover
(included)
High-intensity
infrared LED
®
Decora
style
faceplate
(not included)
- 1 -
