Xantech 283TP Installation Instructions

BLINK-IR™ Mouse Emitter, Twin Plug

INSTALLATION INSTRUCTIONS

DESCRIPTION

The 283TP "Twin-Plug" Blink Emitter is based on Xantech's
standard 283M Blink-IR Mouse emitter with two 3.5mm
Mono-Mini plugs each with 'diode' isolation. The twin plug
feature allows a single emitter to be shared by two IR
sources. For instance, one mouse emitter can now be
connected to both an IR receiver and a Xantech Multi-Zone
Controller without having to place two emitters on the front
of the IR Controllable component.
Internally, the 283TP contains components that are
designed to keep the IR signal path directed towards the
emitter only, allowing both control systems to be completely
isolated. The plugs are gold plated to increase durability
and connectivity
INSTALLATION
•

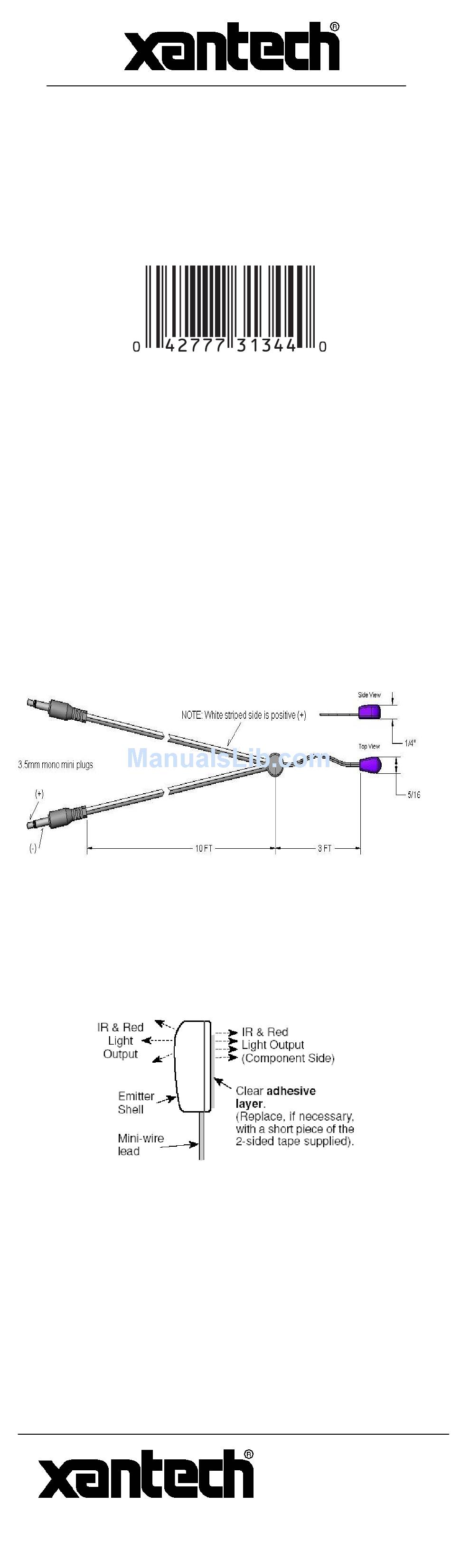

Each emitter has a clear adhesive layer on the bottom
flat surface of the shell. The rounded side faces the
user and emits visible light when a command is sent.
•
Simply peel off the adhesive cover and affix the emitter
to the center of the IR sensor window on the controlled
component's front panel.
•
In some cases it may be difficult to find the location of
the IR sensor on the component. Consult the owner's
manual of the unit, or the manufacturer, for the exact IR
sensor window location.
•
Double-sided adhesive tape is included. If you move the
emitter to a different component, use this tape to
replace the current adhesive layer for the best
adhesion.
•
The shell, though dark in appearance, is transparent to
infrared light, allowing commands from a handheld
remote control to pass through it. This permits direct
control of the equipment from a handheld remote as
well as from the 283TP.
MODEL
283TP
.
13100 Telfair Ave. 2/F
Sylmar, CA 91342
www.xantech.com
