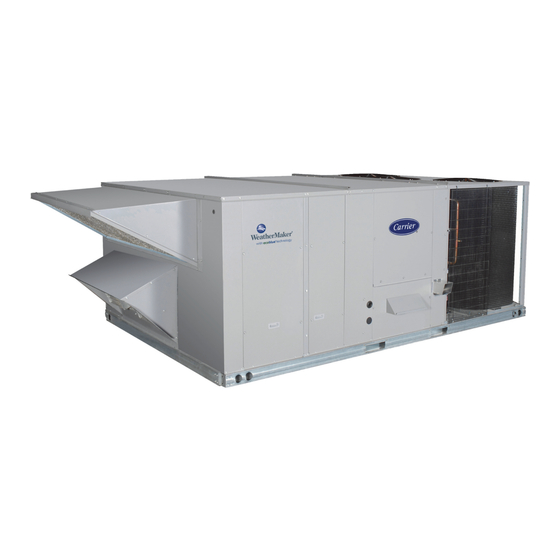

Carrier 48FC M20 Series Service And Maintenance Instructions

Single package rooftop gas heat/electric cooling unit with puron (r-410a) refrigerant 17.5-27.5 nominal tons
Hide thumbs
Table of Contents

Advertisement

Quick Links

Service and Maintenance Instructions
CONTENTS
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . 2
UNIT ARRANGEMENT AND ACCESS . . . . . . . . . . . . 3
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 3
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SUPPLY FAN (BLOWER) SECTION . . . . . . . . . . . . . . 4
Supply Fan (Direct-Drive) . . . . . . . . . . . . . . . . . . . . . . 4
Staged Air Volume . . . . . . . . . . . . . . . . . . . . . . . . . . 13
COOLING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Condenser Coil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Recommendation . . . . . . . . . . . . . . . . . . . . . . . . . 13
Evaporator Coil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Evaporator Coil Metering Devices . . . . . . . . . . . . . . 15
TXV Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Replacing TXV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
PURON (R-410A) REFRIGERANT . . . . . . . . . . . . . . . 17
Refrigerant Charge . . . . . . . . . . . . . . . . . . . . . . . . . . 17
COMPRESSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Replacing Compressor . . . . . . . . . . . . . . . . . . . . . . . 26
Compressor Rotation . . . . . . . . . . . . . . . . . . . . . . . . 26
Filter Drier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Condenser-Fan Adjustment . . . . . . . . . . . . . . . . . . . 26
Troubleshooting Cooling System . . . . . . . . . . . . . . 27
CONVENIENCE OUTLETS . . . . . . . . . . . . . . . . . . . . 28
Convenience Outlets . . . . . . . . . . . . . . . . . . . . . . . . 28
Installing Weatherproof Cover . . . . . . . . . . . . . . . . . 28
Non-Powered Type . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Unit-Powered Type . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Duty Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Fuse on Powered Type . . . . . . . . . . . . . . . . . . . . . . . 29
SMOKE DETECTORS . . . . . . . . . . . . . . . . . . . . . . . . 29
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Smoke Detector Sensor . . . . . . . . . . . . . . . . . . . . . . 29
Smoke Detector Locations . . . . . . . . . . . . . . . . . . . . 30
SENSOR AND CONTROLLER TESTS . . . . . . . . . . . 32
Sensor Alarm Test . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Controller Alarm Test . . . . . . . . . . . . . . . . . . . . . . . . 32
Dirty Controller Test . . . . . . . . . . . . . . . . . . . . . . . . . 32
Dirty Sensor Test . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53480333-01
Single Package Rooftop Gas Heat/Electric Cooling Unit
Page
Printed in U.S.A.
Form 48FC-20-30-01SM
with Puron
®
17.5-27.5 Nominal Tons
Changing the Dirt Sensor Test . . . . . . . . . . . . . . . . .33
Remote Station Test . . . . . . . . . . . . . . . . . . . . . . . . .33
Dirty Sensor Test Using an SD-TRK4 . . . . . . . . . . .34
Detector Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
PROTECTIVE DEVICES . . . . . . . . . . . . . . . . . . . . . . .35
Compressor Protection . . . . . . . . . . . . . . . . . . . . . . .35
Relief Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Control Circuit, 24-V . . . . . . . . . . . . . . . . . . . . . . . . .36
GAS HEATING SYSTEM . . . . . . . . . . . . . . . . . . . . . .37
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Fuel Types and Pressures . . . . . . . . . . . . . . . . . . . .37
Flue Gas Passageways . . . . . . . . . . . . . . . . . . . . . . .38
Combustion-Air Blower . . . . . . . . . . . . . . . . . . . . . . .38
Burners and Igniters . . . . . . . . . . . . . . . . . . . . . . . . .38
Burner Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Orifice Replacement . . . . . . . . . . . . . . . . . . . . . . . . .42
Troubleshooting Heating System . . . . . . . . . . . . . .44
SYSTEMVU CONTROL SYSTEM . . . . . . . . . . . . . . . .46
SystemVu Interface . . . . . . . . . . . . . . . . . . . . . . . . . .46
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .46
ECONOMIZER SYSTEMS . . . . . . . . . . . . . . . . . . . . .47
EconoMi$er2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
PRE-START-UP/START-UP . . . . . . . . . . . . . . . . . . . .66
START-UP, GENERAL . . . . . . . . . . . . . . . . . . . . . . . .67
Unit Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Additional Installation/Inspection . . . . . . . . . . . . . .67
Gas Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Return-Air Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Outdoor-Air Inlet Screens . . . . . . . . . . . . . . . . . . . . .68
Compressor Mounting . . . . . . . . . . . . . . . . . . . . . . .68
Internal Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Refrigerant Service Ports . . . . . . . . . . . . . . . . . . . . .68
Compressor Rotation . . . . . . . . . . . . . . . . . . . . . . . .68
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Main Burner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Ventilation (Continuous Fan) . . . . . . . . . . . . . . . . . .68
FASTENER TORQUE VALUES . . . . . . . . . . . . . . . . .69
START-UP, SYSTEMVU CONTROLS . . . . . . . . . . . .69
GENERAL FAN PERFORMANCE NOTES . . . . . . . . .74
NOMENCLATURE . . . . . . . . . . . . . . . . . . . . . . . . . .70
