TM
PowerView
Model PV300 - P
Operations Manual
2012-05-25
00-02-0834
Section 78

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerView PV300-P and is the answer not in the manual?

Questions and answers

Related Manuals for Murphy PowerView PV300-P

Summary of Contents for Murphy PowerView PV300-P

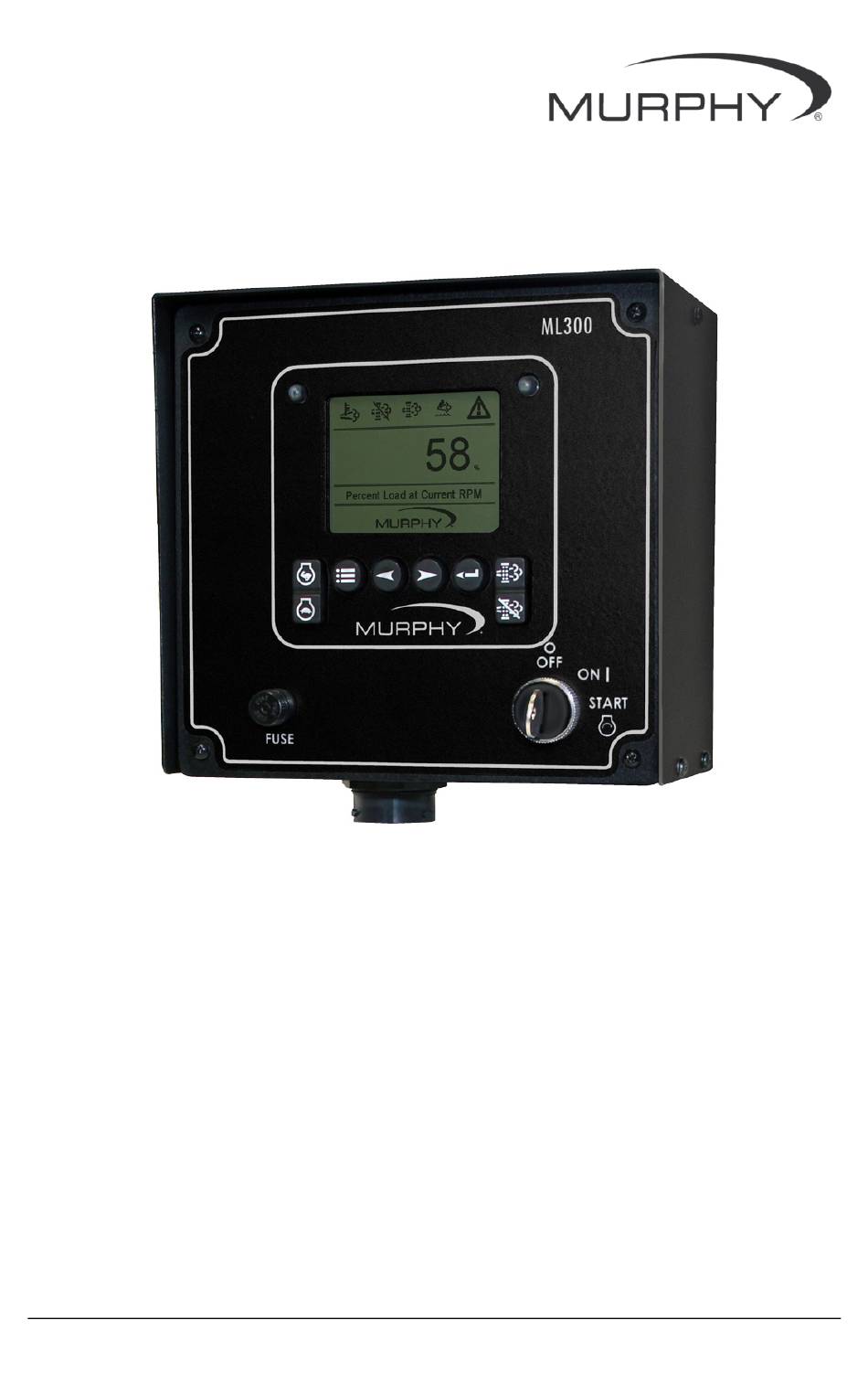

  • Page 1 PowerView Model PV300 - P Operations Manual 2012-05-25 00-02-0834 Section 78...
  • Page 2 Warranty - A limited warranty on materials and workmanship is given with this FW Murphy product. A copy of the warranty may be viewed or printed by going to www.fwmurphy.com/warranty...

  • Page 3: Table Of Contents

    Table of Contents Introduction ................1 Engine and Transmission Parameters ..............1 Navigation and Keypad Functions ................2 First Time Start Up ..............4 Main Menu Options ..............5 Gauge Display ......................5 Brightness ....................... 6 Contrast ........................6 Units ........................6 Reminders .......................
  • Page 4 THIS PAGE INTENTIONALLY LEFT BLANK...

  • Page 5: Introduction

    Introduction Congratulations on purchasing the PowerView 300-P. This advanced tool provides monitoring of Tier 4/Euro Stage 4 compliant electronic engines. The PowerView (Model PV300-P) monitors multiple J1939 parameters, and provides basic engine alarm/shutdown with integrated throttle control. This manual was developed to help you become familiar with the PowerView 300-P display, identify navigation basics, and recognize useful options and features.

  • Page 6: Navigation And Keypad Functions

    Navigation and Keypad Functions The keys on the keypad perform the following functions: Menu – Enter or exit menu screens. Left Arrow – Scroll the screen or move the parameter selection to the left or upward. Right Arrow – Scroll the screen and move the parameter selection to the right or downward.
  • Page 7 Basic Navigation 1. Press Menu to display the Main Menu items. 2. Use the Left and Right Arrow Keys to move between menu items or within a list in a menu item. 3. When the cursor points to your choice, press Enter. Some menu items open in a new screen, for others the unselected items disappear and your choice...

  • Page 8: First Time Start Up

    Shutdown lights illuminate and the Murphy logo displays. If a preheat message is being actively broadcast from the Engine Control Unit (ECU), a Wait to Start message displays below the Murphy logo as shown in the image below. Once the engine has started, the 6-up parameter view displays with Engine RPM, Oil Pressure, Coolant Temperature, Voltage, % Load, and Engine Hours.

  • Page 9: Main Menu Options

    Main Menu Options This section describes the items listed in the Main menu. These options display whenever you press Menu. Use the Arrow Keys to scroll through displays next to your choice, press Enter to the items. When the cursor select the menu item.

  • Page 10: Brightness

    Brightness Press Enter to select Brightness from the menu. The other menu items disappear and Brightness remains. Use the Left and Right Arrow keys to increase or decrease the backlight intensity of the display in 5% increments. Press Menu to save your changes and return to the full Main menu display.

  • Page 11: Reminders

    Reminders Press Enter to select Reminder from the menu. The Service Reminder screen displays. This screen shows the Interval values and Remaining time before servicing is required. The Service Reminders are Engine Oil, Air Filters, Hydraulic Oil, Service Engine, and Service Machine. You must have a password to access the OEM menu.

  • Page 12: Version

    Version Press Enter to select Version from the menu. The Version screen lists information specific to the Configuration, Loader, and Application Versions currently on the PV300-P unit. It also lists the part number of the unit. You may need this information if requesting assistance from Technical Support Stored Codes (DM2) Press Enter and the PV300-P requests and displays stored fault...

  • Page 13: Oem Menu Options

    P options to work specifically with their equipment. Although the code is 3482, you may not have access to the OEM menu. If the Murphy standard key does not work, contact the OEM from whom the engine or machine was purchased.
  • Page 14 TSC1 (Torque Speed Control) TSC1 offers four (4) combinations of control for the throttle buttons (Hare/Tortoise). You select the attribute of throttle control in TSC1 Type: Inc/Dec, Idle/Run, Idle/Run 2, and Idle/Run 3. The default is Inc/Dec. TSC1 Setup mirrors the selection made in TSC1 Type with fields where set- to-speed RPM values are established.
  • Page 15 Idle – the default is 800 Idle/Run2 Run1 – the default is 1600. This option allows 2 speeds for the engine. Press the Hare or Tortoise to bump the throttle demand to the engine up or down. Run2 – the default is 2200. The second throttle bump.

  • Page 16: Dpf Regen

    DPF Regen* *Murphy products are compliant with requirements for U.S. EPA Emission Standard ‒ Tier 4 and EU Emissions Standard ‒ Stage IIIB for diesel engines. These engines when fitted with a DPF (Diesel Particulate Filter) can self-clean the filter of particulates.

  • Page 17: Reminders Setup

    DPF Inhibit lamp indicates an inhibited 64892 3698 Regen status. Diesel Exhaust Fluid (DEF). The level 65110 1761 indicator displays when the fluid level drops to 12%. When the DEF drops to zero (0), the level indicator begins to flash. 1.
  • Page 18 2. Press Modify to reach the screen where you change Reminder hours NOTE: On this screen, you also see Hour Type. To select an Hour Type, see the next set of instructions. 3. Use the Right Arrow to move to the starting numeric position (for example, the furthest left position is 100,000).

  • Page 19: Fault Conversion

    2. On the screen to the right, select either Engine or Machine by pressing the appropriate button. The Modify Service Reminder screen displays. 3. The confirmation screen Modify Service Reminder? displays. Press OK to save your changes, you return to the Service Reminder screen.

  • Page 20: Restore Defaults

    Use the Arrow keys to decrease or increase the address numeric. The range is 0 to 253. The default is address 43. 3. Press Enter. The confirmation screen Change Source Address displays. 4. Press Enter to save your changes or Cancel to exit the screen without saving.

  • Page 21: Clear Faults (Dm3)

    Clear Faults (DM3) Please consult your Factory Authorized Engine Service Dealer prior to clearing DM3 fault codes. Output When ON and an alarm condition is present, the Output will pulse ON and OFF. The Output remains steady when a shutdown condition is present. The Output turns OFF once the fault condition is corrected, it is not active on the CANBUS, and the fault has been acknowledged on the display.

  • Page 22: Faults And Warnings

    Faults and Warnings The PowerView 300 provides three means for displaying faults and warnings: visual LEDs on the casing (Amber in the upper left corner, and Red in the upper right corner), Warning or Shutdown screens, and Fault Indicators (symbols) that show on the display. In addition, DPF Regen (Tier 4/Euro State IIIB) icons display to indicate DPF Regen status.

  • Page 23: Supported Parameters

    Supported Parameters Description 61443 Percent Load at Current Speed 61444 Engine Speed 65253 Total Engine Hours 65262 Engine Coolant Temperature 65263 Engine Oil Pressure 65271 Electrical Potential 65271 Battery Potential Voltage 65271 Alternator Potential 1761 65110 Diesel Exhaust Fluid Level 3719 64891 Percent Soot...
  • Page 24 65257 Total Fuel Used 65263 Fuel Temperature 65262 Engine Oil Temperature 65266 Fuel Rate 65266 Instantaneous Fuel Economy 65266 Average Fuel Economy 65270 Boost Pressure 65272 Transmission Oil Pressure 65272 Transmission Oil Temperature 65276 Fuel Level 61448 1762 Hydraulic Pressure 65128 1638 Hydraulic Temperature...

  • Page 25: Specifications

    Specifications Operating Voltage: 6.0 VDC minimum to 32 VDC maximum Reversed Polarity: Withstands reverse battery terminal polarity indefinitely within operating temperatures. Environmental Operating Temperature: -40°C to 85°C (-40°F to 185°F) Storage Temperature: -55°C to 85°C (-67°F to 185°F) Sealing: IP67 (with connectors properly terminated and sealed) CAN Bus: SAE J1939 compliant Case: Polycarbonate Output: Low side FET (1AMP max) (switches to ground upon fault)
  • Page 26 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 27 THIS PAGE INTENTIONALLY LEFT BLANK...
