3.3 Installation

3.3.1 Installation Preparation

The cabinet is installed against the wall and the height of the installation base is greater than 200mm; keep both
sides well ventilated, and the minimum gap between the two sides and the top should not be less than Cabinet 3-1.

3.3.2 Installation Guide

(1) Floor-mounted installation of the cabinet, use expansion bolts to fix the cabinet on the base, the base bearing
>1500KG.
The hole size of the base is shown in Picture 3-2:
>500mm

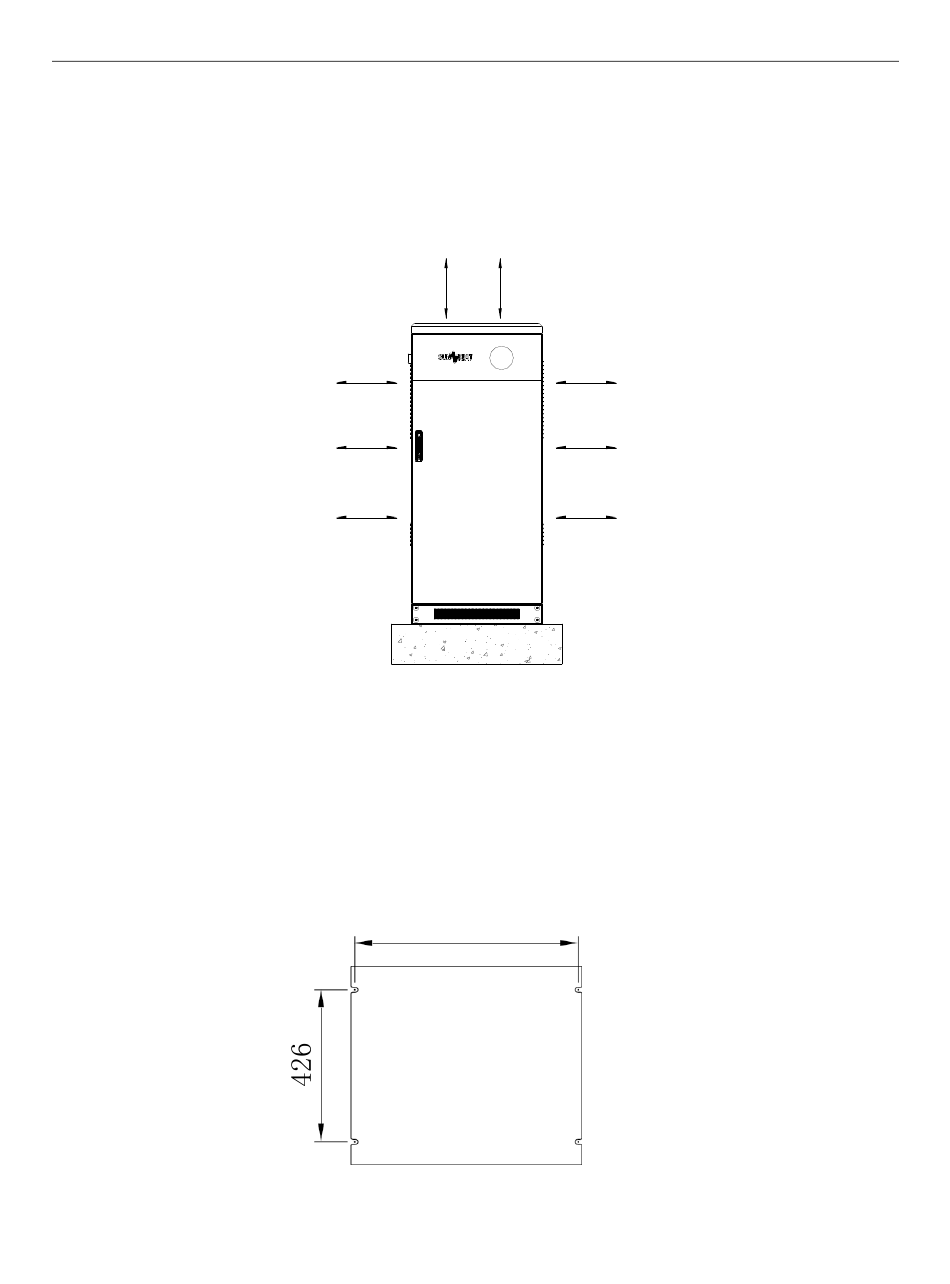

Picture 3-1 Installation diagram
629
Picture 3-2 Dimensions of the openings in the cabinet base
>300mm
>500mm
