2.2 Structure and Composition

The product adopts a modular design framework. The battery box, energy storage inverter and power distribution box
are installed in the form of components for easy replacement.
(1) Cabinet top cover
(2) LAMP button
(3) Input and output cables hole
(4) Inverter air outlet
(5) Battery heat dissipation port
(6) LCD display
(7) Cabinet front door
(1) Inverter
(2) Power distribution box
(3) Battery module
(4) Start button
(5) PV input terminal
(1)
(6)
(2)
(3)
(4)
(7)
(5)
(8)

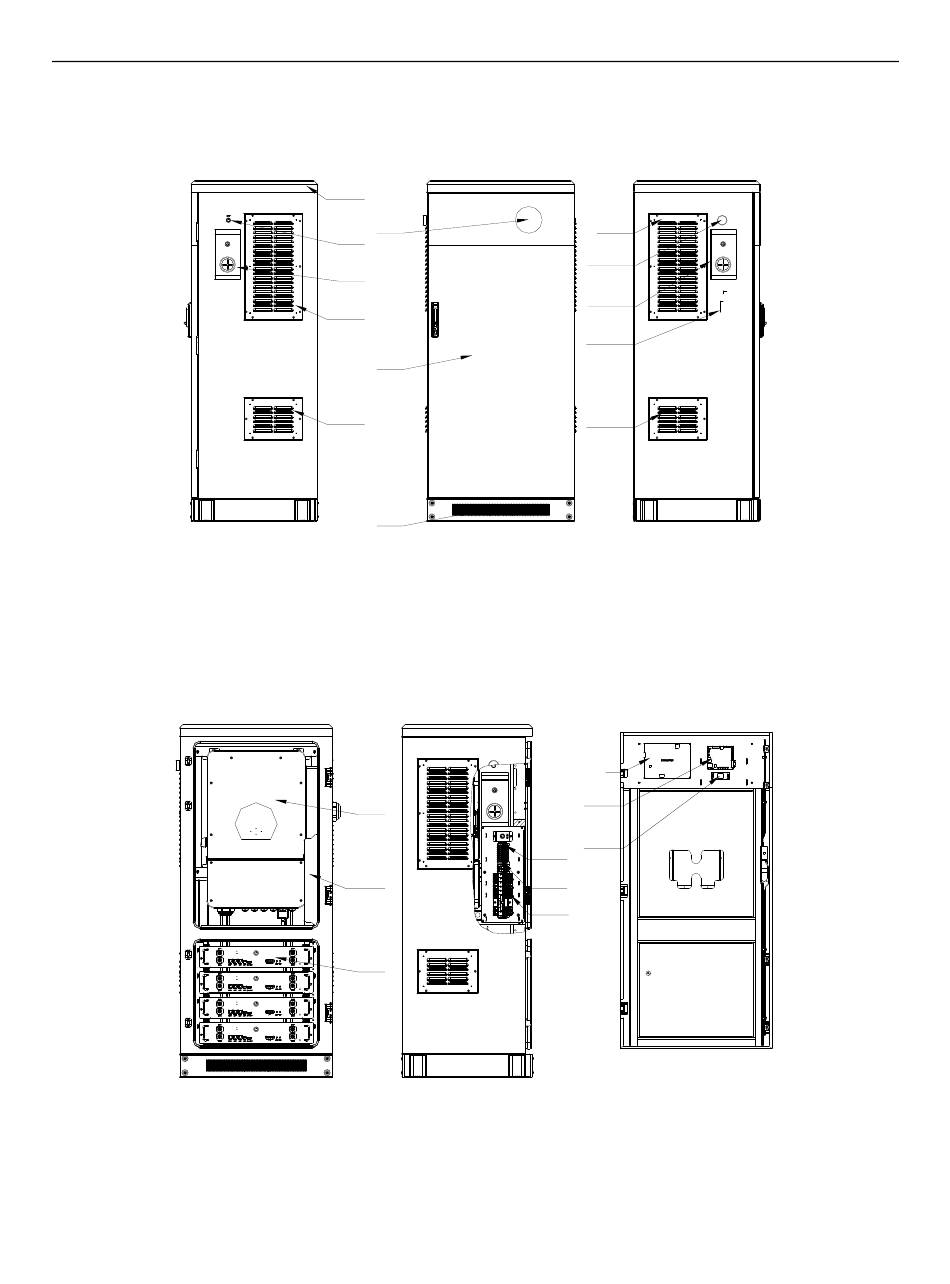

Picture 2-2 Product appearance
(1)
(2)
(3)
Picture 2-3 Internal composition of the product
(9)
(10)
(11)
(12)
(13)
(8) Cabinet base
(9) PCS air inlet
(10) Antenna
(11) Input and output cables hole
(12) Marks
(13) Heat dissipation port of the battery
(7)
(8)
(9)
(4)
(5)
(6)
(6) Circuit breaker switch
(7) LCD display
(8) LCD control board
(9) Power module
