3.4 Cable Connection

3.4.1 Install Waterproof Cable Gland

Before cable connection, remove the protective coil on the cabinet and replace it with the waterproof cable gland.

3.4.2 Grounding

The grounding cable should be connected to the common grounding bar on the grid side to prevent electric
shock. The recommended wire specifications for the equipment grounding cable are as follows.
Model
SunBeat 5010A/ SunBeat
8015A/ SunBeat 8020A
Connect one end of the ring terminal of the grounding wire to the grounding point on the top of the cabinet, and
the other end to the common grounding point.

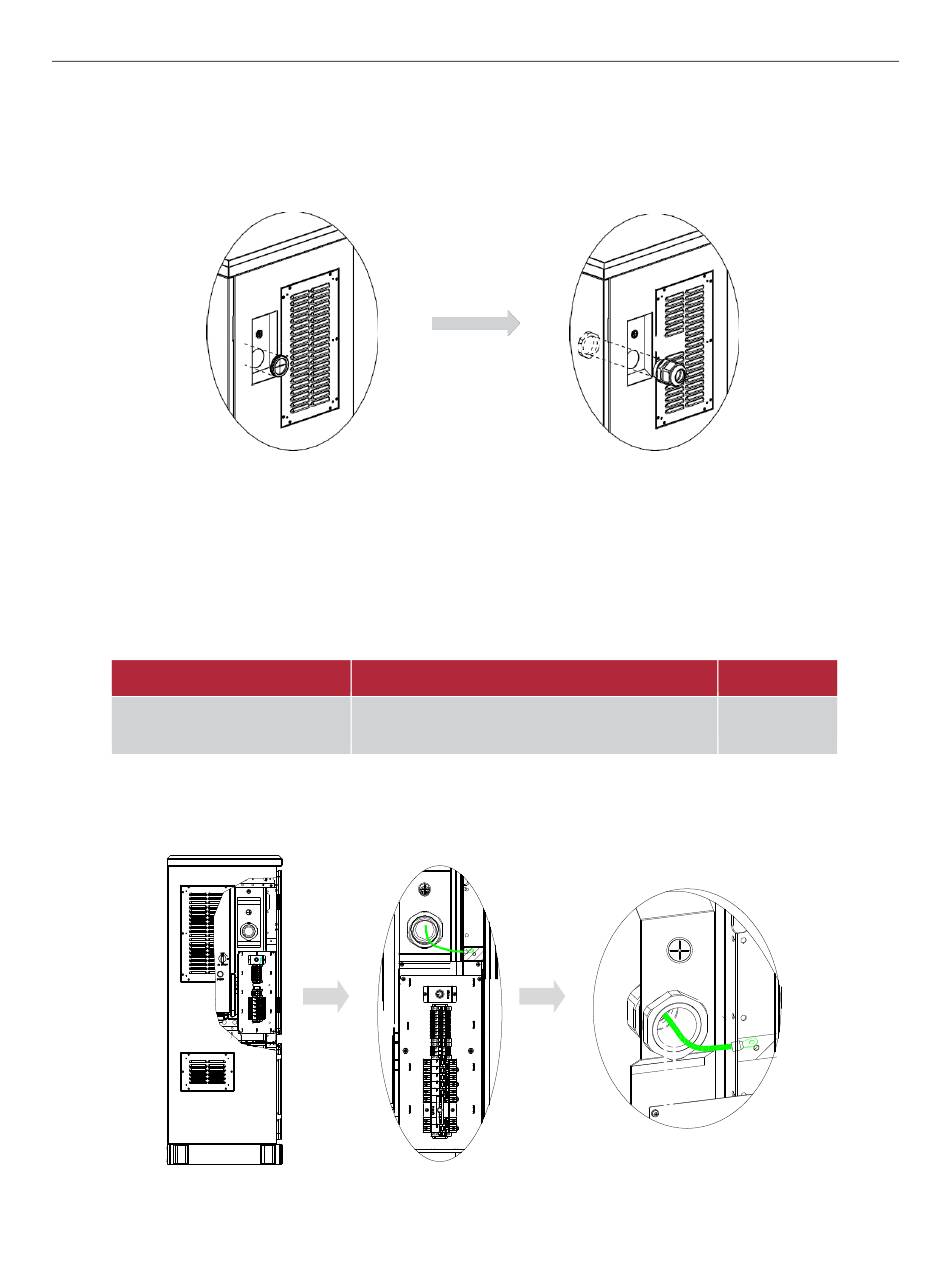

Figure 3-6 Install waterproof cable gland
Wire Size/Requirements
Yellow-green two-color cable M6
Ring terminal
Picture 3-7 Cabinet ground connection
8AWG
Cable (mm2 )
8
10
