4.3.10 Device Info Setup Menu

4.4 Battery Status Display

The SOC and running status of the battery pack can be checked through the LED status indicator on the battery
pack. The indicators are sorted from left to right as LED1-LED6. The LED5 and LED6 of the 1# battery pack show the
fault summary status of the battery cabinet, that is, when any battery pack of the system fails, the LED of the 1#
battery pack displays the current failure.
UL1741&IEEE1547 CPUC RULE21 SRD-UL-1741:
No need to set the function of this interface.
General Standard:
Please select the correct Grid Frequency in your local
area.
You can hold this in default value

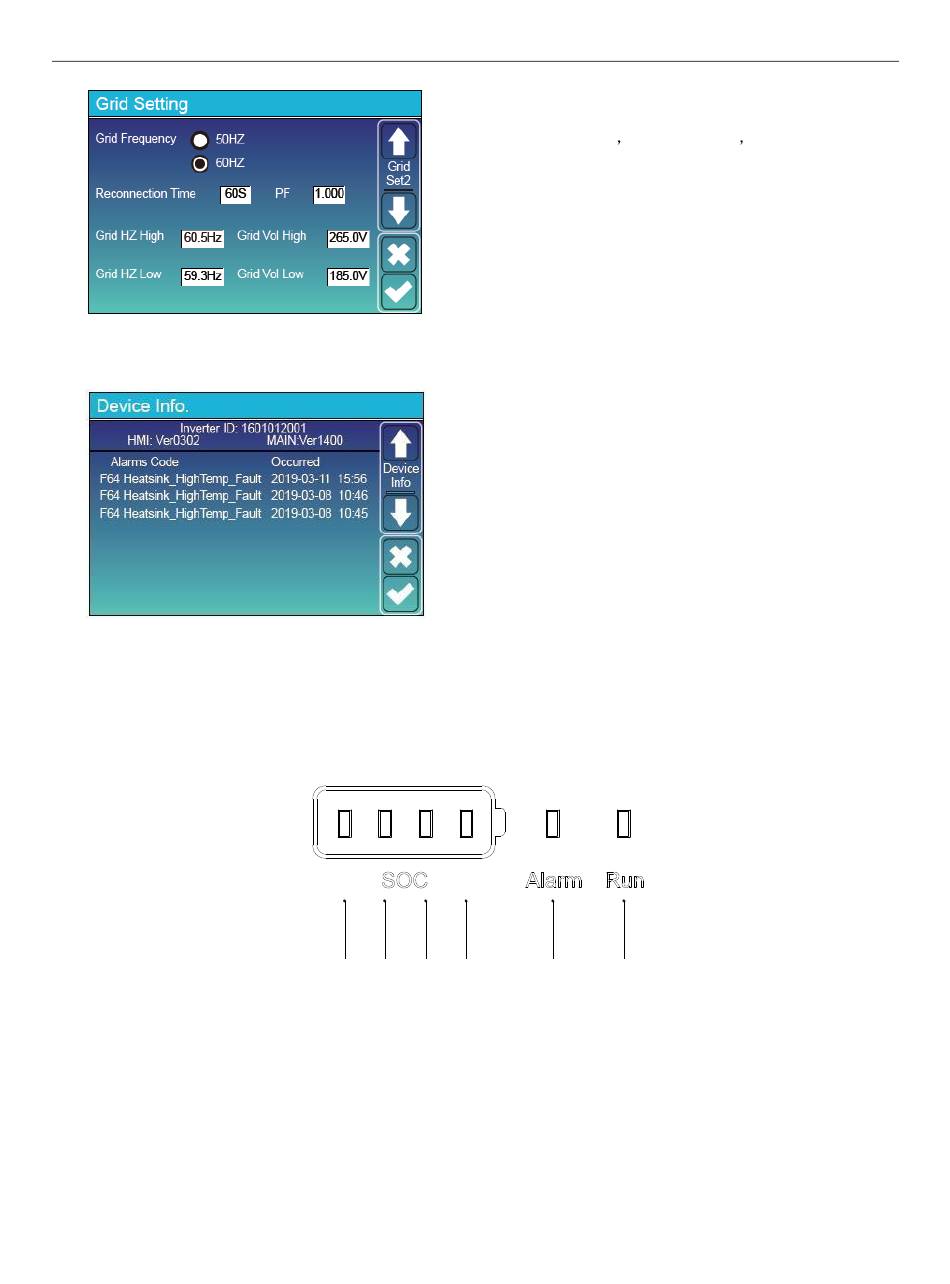

This page show Inverter ID, Inverter version and alarm
codes.
HMI: LCD version MAIN: MCU version
LED1 LED2 LED3 LED4
Picture 4-2 Intent of battery display window
LED5 LED6
