4. Operation Guide

4.1 Battery DIP Switch Setting

There is no need to set the dialing address for the battery. The system is already set at the factory.
Note:
1. The battery with the address set to 0000 is the host, and it is connected to the inverter through RS485.
2. The matching resistor is installed on the CAN1 port of the last battery.

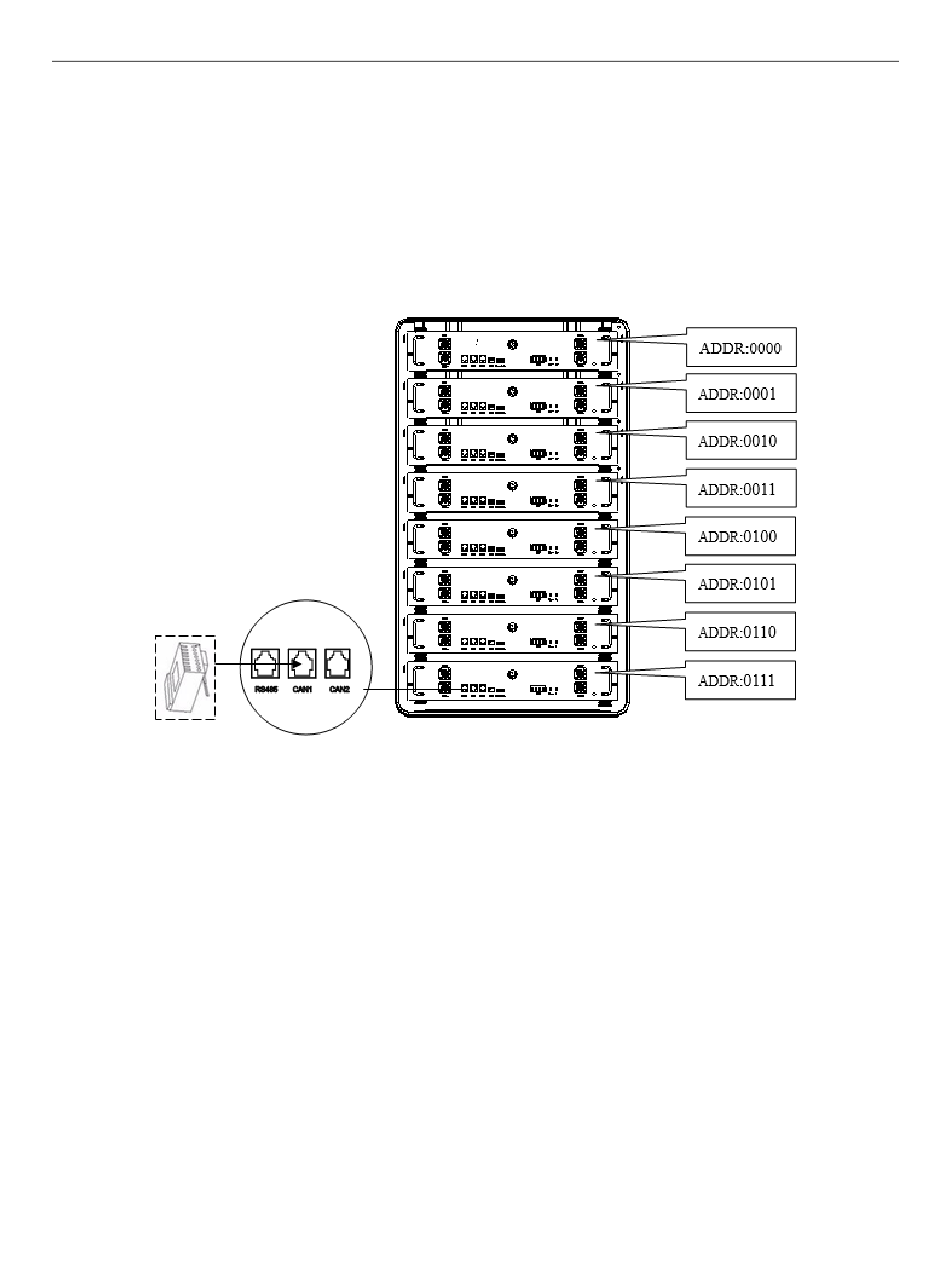

Picture 4-1 Schematic diagram of setting the battery DIP switch
