Summary of Contents for Sirius Satellite Radio Xact XS025

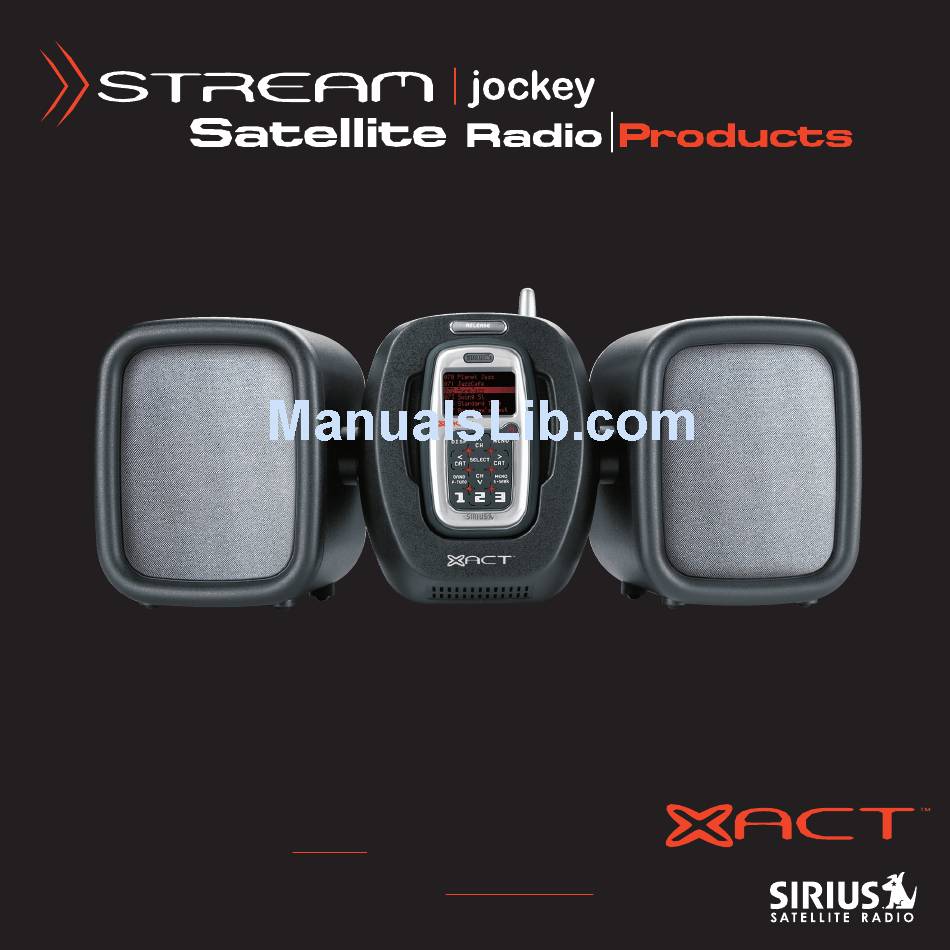

- Page 1 Sound System Portable Boom Box Instruction Manual Model XS025 To activate your Satellite Radio Receiver or for latest news and questions regarding SIRIUS ® Satellite Radio service visit sirius.com or call 1-888-539-SIRIUS (7474). For accessory & product information visit us at www.getxact.com.
- Page 2 KEEPONLISTENING...
- Page 3 ® © 2004 SIRIUS Satellite Radio Inc. "SIRIUS" and the SIRIUS Satellite Radio Inc. To activate your Satellite Radio Receiver or for latest news and questions regarding SIRIUS ® Satellite Radio service visit sirius.com or call 1-888-539-SIRIUS (7474).
-
Page 4: Cautions And Warnings
6. When outdoors, position your Boom Box and antenna where there are no obvious satellite radio signal obstructions such as high terrain, trees, overhangs, etc. - Page 5 SAFETY PRECAUTIONS Danger Be aware of the following precautions to prevent fire and avoid personal injury: 1. To avoid short circuits, never put or leave any metallic objects (coins, tools, etc.) inside the device. 2. If the device emits smoke or strange smells, turn the power off immediately and contact your dealer. 3.
-
Page 6: Table Of Contents
TABLE OF Introduction Product Overview Package Contents Components Guide Boom Box Setup Installing the Satellite Antenna Installing the Power Cable Installing Batteries Antenna Aiming SIRIUS ® Satellite Map Specifications Problem Solving Care and Maintenance Warranty CONTENTS Page 2 Page 2 Page 2 Page 3 Page 5... -
Page 7: Introduction
In the event that any item is missing or if you find any mismatch or damage, promptly contact your dealer. Your Xact Sound System Portable Boom Box must be used in conjunction with The XTR1 Xact Stream | Jockey SIRIUS ®... -
Page 8: Components Guide
COMPONENTS Sound System Portable Boom Box The Xact Sound System Portable Boom Box provides two controls. There is a Power On/Off-Volume control and a Slide function control to switch between Satellite Radio or auxiliary audio input signal. Headphone Jack: A stereo headphone jack allows you to listen to your Satellite Radio privately. - Page 9 Battery Doors: Remove the doors to insert the 8 “D” Batteries not included. AUX OUT Jack: In the SAT position, the satellite radio audio signal is present at the AUX output jack. SAT/AUX Selector switch: The slide switch allows you to switch between Satellite Radio and an external audio input signal (MP3, CD etc.) witch is present at the AUX input jack.
-
Page 10: Boom Box Setup
BOOM BOX To set up your Xact Sound System Portable Boom Box Place the Stream | Jockey Satellite Receiver in the cradle as shown so that the guides are lined up with the Boom Box cradle. Then rotate the receiver forward to engage the connectors. The receiver will lock in place. -
Page 11: Installing The Satellite Antenna
Installing the Satellite Antenna Install the Antenna into the Antenna Jack as shown. Installing the Power Cable Install the adapter into the Power Jack as shown. -
Page 12: Installing Batteries
Installing Batteries (optional) Your Boom Box can also be used with 8 D-Cell batteries as shown: 1. Push the battery cover latches forward and remove the battery compartment covers. 2. Insert the 8 D-Cell batteries follow the battery polarity as shown; then close the cover. Note: The batteries are bypassed automatically whenever the supplied AC Adapter is plugged into the power jack on the back of the Boom Box. -
Page 13: Antenna Aiming
Antenna Aiming feature found on the Stream | jockey receiver. To access the Antenna Aiming Feature: Press the button on the Stream | jockey receiver’s key pad. Press the Antenna Aiming selection and press Upon entering this option, two 10-segment horizontal bar graphs are displayed with a (-) sign to the left and a (+) sign to the right. -
Page 14: Specifications
Headphone Output Impedance Headphone Output Level Headphone Connector Type Auxiliary Input Impedance Auxiliary Input Level Auxiliary Connector Type Power Overall XS025 Dimensions Overall AC adapter Dimensions XS025 Weight 5.0 Watts Rms 0.5% at 1 Watt 30Hz to 20 KHz >60dB Maximum... -
Page 15: Problem Solving
Check that the Receiver is seated correctly. Check the Power Cable or Batteries. Make sure you have disconnected the Power adapter if you wish to use the batteries. Make sure you have contacted SIRIUS ® activate your Satellite Radio subscription 1-888-539-SIRIUS (7474). When using batteries the system works intermittently Check the batteries and replace if necessary. -
Page 16: Care And Maintenance
P P e e r r i i o o d d i i c c I I n n s s p p e e c c t t i i o o n n The XS025 Boom Box should be inspected periodically for external damage. At least once every 30 days of use, perform the following checks: •... -
Page 17: Warranty
XACT Communication with the equipment, and/or loss of parts. This warranty is voided in the event any unauthorized person opens, alters, or repairs the product. - Page 18 C.O.D., freight collect. NOTE: A product received which was not made by XACT Communication or which is not defective as determined by our test procedures will not be repaired and will be returned to you C.O.D., freight collect.
- Page 19 NOTES...
- Page 20 To activate your Satellite Radio Receiver or for latest news and questions regarding SIRIUS ® Satellite Radio service visit sirius.com or call 1-888-539-SIRIUS (7474). Call Toll Free 1-866-466-XACT (9228) or Visit our Website: www.getxact.com...
