Summary of Contents for Sirius Satellite Radio SUBX1

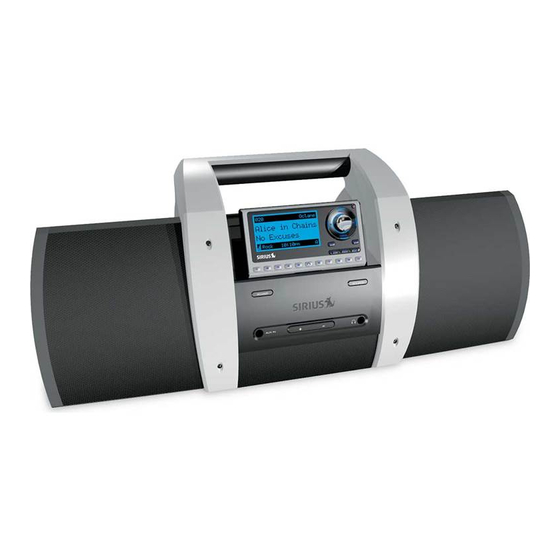

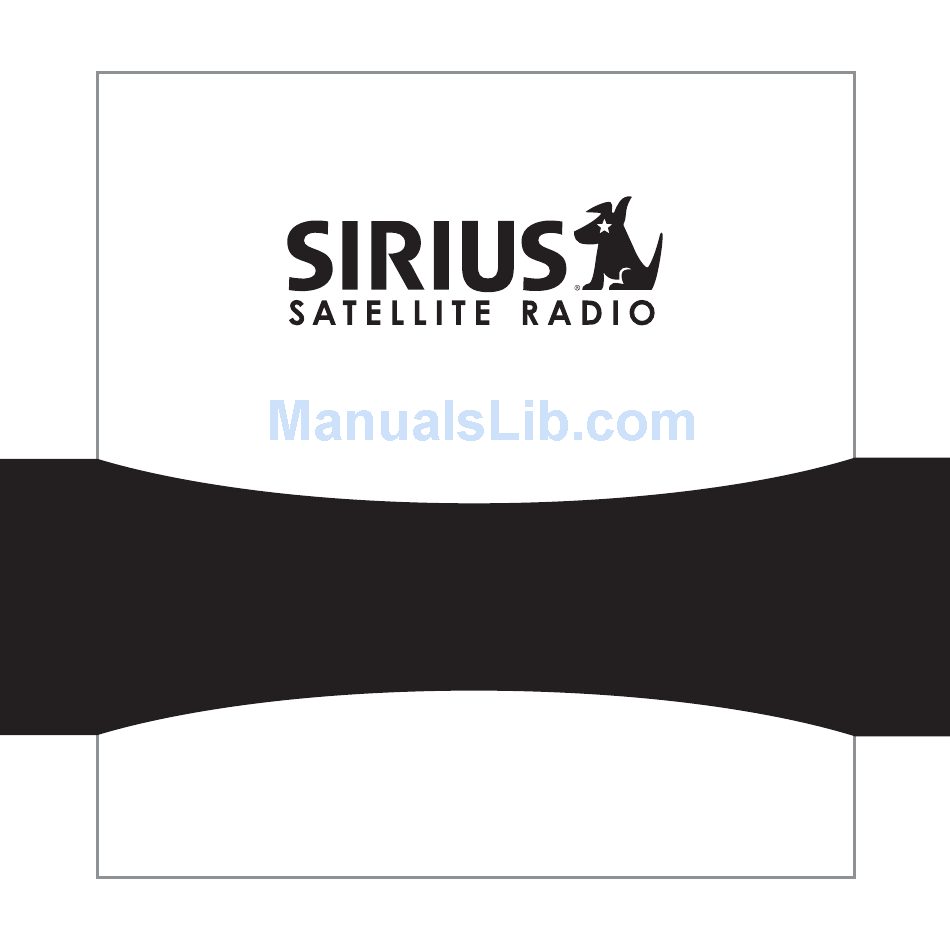

- Page 1 SUBX1 SIRIUS Plug and Play Boombox For use with most newer SIRIUS Plug and Play Receivers User Guide...
- Page 2 Congratulations on the Purchase of your new SUBX1 SIRIUS Plug and Play Boombox! Your new SUBX1 SIRIUS Plug and Play Boombox lets you enjoy SIRIUS ® Satellite Radio’s digital entertainment in your home, office, or other location. Use this manual as a guide for the installation.
-
Page 3: Table Of Contents
Table of Contents TaBle oF ConTenTS WaRnIng and SaFeTy InFoRmaTIon Safety Precautions ....... . 4 Warnings . -
Page 4: Warning And Safety Information
Warning and Safety Information Safety Precautions Be sure to observe the following warnings. Failure to follow these safety instructions and warnings may result in a serious accident and/or personal injury. • Installation must be performed according to this installation guide. SIRIUS is not respon- sible for issues arising from installations not performed according to the procedures in this guide. -
Page 5: Copyrights & Trademarks
Copyrights & Trademarks © 2006 SIRIUS Satellite Radio Inc. All Rights Reserved. ® “SIRIUS”, the SIRIUS dog logo, channel names and logos are trademarks of SIRIUS Satel- lite Radio Inc. All Rights Reserved. Hardware, subscription, and activation fee required. For full Terms & Conditions, visit http://sirius.com. -
Page 6: Package Contents
Package Contents The following items are included with your purchase of the SUBX1 SIRIUS Plug and Play Boombox. Unpack the kit carefully and make sure that everything shown is present. If anything is missing or damaged, or if the Boombox fails to operate properly, notify your dealer immedi- ately. -
Page 7: Controls
Controls Figure 1 and the section following identify and describe the buttons and connectors of the Boombox. LOCK POWER SOURCE AUX IN Power On/Off Button: Turns the Boombox power On or Off. Power On/Low Battery Light: This light is green when the Boombox is powered on. The light will turn red when the batteries in the Boombox are nearly discharged and need replacement. -
Page 8: Installation
Installation Docking the SIRIUS Receiver If your receiver is a SIRIUS Plug and Play series ST or SV, you will need to install the Docking Adapter provided with the kit. Refer to Figure Boombox, positioning it behind the docking connector and against the backrest. Then slide the Lock button to the left to lock the adapter in the Boombox. -
Page 9: Installing The Indoor/Outdoor Antenna For Indoor Use
Installing the Indoor/Outdoor Antenna for Indoor Use When using the boombox indoors read this entire section before installing the indoor/outdoor antenna. To ensure consistent reception of the SIRIUS signal indoors, it is important that the antenna be oriented correctly. Note the following considerations for antenna placement: BEST reception can be achieved by placing the antenna outside on the roof, with a clear 360 degree view of the sky. - Page 10 WEST Use the map to find the area you are located in (1 to 5). Then find the direction in which you need to have a clear view of the sky: area 1: You will need a window or outdoor location with a clear view of the sky facing eaST or noRTheaST or SoUTheaST area 2: You will need a window or outdoor location with a clear view of the sky facing noRTh or noRTheaST...
- Page 11 For example, suppose you live in area 2. You determined that your antenna will need to have a clear view of the sky facing north or northeast. The exact direction is determined by your specific location in area 2 relative to the X on the map: If you live in Texas, you will need a more north facing clear view of the sky whereas if you live in southern California, you will need a more northeast facing clear view of the sky.
-
Page 12: Connecting The Ac Power Adapter
Connect the AC power cord to the AC Power Adapter and plug it into an AC outlet. Subscribing to the SIRIUS Service If you have not yet subscribed your receiver to the Sirius Satellite Radio service, you’ll need to subscribe before you can listen to your receiver. To subscribe, do the following: Be sure that the SIRIUS receiver is correctly installed as described in this manual, is in the Boombox, and that the antenna is oriented to receive the SIRIUS signal. -
Page 13: Operation
Operation Once the Boombox has been installed according to the installation directions, power on the Boombox by pressing the Power On/Off button on the front panel. The light on the front panel of the Boombox should light green to indicate the power is on. If the receiver does not power on at the same time, press the Power On/Off button on the receiver. -
Page 14: Troubleshooting
Troubleshooting Symptom Boombox does not The AC Power Adapter is not connected, or the AC outlet into power on which it is plugged is not working. Check that the AC Power Adapter is connected to the Boombox. Try plugging the AC Power adapter into a different outlet. -
Page 15: Optional Accessories
Optional Accessories The following optional accessory is available for purchase from your SIRIUS retailer to maxi- mize your SIRIUS experience: directed 14230 50 ft SIRIUS antenna extension The antenna extension cable extends the reach of your SIRIUS antenna cable by an additional 50 ft. -
Page 16: Warranty
Warranty 12 month Warranty SIRIUS Satellite Radio Inc. (the “Company”) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s option) without charge for... -
Page 17: Specifications
Specifications Nominal Output Power per Channel ........5 Watts RMS Total Harmonic Distortion (THD) . -
Page 18: Sirius Id
SIRIUS ID Write down the SIRIUS ID (SID) of your SIRIUS receiver in the space provided below. SID: SIRIUS ID... - Page 19 SIRIUS Customer Service: 1-888-539-7474 customercare@sirius-radio.com SIRIUS Satellite Radio Inc. 1221 Avenue of the Americas New York, NY 10020 1-888-539-7474 http://www.sirius.com...
- Page 20 SIRIUS Satellite Radio Inc. 1221 Avenue of the Americas New York, NY 10020 (800) 869-5590 http://sirius.com SIRIUS SUBX1 (061906a)
