Summary of Contents for Sirius Satellite Radio Xact XS025

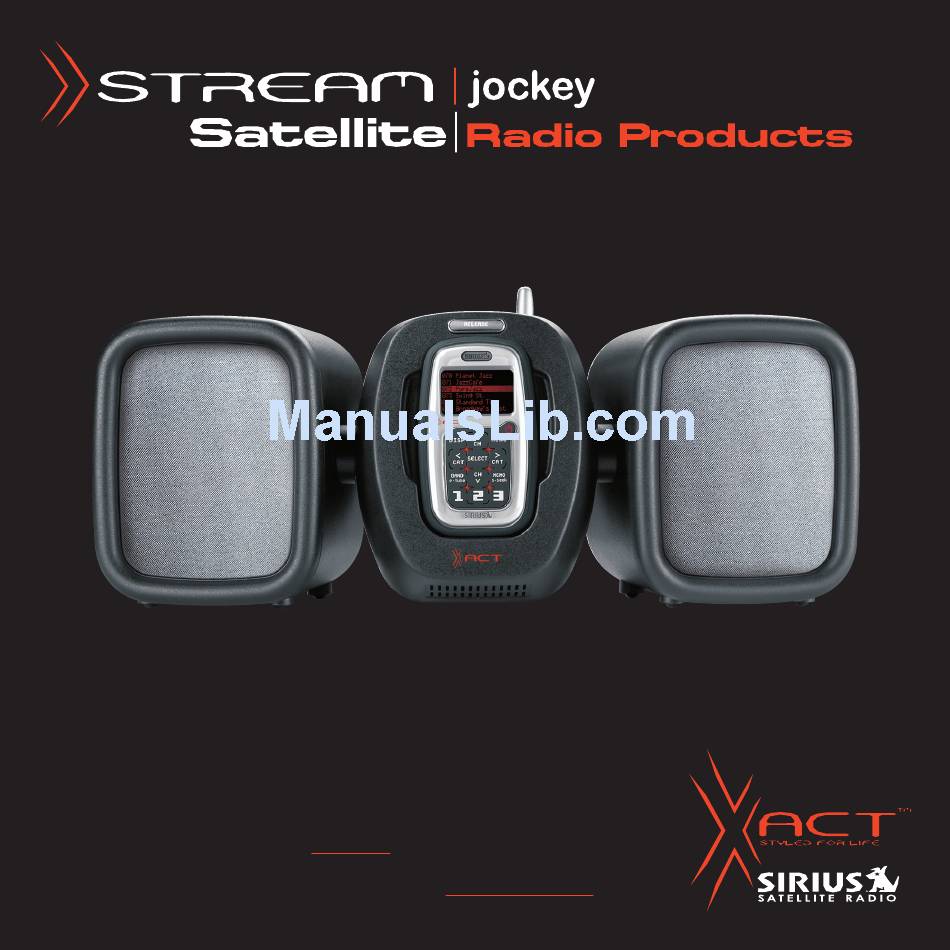

- Page 1 Sound System Portable Boombox Instruction Manual Model XS025 To activate your Satellite Radio Receiver or for latest news and questions regarding SIRIUS ® Satellite Radio service visit sirius.com or call 1-888-539-SIRIUS (7474). For accessory & product information visit us at www.getxact.com.
- Page 2 KEEPONLISTENING...
- Page 3 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 4: Cautions And Warnings
SAFETY Cautions and Warnings Follow these warnings and safety considerations, serious accidents and/or personal injury can be avoided: 1. Installation must be performed according to this user guide. 2. Do not install the Boombox in a position that obstructs viewing of any home entertainment component, such as Television, or stereo system indicators and displays. - Page 5 SAFETY PRECAUTIONS Danger Be aware of the following precautions to prevent fire and avoid personal injury: 1. To avoid short circuits, never put or leave any metallic objects (coins, tools, etc.) inside the device. 2. If the device emits smoke or strange smells, turn the power off immediately and contact your dealer. 3.
-
Page 6: Table Of Contents
TABLE OF Introduction Product Overview Package Contents Components Guide Boombox Setup Installing the Satellite Antenna Installing the Power Cable Installing Batteries Antenna Aiming SIRIUS ® Satellite Map Specifications Problem Solving Care and Maintenance Warranty CONTENTS Page 2 Page 2 Page 2 Page 3 Page 5 Page 6... -
Page 7: Introduction
INTRODUCTION Product Overview Thank you for purchasing this product! Your new Xact Sound System Portable Boombox is specifically designed for the XTR1 Xact Stream | Jockey SIRIUS Package Contents Carefully unpack your kit box and ensure that you have the following items. •... -
Page 8: Components Guide
COMPONENTS Sound System Portable Boombox The Xact Sound System Portable Boombox provides two controls. There is a Power On/Off-Volume control and a Slide function control to switch between Satellite Radio or auxiliary audio input signal. Headphone Jack: A stereo headphone jack allows you to listen to your Satellite Radio privately. Release Button: Press this button to release and remove the Stream | Jockey Satellite Receiver from the cradle. - Page 9 COMPONENTS Sound System Portable Boombox Battery Doors: Remove the doors to insert the 8 “D” Batteries not included. AUX OUT Jack: In the SAT position, the satellite radio audio signal is present at the AUX output jack. SAT/AUX Selector switch: The slide switch allows you to switch between Satellite Radio and an external audio input signal (MP3, CD etc.) witch is present at the AUX input jack.
-
Page 10: Boombox Setup
BOOM BOX To set up your Xact Sound System Portable Boombox Place the Stream | Jockey Satellite Receiver in the cradle as shown so that the guides are lined up with the Boombox cradle. Then rotate the receiver forward to engage the connectors. The receiver will lock in place. Turn on the power by rotating the VOL control clockwise from the off position. -
Page 11: Installing The Satellite Antenna
Installing the Satellite Antenna Install the Antenna into the Antenna Jack as shown. Installing the Power Cable Install the adapter into the Power Jack as shown. -
Page 12: Installing Batteries
Installing Batteries (optional) Your Boombox can also be used with 8 D-Cell batteries as shown: 1. Push the battery cover latches forward and remove the battery compartment covers. 2. Insert the 8 D-Cell batteries follow the battery polarity as shown; then close the cover. Note: The batteries are bypassed automatically whenever the supplied AC Adapter is plugged into the power jack on the back of the Boombox. -
Page 13: Antenna Aiming
Antenna Aiming Note: This adjustment setting is required only when you use your device at home. This way, you can assure optimum reception when mounting your SIRIUS Upon entering this option, two 10-segment horizontal bar graphs are displayed with a (-) sign to the left and a (+) sign to the right. -
Page 14: Specifications
Headphone Output Impedance Headphone Output Level Headphone Connector Type Auxiliary Input Impedance Auxiliary Input Level Auxiliary Connector Type Power Overall XS025 Dimensions Overall AC adapter Dimensions XS025 Weight 5.0 Watts Rms 0.5% at 1 Watt 30Hz to 20 KHz >60dB Maximum... -
Page 15: Problem Solving
PROBLEM SOLVING Problem Solving Section For your assistance, we have listed a few common problems below. The System does not work Check that the Receiver is seated correctly. Check the Power Cable or Batteries. Make sure you have disconnected the Power adapter if you wish to use the batteries. Make sure you have contacted SIRIUS ®... -
Page 16: Care And Maintenance
P P e e r r i i o o d d i i c c I I n n s s p p e e c c t t i i o o n n The XS025 Boombox should be inspected periodically for external damage. At least once every 30 days of use, perform the following checks: •... -
Page 17: Warranty
WARRANTY W W a a r r r r a a n n t t y y I I n n f f o o r r m m a a t t i i o o n n X X A A C C T T C C o o m m m m u u n n i i c c a a t t i i o o n n One-Year Limited Warranty This limited warranty sets forth all XACT Communication responsibilities regarding your product. - Page 18 WARRANTY W W h h a a t t T T o o D D o o f f o o r r W W a a r r r r a a n n t t y y S S e e r r v v i i c c e e During the first thirty (30) days, a defective product is eligible for over-the-counter exchange at the retailer from whom it was purchased.
- Page 19 NOTES...
- Page 20 To activate your Satellite Radio Receiver or for latest news and questions regarding SIRIUS ® Satellite Radio service visit sirius.com call 1-888-539-SIRIUS (7474). Call Toll Free 1-866-466-XACT (9228) or Visit our Website: www.getxact.com...
