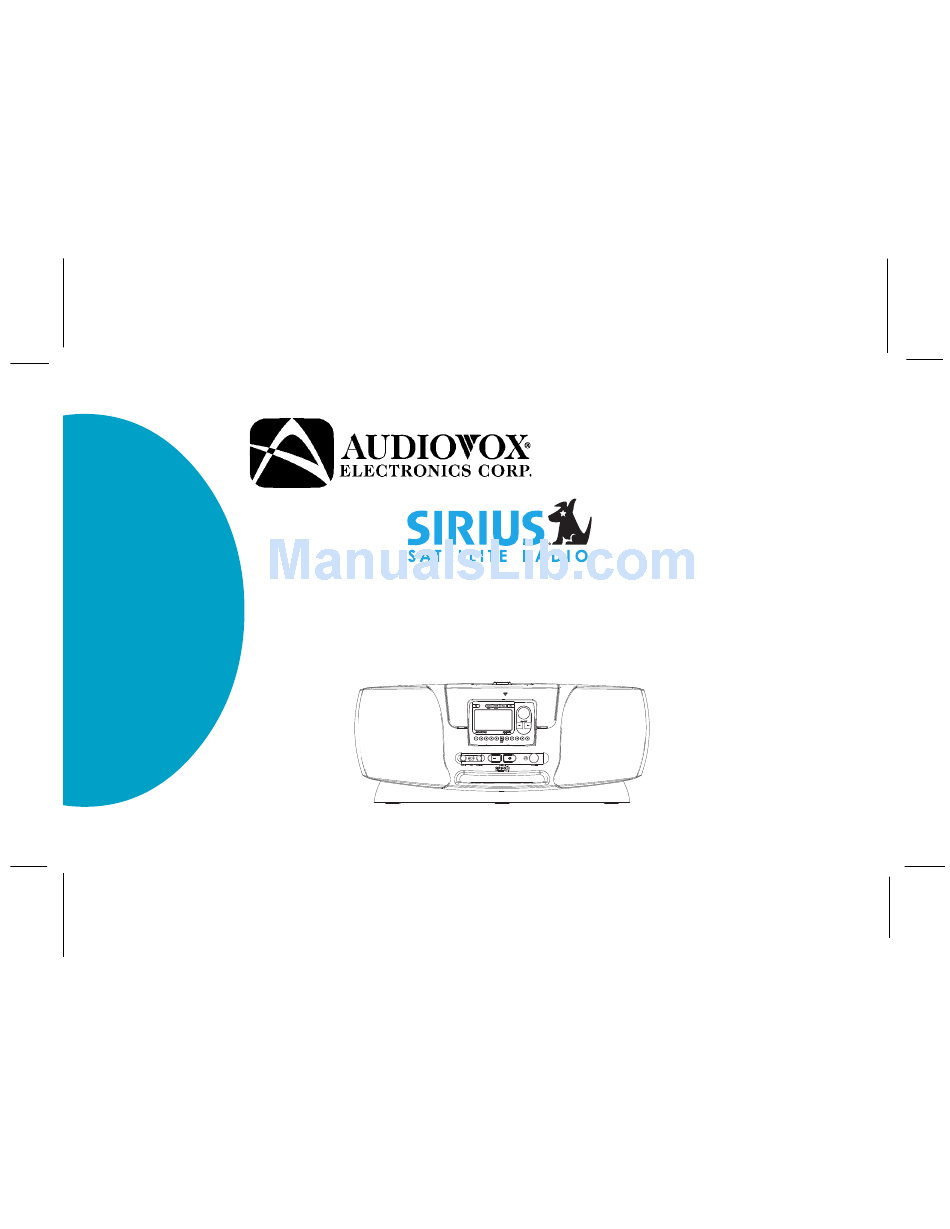

- Page 1 SHUTTLE BOOM BOX SIR-BB3 User Guide AUDIO OX 128-7266A Released 9-15-04. Revision A: 10-28-04. Changed front cover and added Sirius Legal Stament (page 2). 1 of 12...
- Page 2 You are one step closer to experiencing the latest innovation in Sirius Satellite Radio. Sirius will revolutionize your portable in-home, vehicle and family entertainment, such as camping trips and beach excursions, using the Sirius Model SIR-BB3 Boom Box as the base receptacle for your Shuttle Receiver. Sirius entertainment will enhance your listening enjoyment with: •...
-
Page 3: Fcc Regulations
Television, or stereo system indicators and displays. 2. Do not install or use the SIR-BB3 in locations exposed to direct sunlight, or in areas subject to extreme temperatures; do not operate the unit in moist areas, in rain, or in areas adjacent to water such as pools, hot tubs, etc. -
Page 4: Installation/Wiring Precautions
Contents SIR-BB3 Users Guide P/N 128-7266A (P/N 118C1129) AC/DC Power Adapter (P/N 136C3585) 1 pc. AC Power Cord 1 pc. (P/N 112B3376) Boom Box (P/N SIR-BB3) AUDIO OX 1 pc. Installation/Wiring Precautions 1. If using the adapter, make sure the adapter cable... - Page 5 Box. 4. VOLUME +/- Pushbuttons: Increase or decrease the volume of the audio output signal from the SIR-BB3. To increase the volume level, press the + pushbutton; to decrease the volume level, press the - pushbutton. NOTE: When the PNP3 shuttle is installed, the Volume buttons on the Remote Control unit will control the audio output of the Boom Box.
- Page 6 SIR-BB3 by following the interconnect diagram. 3. Installing the Shuttle in the SIR-BB3 Install the shuttle as follows: 1. Press the EJECT button at the top of the SIR-BB3 to BOTTOM OF open the spring-loaded cover. Carefully line up the...
-
Page 7: Interconnect Diagram
Lower the PNP cover into position over the Shuttle; This will prevent accidental Shuttle disconnect. Apply power to the SIR-BB3 by pressing the Power ON/OFF button; the LED indicator lights green. If the Shuttle does not turn on at the same time, press the red Power On/Off button in the upper left corner of the Shuttle front panel. - Page 8 (if indoors) and disconnect the antenna cable. d. Plan the routing of the antenna cable to the SIR-BB3 ANT input when indoors. Make sure you avoid any obstructions that could crimp, kink or twist the cable;...
-
Page 9: Specifications
Headphone Output Impedance Headphone Output Level Headphone Connector Type Auxiliary Input Impedance Auxiliary Input Level Auxiliary Connector Type Equalizer Frequency Overall SIR-BB3 Dimensions Overall AC Adapter Dimensions SIR-BB3 Weight 5.0 Watts Rms 0.3% at 1 Watt 30Hz to 20kHz >... -
Page 10: Maintenance
Maintenance Periodic Inspection The SIR-BB3 Boom Box should be inspected periodically for external damage. At least once every 30 days of use, perform the following checks: Inspect the 20-pin Shuttle connector for loose, bent or broken pins, misalignment, etc.; make sure the SAT connector is intact and exhibits no apparent damage. -
Page 11: Troubleshooting
Troubleshooting l t t t i l l t t -11- l t t l t t t i l l t t t i l 128-7266A 11 of 12... -
Page 12: 12 Month Limited Warranty
AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
