Permalog Plus User Manual
HWM-Water Ltd
Ty Coch House
Llantarnam Park Way
Cwmbran
NP44 3AW
Permalog Plus User Manual
United Kingdom
MAN-031-0001
Issue D
Tel: +44 (0) 1633 489479
Fax: +44 (0) 1633 877857
Date 15/12/17
Email: sales@hwm-water.com
Updated by AB
Web: www.hwmglobal.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Permalog PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HWM Permalog PLUS

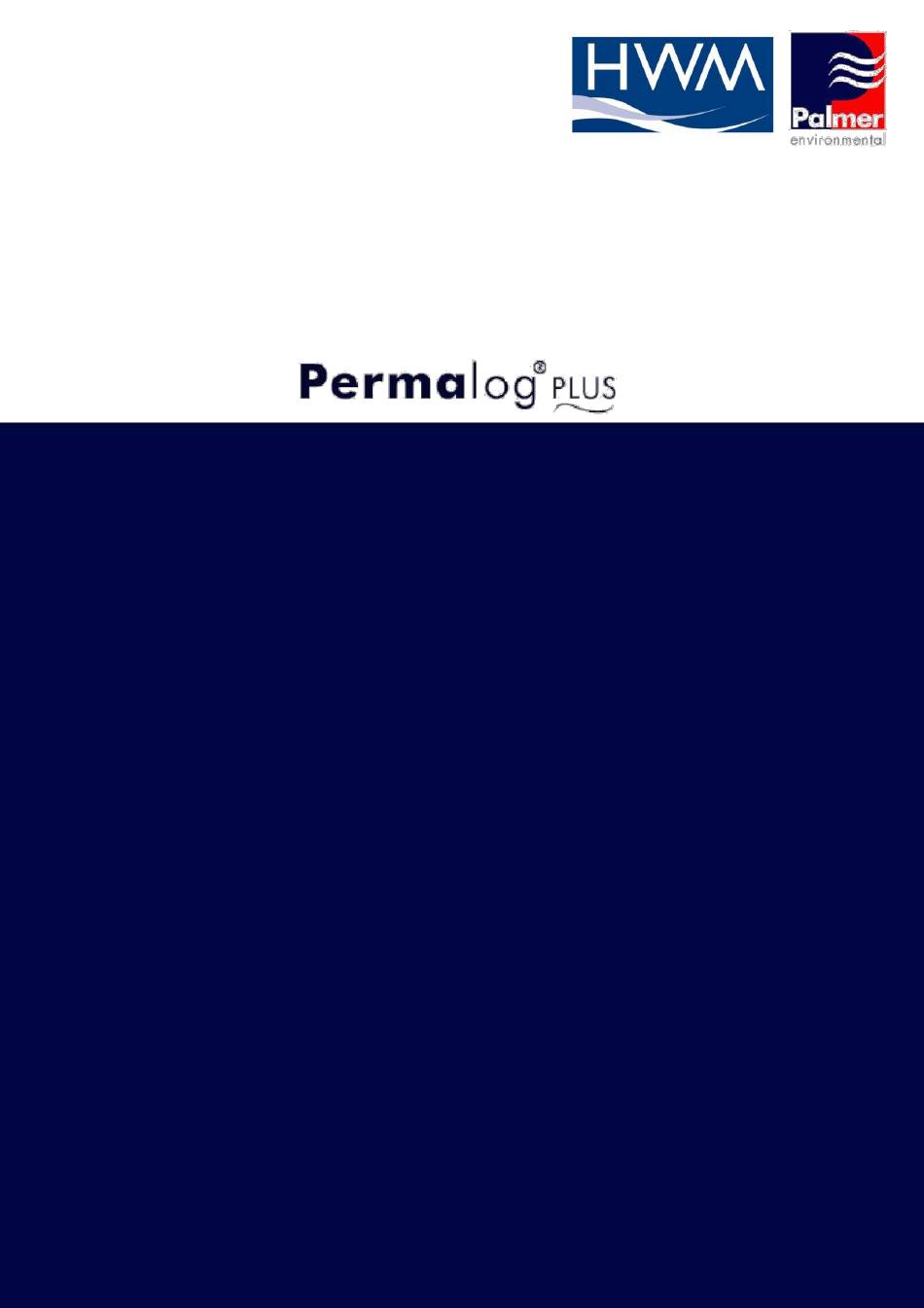

  • Page 1 Permalog Plus User Manual HWM-Water Ltd Ty Coch House Llantarnam Park Way Cwmbran NP44 3AW Permalog Plus User Manual United Kingdom MAN-031-0001 Issue D Tel: +44 (0) 1633 489479 Fax: +44 (0) 1633 877857 Date 15/12/17 Email: sales@hwm-water.com Updated by AB...
  • Page 2: Table Of Contents

    Contents Contents Page 2 Introduction Page 3 Benefits of Use Page 4 Warnings Page 5 Important Notes Page 6 Permalog Plus Features Page 7 Deployment Page 8 Redeployment Page 8 User Interface Page 9 Technical Specification Page 11 Contact Page 12...
  • Page 3: Introduction

    Introduction Permalog® Plus is the very latest in a highly successful line of permanent and semi- permanent leak noise loggers. This logger can be used as both a traditional leak noise logger, and as a "drive by" logger. Permalog® Plus leak noise loggers are deployed throughout the water distribution net-work to provide continuous surveying of leakage.
  • Page 4: Benefits Of Use

    With over 200,000 units deployed worldwide, it’s easy to see why the Permalog range is one of the most highly respected Leak Noise Loggers in the industry. HWM-Water Ltd, your gateway to the latest technology, solutions and services.
  • Page 5: Warnings

    Warnings Canadian warning statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter (10962A-031) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated.
  • Page 6: Important Notes

    Permalog® Plus units have no user serviceable parts. The en-closure protects the user from electrical shocks and other hazards. Servicing must be referred to competent personnel. If any unit does not appear to function correctly then it must be returned to HWM- Water Ltd or an authorised HWM representative.
  • Page 7: Permalog Plus Features

    Permalog® Plus Features The Permalog® Plus logger is a fully sealed non-user serviceable unit. A hermetic seal protects the internal battery, radio module and electronics from particle or fluid ingress and is mechanically strong enough to withstand extreme environmental conditions such as ground frost, flooding, heat and humidity.
  • Page 8: Deployment

    Deployment Ensure the screw thread for the antenna is clean, before hand-tightening the antenna to the Permalog® Plus logger. If optional lifting hooks have been purchased, please ensure these are fitted tightly. Start/reset* the Permalog® Plus logger by passing a magnet close to and across the communication LED.
  • Page 9: User Interface

    User Interface Permalog® Plus loggers are designed with a battery life span of up to 5* years. To achieve this the logger will spend most of its operating life in a sleep state. While in this state, all components in the logger are switched off unless the logger is awakened for pre-configured activities.
  • Page 10 User Interface (Continued) The LED is primarily used to signify whether the logger is in leak or no leak mode. Other features indicated by the LED are: Low Battery Warning: Red LED flashes every second. Logger Reset/Woken: A short sequence of red and green flashes. No Illumination: Logger is in Storage mode ( full sleep) or battery failure.
  • Page 11: Technical Specification

    Technical Specification Logger Dimensions: Width: 50mm Height: 122mm Height (with EU antenna): 196mm Height (with US antenna): 180mm Weight: Without Antenna: 610 g With Antenna: 625 g Antenna: Type: Helical TNC Gain: 0dB Impedance: 50Ohms Antenna Connector: Type: TNC Impedance: 50Ohms Environmental Protection: IP68 Water Proof to 4m...
  • Page 12: Contact

    Tel: +44 (0) 1633 489479 Fax: +44 (0) 1633 877857 General Enquires and Technical Support: sales@hwm-water.com Technical support: support@hwm-water.com Web: http://www.hwmglobal.com Note HWM-Water Ltd reserves the right to change products, services or specifications without notice. Permalog Plus User Manual MAN-031-0001 Issue D Date 15/12/17...
