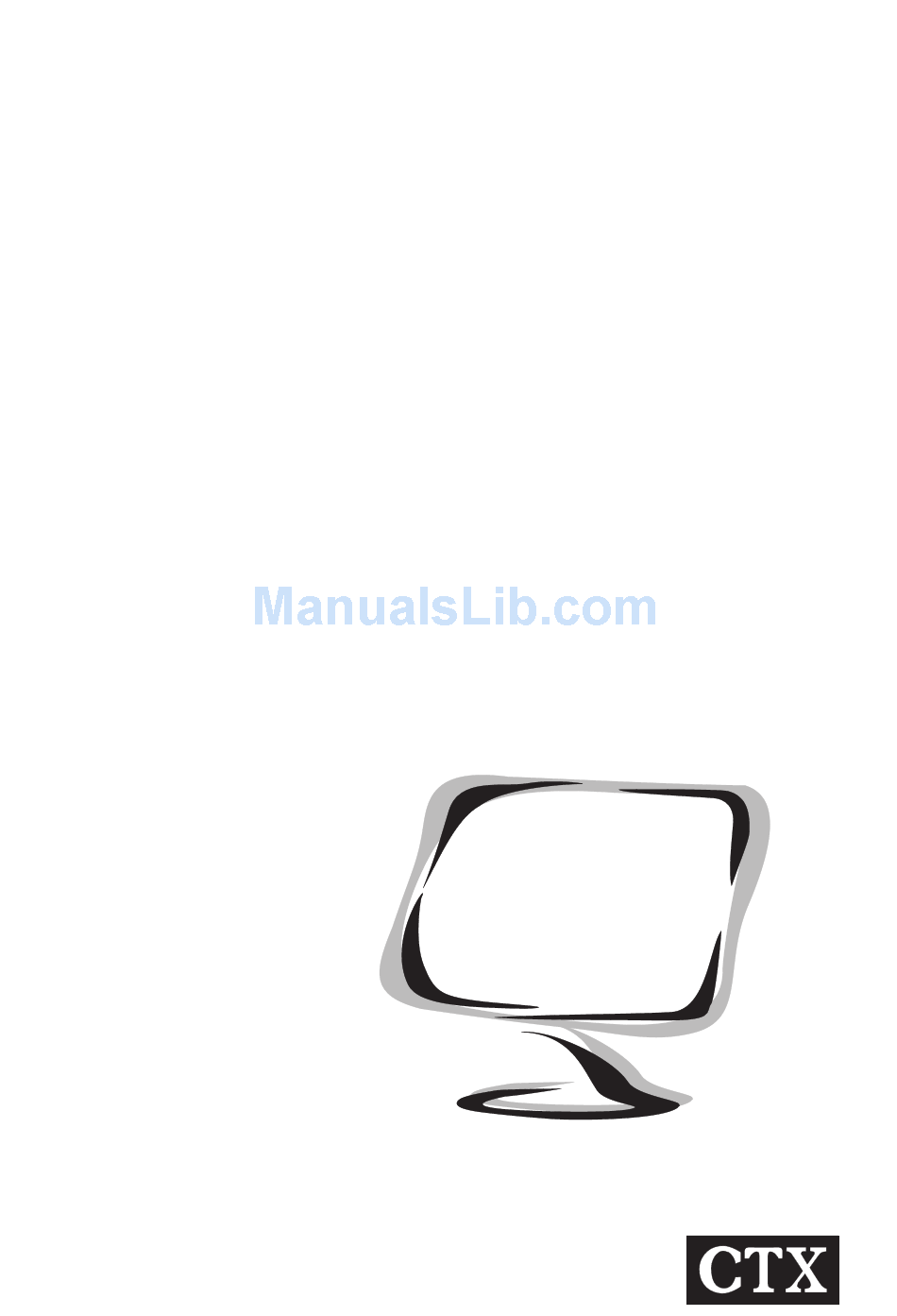

- Page 1 User's Manual P772L LCD Monitor...
-
Page 2: Federal Communications Commission (Fcc) Statement
Federal Communications Commission (F.C.C.) Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 3 Some of the features of the TCO'03 Display requirements: Ergonomics • Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.
-
Page 4: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ... 2 INTRODUCTION ... 3 Product Description ... 3 Package Overview ... 3 Installation of the Monitor Arm ... 4 Recommended Use of the Monitor ... 5 LCD Monitor Base Installation Guide ... 6 Guidelines for Operating the Viewing Angle of LCD Monitor ... -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read the following instructions carefully. This manual should be retained for future reference. 1. To clean the LCD Monitor screen make sure the Monitor is in the power off mode. Unplug the Monitor from its power source before cleaning it. Stand away from the LCD Monitor and spray cleaning solution onto a rag. -
Page 6: Introduction

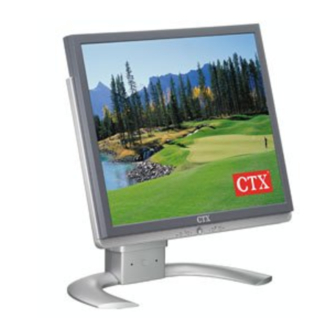

Product Description Congratulations on purchasing this new generation monitor. Your LCD monitor incorporates high quality display into a small light-weight module. It has power-saving capabilities and emits no X-ray radiation. The features are: • 17" TFT Liquid Crystal Display • Compatible with IBM VGA, VESA •... -
Page 7: Installation Of The Monitor Arm
INTRODUCTION Installation of the Monitor Arm CAUTION 1. The Monitor Arm is an optional item. 2. The Arm Mounting Device must be VESA Flat Physical Mounting Interface Standard. 3. Please fix LCD monitor to monitor arm with 4x12mm screw. ♦♦♦... -
Page 8: Recommended Use Of The Monitor
Recommended Use of the Monitor • Power – Use the type of power indicated on the marking label. • Plugs – Do not remove any of the prongs of the monitor's three-pronged power plug. – Disconnect the power plug from the AC outlet if you are not going to use it for an indefinite period of time. -
Page 9: Lcd Monitor Base Installation Guide
LCD Monitor Base Installation Guide 1. First attach the back cover to the monitor. Carefully match up the three hinges at the top of the cover with the three corresponding slots; slide and lock into place. 2. Once the back cover is attached, you can rotate it down to a fully closed position. -
Page 10: Guidelines For Operating The Viewing Angle Of Lcd Monitor
Guidelines for Operating the Viewing Angle of LCD Monitor 1. Height Adjustment You can adjust the height of the monitor by securely holding the base with one hand and pulling up the monitor stand with the other. The height of the monitor can be be adjusted from 383.5mm to 502.5mm. -
Page 11: Controls And Adjustments
CONTROLS AND ADJUSTMENTS Once you have installed this monitor with your system, please read the instructions in this section, they give you some guidelines on how to use the monitor more efficiently. And lead you through the various functions of the user controls and explain how to adjust the monitor to your personal preference. -
Page 12: Osd Directly Adjustment
CONTROLS AND ADJUSTMENTS OSD Directly Adjustment BRIGHTNESS Press the "∇" button to enter the brightness, and press the "∇" or "∆" button to increase or decrease the brightness level, then press " ESC" button to exit. CONTRAST Press the "∆" button to enter the contrast, and press the "∇" or "∆"... -
Page 13: Auto-Tune
CONTROLS AND ADJUSTMENTS 2. Auto-Tune Here are some items which can be adjusted as below, please press " ↵ " to enter the item menu. • Auto Geometry Press " ↵ " button, the system will automatically adjust the Auto Geometry clock, phase, H-position and V-position values for optimal Press settings. -
Page 14: Color
CONTROLS AND ADJUSTMENTS 3. Color You can choose either the 6500°k, 9300°K color temperature mode, User mode or Motion Picture to store your user defined color settings. • User Mode a. Press " ↵ " button to enter User mode. b. -
Page 15: Image
CONTROLS AND ADJUSTMENTS 4. Image Here are some items which can be adjusted as below, please press " ↵ " to enter the item menu. • Clock: Press the "∇" or "∆" button to adjust the width of the screen. •... -
Page 16: Language
CONTROLS AND ADJUSTMENTS 5. Language Press the "∇" or "∆" button to select between English, German, French, Spanish or Italian languages. 6. OSD Setting To adjust the OSD position. • H - Position: Press the "∇" or "∆" button to reposition the OSD window to the right or left. -
Page 17: Energy Declaration
This display unit is an electronic product and may contain substances or materials that require end-of-life processing by a designated organization or agency. For product recycling information, please refer to the CTX website for your area: 1. Europe: <http://www.ctxeurope.com> 2. Asia: <http://www.ctx.com.tw>... -
Page 18: Troubleshooting
TROUBLESHOOTING Troubleshooting If you are experiencing trouble with the LCD display refer to the following. If the problem persists please contact your local dealer or our service center. The monitor does not respond after you turn on the system. • Check if the monitor is turned on. •... -
Page 19: Technical Information
TECHNICAL INFORMATION Compatibility This LCD monitor supports multiple operating platforms such as IBM compatible computers. This section provides you with detailed information on pin assignment of the D-Sub connector and the preset timing chart of the prevailing video standards. Pin Assignment Male Mini D-15 Connector Preset Modes Other Modes... -
Page 20: Specification
TECHNICAL INFORMATION Specifications LCD Panel [Monitor] Effective display size Resolution (max.) Displayable colors Brightness Contrast ratio Response time Scan Frequency Audio Input Audio Output User controls Power Consumption Input signal D-15 Power Supply Plug & Play [Dimension & Weight] Size (WxDxH) Weight (net) [Operating Environment] Temperature...
