RONDA startech

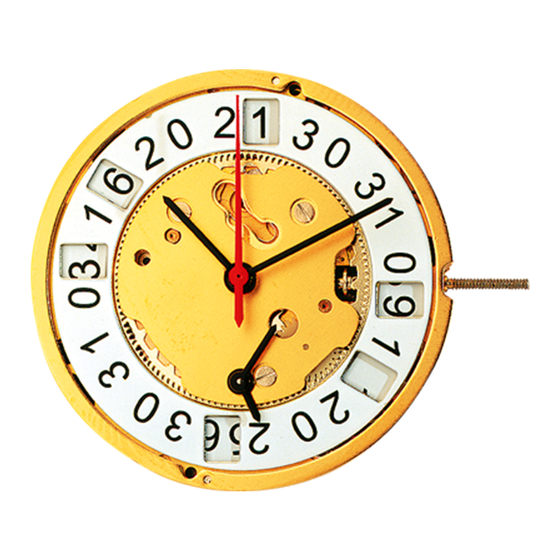

Caliber 5010.B – 12½'''

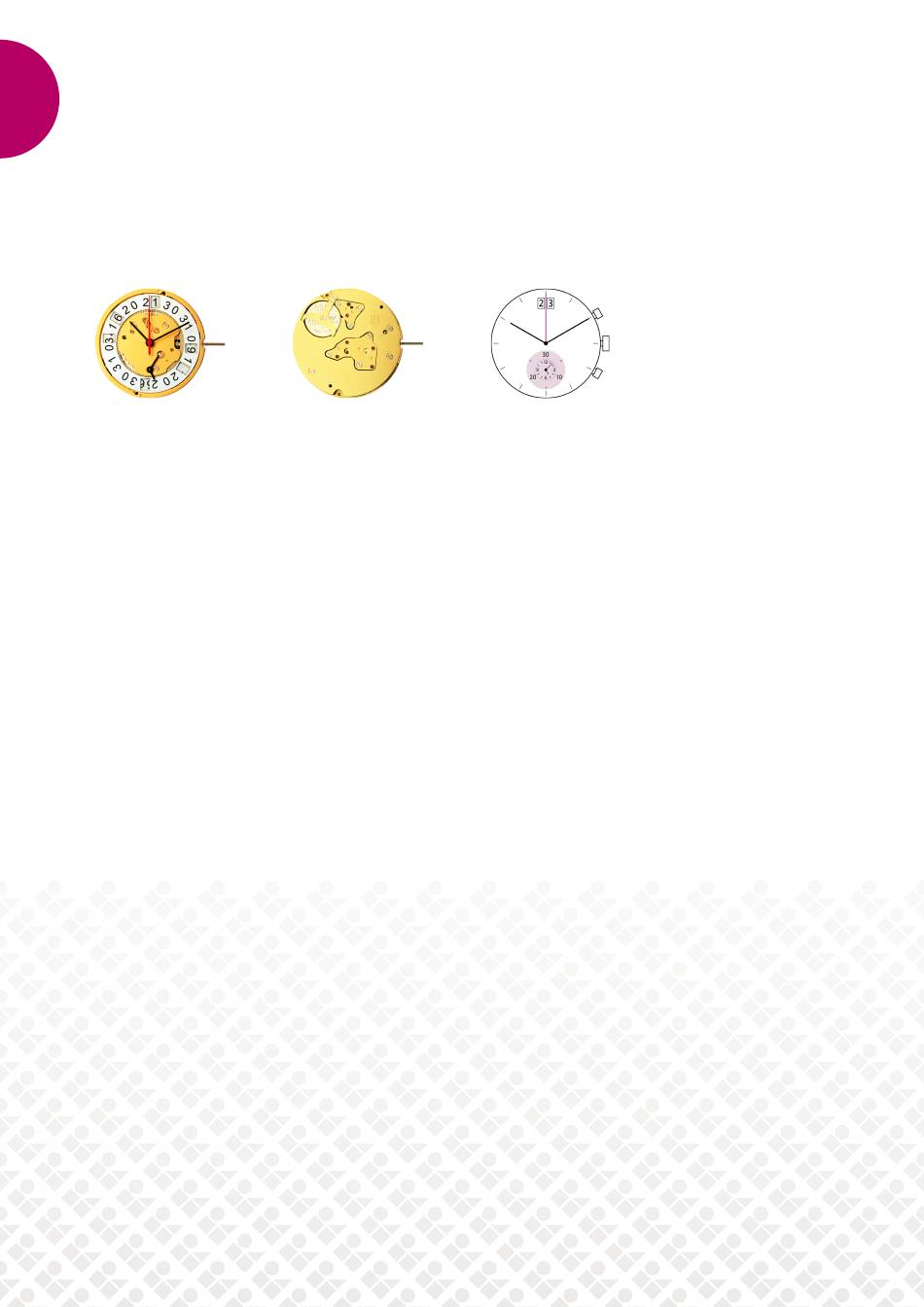

Product Specifications
Analog quartz movement
Line
Caliber
Size
Version Swiss Made
Standard battery life
Standard hand fitting height
Functions
• 30 minute / 12 hour counter
• Center stop second (1/1 sec)
• 12 hour counter
• ADD and SPLIT functions
• Chronograph
• Big date
1/2
startech
5010.B
12½'''
10 Jewels / gold plated
54 months
2
Features
• Repairable metal watch movement
• Power saving mechanism with pulled out stem:
Reduction of consumption approximately 70%
• Very easy handling by two pushers
• Big date with quick change
ronda.ch
Advertisement
Related Manuals for Ronda 5010.B
Summary of Contents for Ronda 5010.B
- Page 1 Quartz Movements Chronographs RONDA startech Caliber 5010.B – 12½''' Product Specifications Features Analog quartz movement • Repairable metal watch movement Line startech • Power saving mechanism with pulled out stem: Reduction of consumption approximately 70% Caliber 5010.B • Very easy handling by two pushers Size 12½'''...
-
Page 2: Technical Specifications
Quartz Movements Chronographs RONDA startech Caliber 5010.B – 12½''' Technical Specifications Diameter Total 28.60 mm Case fitting 28.00 mm Movement height 4.40 mm Height over standard battery 4.40 mm Movement rest 0.60 mm Height over stem 1.90 mm Length of stem travel 0.90 mm... - Page 3 10 : 1 (5 : 1) (A3H) the position must be fullfilled. For pusher angles Sous réserve de modifications of 0° (pusher A and B), see drawing 5000.345. cercle d'entourage Aenderungen vorbehalten RONDA 5010.B Gehäusering Modifications reserved movement holder No. 5000.316...
- Page 4 Winkel der Drücker A und B 10° Released Angle of pusher A and B Tolerance +/- 20 µm Ø Dp 10° ±2 Scale 10 : 1 (5 : 1) (A3H) 20° Sous réserve de modifications Aenderungen vorbehalten RONDA 4xxx.x, 5xxx.x Modifications reserved No. 5000.345...
- Page 6 0.80 0.80 0.03 0.03 Sous réserve de modifications Aenderungen vorbehalten RONDA 5010.B Inertie / Massenträgheit / Inertia * max. Modifications reserved Force de chassage / Aufpresskraft / Force max. No. 3316.076 * En cas de données différentes, veuillez contacter le service après-vente...
- Page 7 (dimensions / forces) Artikelnummer Tolerance (min) Part number 10:1 (A3) Scale 3000.040 12.00 1.90 2.60 0.90 0.90 1.35 5010.B, 5020.B, 5021.D, 5030.D, Sous réserve de modifications Aenderungen vorbehalten RONDA 5040.B, 5040.D, 5040.E, 5040.F, Modifications reserved 5050.B, 5050.C, 5051.C, 5130.B, 5130.D 5030.019...
- Page 8 T2-Instructions 5010.B Fitting dial and hands • Crown in position II • Wind crown, until date 02 appears • Crown in position III • Wind hour hand forwards, until date changes to 03 • Remove working stem • Fit dial • Point all hands towards 12 o’clock • Set time Movement holder • Zero chronograph hand* Removing setting stem • Crown in position II H5XXX.1T • Set date • Crown in position I General Instructions Date switching duration: Removing the setting stem can only be effected in Pos. I.
- Page 9 You have decided to buy a watch, which was assembled by a watch- Stop: to stop the timing, press maker using a Ronda movement. Please note that no watches are pushbutton A once more and read produced or distributed under the Ronda Brand. the chronograph counters:...
- Page 10 Put the yellow jumper between the two posts on the closer side. 3622.040 Stator Mark |Z| on stator. 3622.039 Stator (counter 6h, 9h, chrono) 3622.039 Stator (counter 6h, 9h, chrono) 10/2013 M RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 11 3007.056.CO Minute wheel (counter 24h) 3402.008.CO Minute counting wheel (24h) 2020.149.G Counter train wheel bridge Counter train wheel bridge held by 3 screws 4000.250. 4000.250 Screw 10/2013 M RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 12 Electronic module cover Electronic module cover held by 3 screws 4000.250. 4000.250 Screw 3600.010.HGF Battery 395 3601.109.G Bridle + Bridle held by 1 screw 4000.250. 4000.250 Screw 10/2013 M RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 13 Tens jumper maintaining plate held by 2 screws 4000.306. Tensioning the spring arm. 4010.306 Screw 3301.242 Hour wheel (Aig.2) 3315.016 Friction spring 3004.224.CO Date indicator driving wheel 3500.049 Date jumper 10/2013 M RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 14 Date mechanism maintaining plate held by 2 screws 4000.250. 4000.250 Screw 3506.072.G Dial support 9010.000 Moebius 8200 9014.000 Moebius 9014 9018.000 Jismaa 124 9020.000 Moebius 9020 10/2013 M RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 15 -10s/M. .. +20s/M. 1.20 V Lower working voltage limit Setting stem in position III, 60 s measuring interval: 0.10 µA Typical consumption Maximal consumption 0.30 µA 10/2013 RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch EM 1...
- Page 16 1.68 kΩ .. 1.88 kΩ Coil resistance M3 ∞ kΩ Coil isolation M1/M2/M3 Signal generator (4.9 ms, 8 Hz): Lower working voltage limit M2/M3 1.20 V 10/2013 RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch EM 2...
- Page 17 Put the yellow jumper between the two posts on the closer side. 3622.040 Stator Mark |Z| on stator. 3622.039 Stator (counter 6h, 9h, chrono) 3622.039 Stator (counter 6h, 9h, chrono) 10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 18 3007.056.CO Minute wheel (counter 24h) 3402.008.CO Minute counting wheel (24h) 2020.149.G Counter train wheel bridge Counter train wheel bridge held by 3 screws 4000.250. 4000.250 Screw 10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 19 Electronic module cover Electronic module cover held by 3 screws 4000.250. 4000.250 Screw 3600.010.HGF Battery 395 3601.109.G Bridle + Bridle held by 1 screw 4000.250. 4000.250 Screw 10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 20 Tens jumper maintaining plate held by 2 screws 4000.306. Tensioning the spring arm. 4010.306 Screw 3301.242 Hour wheel (Aig.2) 3315.016 Friction spring 3004.224.CO Date indicator driving wheel 3500.049 Date jumper 10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 21 Date mechanism maintaining plate held by 2 screws 4000.250. 4000.250 Screw 3506.072.G Dial support 9010.000 Moebius 8200 9014.000 Moebius 9014 9018.000 Jismaa 124 9020.000 Moebius 9020 10/2013 N RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch...
- Page 22 -10s/M. .. +20s/M. 1.20 V Lower working voltage limit Setting stem in position III, 60 s measuring interval: 0.10 µA Typical consumption Maximal consumption 0.30 µA 10/2013 RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch EM 1...
- Page 23 1.68 kΩ .. 1.88 kΩ Coil resistance M3 ∞ kΩ Coil isolation M1/M2/M3 Signal generator (4.9 ms, 8 Hz): Lower working voltage limit M2/M3 1.20 V 10/2013 RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch EM 2...
