x 44
WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY
Please read these instructions carefully and ensure that your barbecue is properly installed, assembled,
maintained and serviced in accordance with these instructions.
Failure to follow these instructions may result in serious injury and/or damage to property.
Necessary
Tools
Please check the pack contents before attempting to assemble this product. A full checklist of
components is given in this leaflet. If any components are missing, please contact the retailer from
whom you bought this product.
This product takes approximately 20 MINUTES
to assemble with 2 PEOPLE. The fittings pack
contains SMALL ITEMS which should be KEPT
AWAY FROM YOUNG CHILDREN. Read this
leaflet in full before commencing assembly.

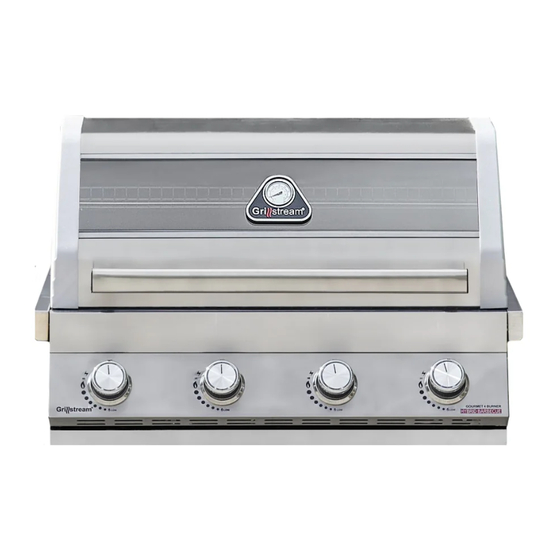

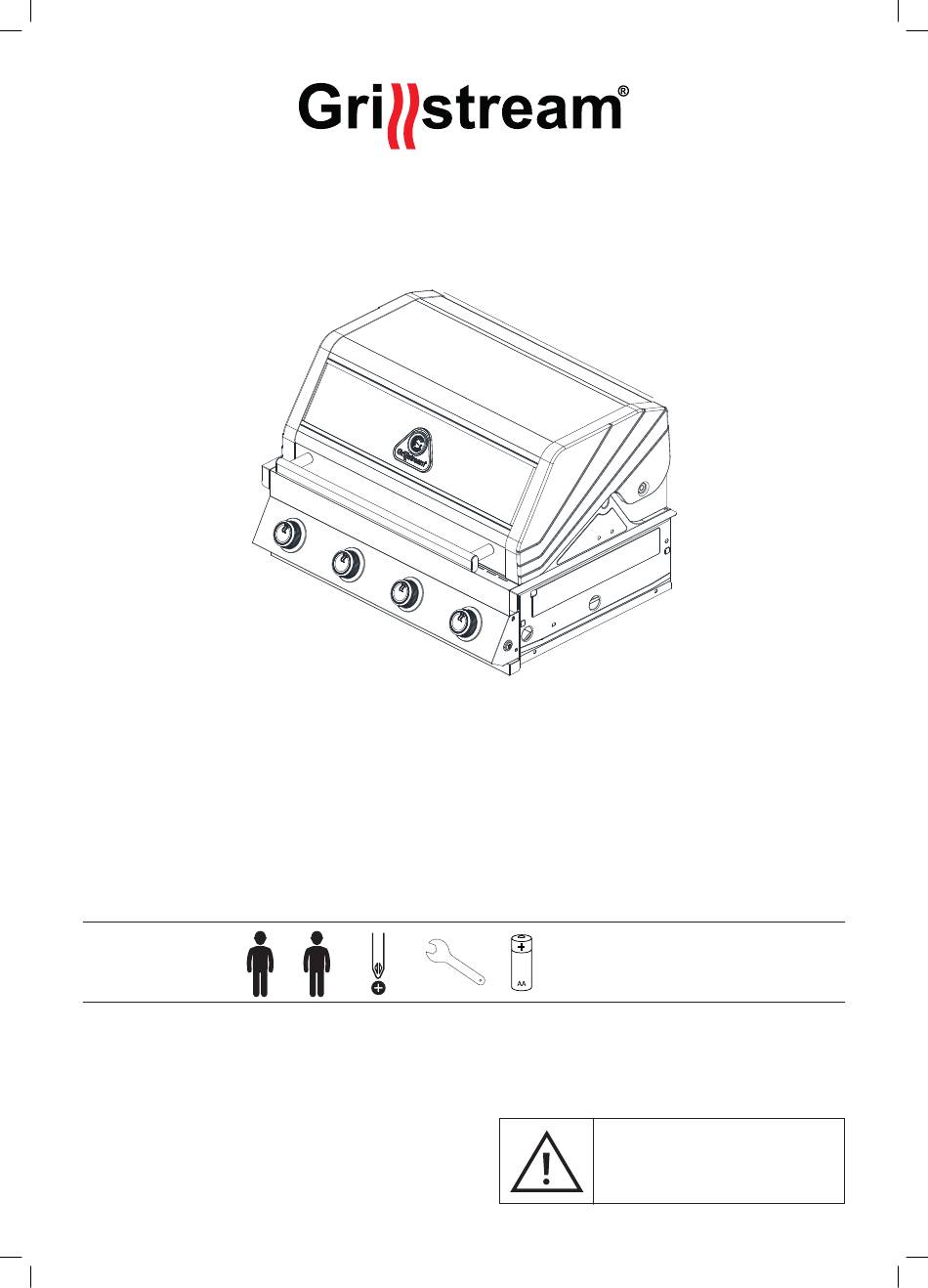

Built In 4 Burner Barbecue
GBI46SS
x 4
x 12
x 12
x 2
x 44
X4
AA Battery
(Not included)
Carbon Monoxide Hazard
Using a barbecue inside can kill you,
it gives off Carbon Monoxide, which has no odour.
Never use a barbecue in enclosed spaces such as
a tent, home/building, vehicle or garage.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grillstream GBI46SS
Summary of Contents for Grillstream GBI46SS
- Page 1 Built In 4 Burner Barbecue GBI46SS x 44 x 12 x 44 x 12 WARNING! FOR YOUR SAFETY, FOR OUTDOOR USE ONLY Please read these instructions carefully and ensure that your barbecue is properly installed, assembled, maintained and serviced in accordance with these instructions.
-
Page 2: Table Of Contents
GBI46SS Contents Warning Information Page Location of your BBQ Page Connecting to the gas cylinder Page The hose and regulator assembly Page Testing for leaks Page Gas cylinder safety Page What is Propane Page Are all gas bottle gases the same... -
Page 3: Warning Information
GBI46SS CONNECTING THE GAS CYLINDER WARNING INFORMATION There are two different types of gas that can be used on your gas BBQ - Read this Operating Manual before use. depending on where you live, that being either butane or propane gas. -
Page 4: Testing For Leaks
GBI46SS SECURING THE HOSE AND REGULATOR ASSEMBLY GAS CYLINDER SAFETY - Always change over a gas cylinder away from any possible source Quick release connection (Fig. 4) of ignition in a well ventilated area - The BBQ’s manifold connection is a quick release connector... -
Page 5: Lighting Your Bbq
• off position and wait five minutes for any accumulated gas to clear out of the BBQ before repeating procedure. LIGHTING YOUR BBQ (cont.) Grillstream Grills fit directly on top of each other - do not offset them. lo position is obtained by turning the knob fully anti-clockwise - The... -
Page 6: Hybrid System
You should now turn off the burners DIRECTIONS FOR USE - GAS: completely and close your Barbecue Hood. The beauty of the Grillstream Hybrid System is that there is no additional assembly or conversion process required, whether you want STEP 4: to use it as a Charcoal Barbecue or Gas Barbecue. -
Page 7: Maintenance Of Your Bbq
To clean the Grills effectively use the Grillstream cleaning brush which has been specially designed to quickly and effectively clean your Grillstream Grills. Rinse off with clean water and dry before returning to BBQ. -
Page 8: Troubleshooting
Ignition tube and clear out any debris inside (fig C) WARRANTY All of our Grillstream BBQs and accessories are built to last. Our materials are carefully considered with longevity and safety in mind, the technology used in our products is second to none, and all of this is backed up with our friendly customer care team who are on hand for advice and assistance. -
Page 9: Exploded Diagram
GBI46SS Page 9... -
Page 10: Parts List
GBI46SS Description Code Hood Hybrid Flametamer Thermometer 295mm Grillstream Grill Grillstream Logo Plate 395mm Grillstream Gastro Grill Cooking Frame Circular Griddle Plate Cooking Frame Support - Left Warming Rack Cooking Frame Support - Right Fat Cup Grease Tray Battery Box... -
Page 11: Fittings List
GBI46SS FITTINGS x 44 x 12 x 44 x 12 x 44 x 12 x 12 Part Part M6 Nut M6 x 20 Whilst we recommend using the LGOutdoor brand built in outdoor kitchen in conjunction with this grill, if you do use your own outdoor kitchen or structure, please ensure it meets the minimum dimensions laid out in Step 4 and that the cooking frame is securely attached to your outdoor kitchen or structure. - Page 12 GBI46SS STEP 1 Unscrew bolt located at front of control panel, as indicated. Attach Cooking Frame Support - Right (6) using 2 x Bolt (2) and 2 x Nut (1). Bolts screw from inside of cooking frame with Nuts to be located on outside. Now replace the bolt removed from control panel. Repeat for Cooking Frame Support - Left (5).
- Page 13 Unscrew and remove Wingnut and Washer from Thermometer (2). Thread Thermometer Spindle through Grillstream Logo Plate (3) and then through Glass Window of Hood (1). Replace Washer and Wingnut. Note: Do not overtighten as this could lead to damaging of the Glass Window.
- Page 14 GBI46SS STEP 3 Slide Grease Tray (7) underneath Cooking Frame ensuring it is level and on top of runners. The Gas Hose will be attached behind the Control Panel via cable tie, please cut the cable tie carefully to avoid damaging the components behind the Control Panel. Attach hose as instructed in the SECURING THE HOSE AND REGULATOR ASSEMBLY section and ensure you perform a gas leak before use.
- Page 15 Install the Built-In Cooking Frame (4) and Side Burner (16) into your Outdoor Kitchen setup ensuring there is access to the Grillstream Fat Cup (14) for easy removal and replacement. Now connect Side Burner hose to Cooking Frame as instructed in the SECURING THE HOSE AND REGULATOR ASSEMBLY section and ensure you perform a gas leak before use.
- Page 16 Cooking Frame. Leg tabs from bottom Grillstream Grills and Grillstream Gastro Grills should rest on lip at back of Cooking Frame with the logo tab at the front. Top Grillstream Grills should sit directly on top of the bottom Grills.
- Page 17 GBI46SS STEP 6 Insert back legs of Warming Rack (13) into channel on Warming Rack Clips. Angle Warming Rack forwards and insert front legs into holes located on Cooking Frame (4). To operate, lift front legs out of holes in Cooking Frame and tilt Warming Rack upwards.
- Page 18 GBI46SS STEP 7 Insert 4 x AA Batteries (not supplied) into Battery Pack (15). Connect Battery Pack to LED Light Wire. Peel off plastic backing from sticky pad on the rear of the Battery Pack and affix to inside of Outdoor Kitchen away from sources of heat.
-
Page 19: Leak Test
GBI46SS TESTING YOUR BBQ TESTING FOR LEAKS - DO THIS BEFORE USING YOUR BBQ. Note - Do not test for gas leaks with an open flame. If you smell gas, turn off at the source. Before first use, at the beginning of each new season, or whenever a gas cylinder is changed, you must check for gas leaks. - Page 20 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Grillstream Barbecues Part of the LeisureGrow Group Dewmead Farm, New Inn Road, Hinxworth, Hertfordshire SG7 5HG, United Kingdom. Tel: +44 (0)1462 744500 E-mail:consumer@leisuregrow.com...
