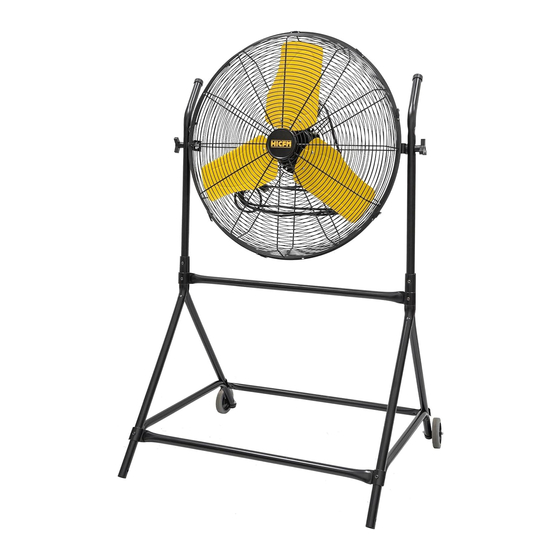

- Page 1 OWNER’S MANUAL 24" ROLL-ABOUT TILT STAND FAN ITEM NO.: FAN-R24T 120V / 60Hz, 2.7A READ & SAVE THESE INSTRUCTIONS Questions, problems, missing parts? Before returning the product, please e-mail our customer service by hicfm@outlook.com...
- Page 2 SAFETY INFORMATION WARNING 1. Read and save these instructions. Do not operate fan unless you have read these instructions. 2. Unplug the fan before moving it or performing maintenance. Do not touch the fan when your hands are wet. 3. Those who are not qualified electricians should not disassemble, repair or rebuild the fan.
- Page 3 ASSEMBLY INSTRUCTION 1. Remove the parts from the box. 2. Place the fan head (motor and guard assembly) on a flat level surface with motor on the top side. 3. Assemble two angled legs to one upright handle with bolt, flat washer, spring washer and nut through lower hole as shown in Figure 1.
- Page 4 Cross-member Handle toward this way Cross-member Spring Washer Flat Washer Bolt Figure 2 Cross-member Cross-pole Bolt Cross-pole Cross-member Flat Washer Spring Washer Nut toward inside Figure 3...
- Page 5 Handle toward fan head’s Rubber Flange Tilting Knob Figure 4 Wheel assembly Flat Washer Bolt Shaft Wheel Figure 5...
- Page 6 OPERATION INSTRUCTION 1. Place the fan on a safe,,flat surface where it can not fall or be pulled by the cord. 2. Plug unit into electrical outlet. 3. Adjust the desired speed by rotating the switch knob at the back of fan. 0 Stop 1 Low 2 Medium...
- Page 7 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. REPLACEMENT PARTS LIST PART DESCRIPTION PART # Blade FAN-R24T-01...
