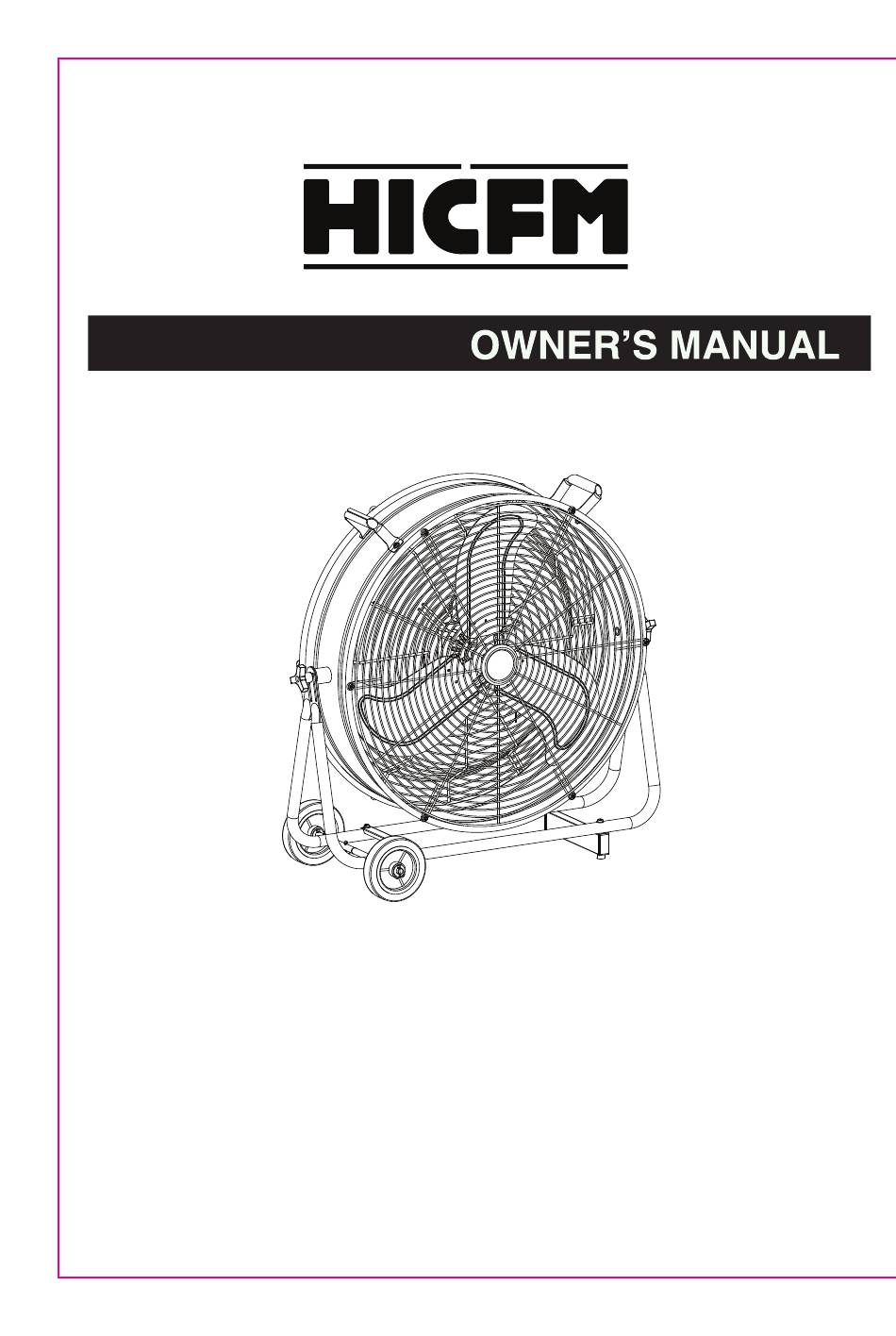

- Page 1 24 " HIIGH-VELOCITY DRUM FAN ITEM NO : FAN-D24 120V / 60Hz, 2.5A READ & SAVE THESE INSTRUCTIONS Questions, problems, missing parts? Before returning the product, please e-mail our customer service by hicfm@outlook.com...
- Page 2 1. Read and save these instructions. Do not operate fan unless you have read these instructions. 2. Unplug the fan before moving it or performing maintenance. Do not touch the fan when your hands are wet. 3. Those who are not qualified electricians should not disassemble, repair or rebuild the fan.
- Page 3 1. Connect the Fixing Plate with Base Bracket by 2 screws ST5*16. Screw ST5*16 Fixing Plate Base Bracket 2. Install the Square Tube with Base Bracket by 2 screws ST5*35. Screw ST5*35 Square Tube...
- Page 4 3. Assembly the Wheels by inserting the Wheel Shafts into the Base Bracket. Wheel Shaft 4. Take the Split Pin through the hole of Wheel Shafts, and open it for secure the wheels location. Split Pin Split Pin...
- Page 5 5. Assembly the Base Bracket with two side of Drum body by fastening the Locking Knobs, Flat Washers, Serrated Washers and Rubber Pads. Rubber Pad Flat Washer Serrated Washer Locking Knob 6. Adjust the Locking Knobs to secure the drum in desired position, and tight it by turning the Locking Knobs clockwise.
- Page 6 0 Stop 1 Low Medium 3 High...
- Page 7 Some states do not allow the exclusion or limitation of the incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Blades FAN-D24...
