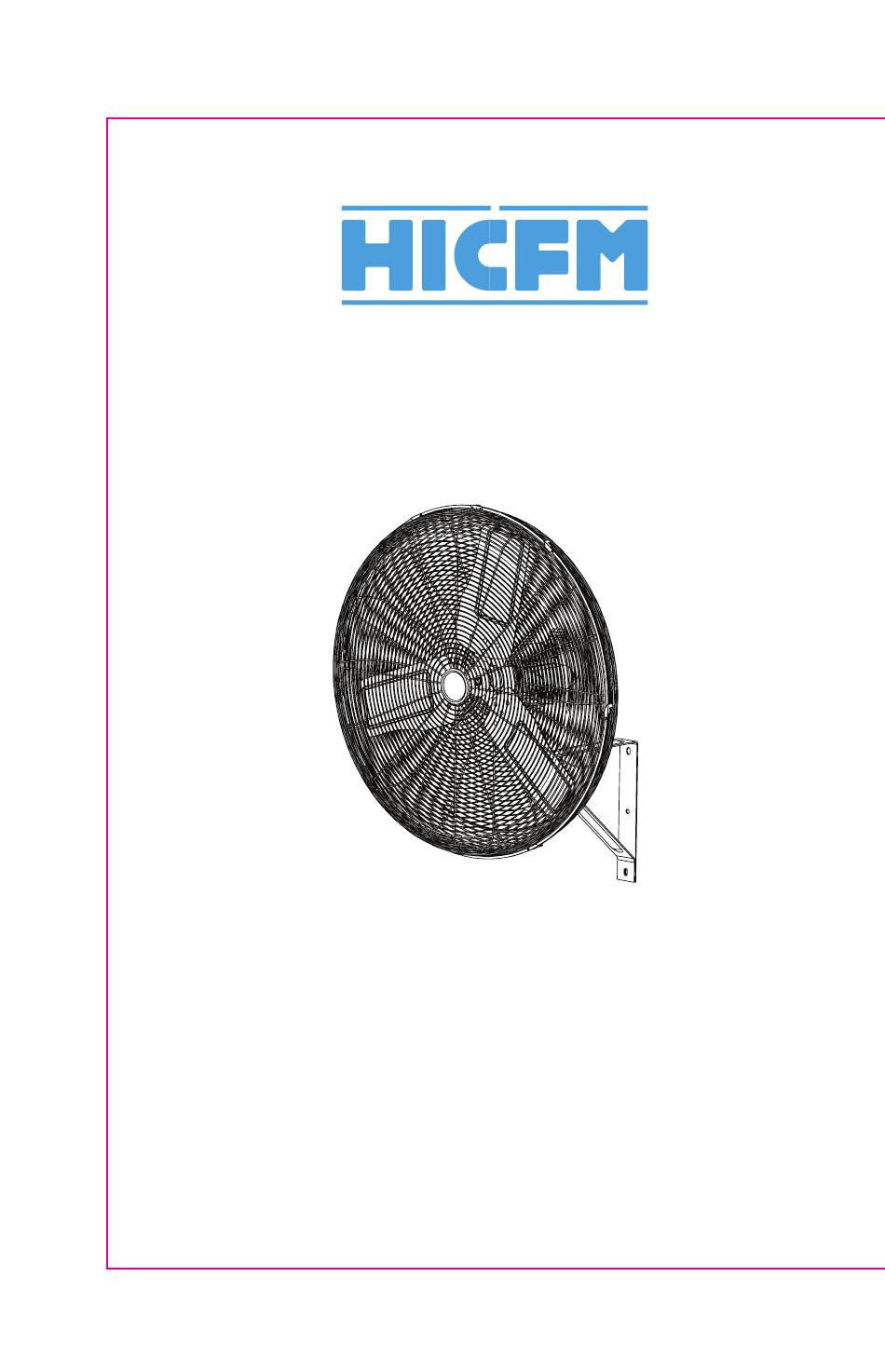

- Page 1 24 " OSCILLATING HIGH VELOCITY WALL FAN INDOOR / OUTDOOR USE ITEM NO : FAN-OW24S READ & SAVE THESE INSTRUCTIONS Questions, problems, missing parts? Before returning the product, please e-mail our customer service by hicfm@outlook.com...
-
Page 2: Technical Specifications
Supervise children to ensure they do not play with the fan. TECHNICAL SPECIFICATIONS ITEM NO. MODEL NO. SIZE VOLTE/Hz CURRENT(A) FAN-OW24S SFWE-750/60YWA 120V/60Hz 1100 8900... - Page 3 1. Test GFCI(Ground Fault Circuit Interrupter) plug BEFORE EACH USE. Plug GFCI into power outlet. Press RESET button(b). Indicator(a) should turn red. Press TEST button(c). Indicator (a) should turn off. GFCI plug is tripped. DO NOT USE FAN IF ABOVE TEST FAILS. Call customer service for aaaistance.
- Page 4 1. Mark the mounting hole locations by using the holes in the bracket as a guide, then drill the holes. For concrete wall installation, after drilling, you would insert the wall anchors and tap them flush with the wall, position the bracket and then screw the two bolts into the anchors, securely attaching the bracket to the wall.
- Page 5 3. Remove four sets of hexagonal nuts, spring washers, and flat washers from the motor, save them for step 4. 4. Set the rear guard in the proper position and affix it to the motor using the hexagonal nuts, spring washers, and flat washers.
- Page 6 5. Assemble the fan blade onto the motor shaft by tightening the two screws. Make sure the crews are tightly secured. 6. Attach t he front guard to the rear guard and secure them together by using the clips on the front guard.
-
Page 7: Swivel Bracket
7. Secure the assembly on the front guard and rear guard by tightening the screw, washer and nut at the bottom of the fan guards. 8. Insert the swivel bracket into motor Z brackets and fasten it with bolt (a), flat washer (b), spring washer (C) and nut (d). - Page 8 9. Assemble the swivel bracket with wall bracket and fasten with hexagon screw, flat washer, spring washer and nut. 10. Loosen the knob (g) and adjust until the fan head is at the desired angle. Tighten the knob (g) back.
-
Page 9: Care And Maintenance
CARE AND MAINTENANCE Unplug the appliance before cleaning. Don’t use any water for cleaning metal surfaces. Slightly moisten a cloth and then wipe off the surfaces of the fan. In order to remove dust from the grill, use a vacuum cleaner or remove the front grill by removing the securing screws on the edge of the grill. - Page 10 Installation -- Secondary Safety Support Cable Warning: Use of secondary safety support cable does not Secondary guarantee protection against injury of persons. Mounting Support of both the circulator and cable could fail if subject Cable to abuse, neglect or if improperly installed. To avoid personal injury, circulators must be supported anytime angle is adjusted.
