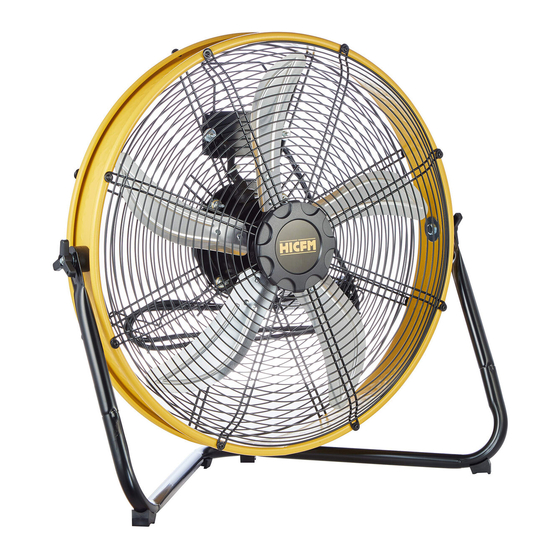

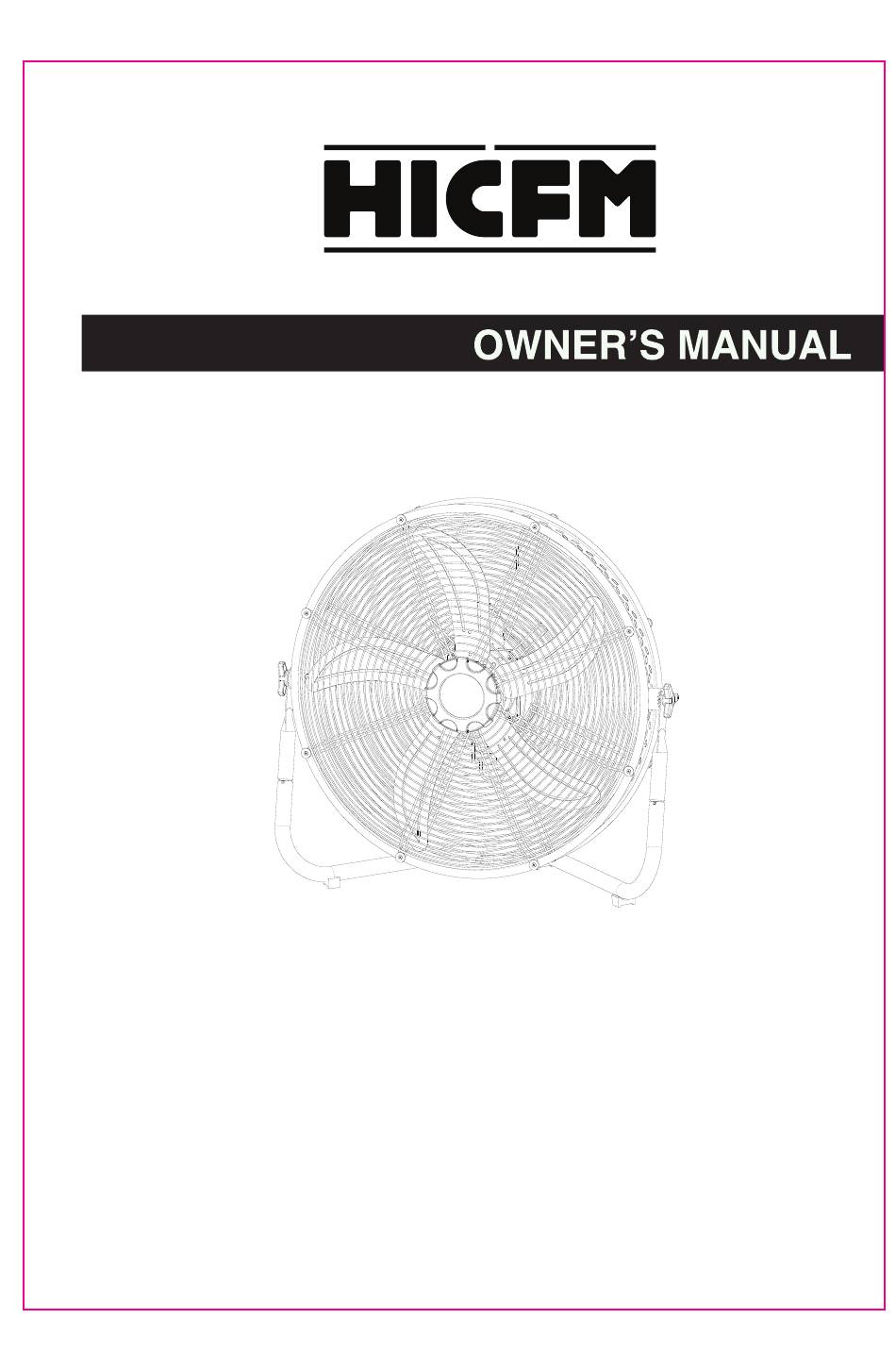

- Page 1 20" HIGH-VELOCITY DRUM FAN ITEM NO.: FAN-D20 120V / 60Hz, 1.6A READ & SAVE THESE INSTRUCTIONS Questions, problems, missing parts? Before returning the product, please e-mail our customer service by hicfm@outlook.com...
- Page 2 1. Read and save these instructions. Do not operate fan unless you have read these instructions. 2. Unplug the fan before moving it or performing maintenance. Do not touch the fan when your hands are wet. 3. Those who are not qualified electricians should not disassemble, repair or rebuild the fan.
- Page 3 USER SERVICES INSTRUCTIONS 1. Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord. 2. Open fuse cover. (See Fig.2) 3. Remove fuse carefully. (See Fig.3) 4. Risk of fire. Replace fuse only with 5Amp, 125Volt fuse. (See Fig.4) 5.
- Page 4 ASSEMBLY INSTRUCTIONS 2. Insert the fan into the base until the button pop-up from the hole. Wall-Mount Instruction 1. Drill a hole on the wall with desired height, insert the wall anchor and tap it flush with thewall, position the mounting bracket and then screw the bolt into the anchor, securely attach to the wall.
- Page 5 OPERATION INSTRUCTIONS 1. Place the fan on a safe, flat surface where it can not fall or be pulled by the cord. 2. Select desired direction of air flow by tilting the fan grill upward or downward. Tighten the plastic nut tightener on both tilt nuts to secure fan head. 3.
- Page 6 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. PART DESCRIPTION PART # Blade FAN-D20...
