USER MANUAL AND OPERATING INSTRUCTIONS
120V / 60Hz, 1.2 A
ITEM NO.: FAN-D20TDC
MODEL NO.: SFD-500B-DC
If you have any questions or comments
about this or any product,
please e-mail our customer service by
EMAIL
inquiry@hicfm.com
READ & SAVE THESE INSTRUCTIONS

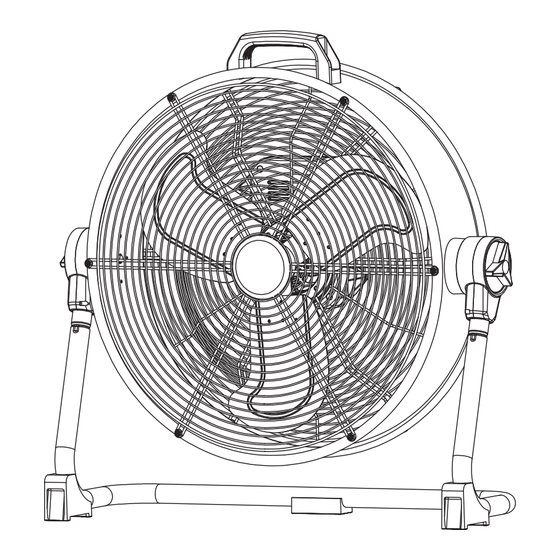

20" BLDC PORTABLE DRUM FAN
www.hicfm.com
Advertisement
Related Manuals for HICFM SFD-500B-DC
Summary of Contents for HICFM SFD-500B-DC
- Page 1 READ & SAVE THESE INSTRUCTIONS 20" BLDC PORTABLE DRUM FAN 120V / 60Hz, 1.2 A ITEM NO.: FAN-D20TDC MODEL NO.: SFD-500B-DC If you have any questions or comments about this or any product, please e-mail our customer service by EMAIL inquiry@hicfm.com...
- Page 3 SAFETY INFORMATION WARNING 1. Read and save these instructions. Do not operate fan unless you have read these instructions. 2. Unplug the fan before moving it or performing maintenance. Do not touch the fan when your hands are wet. 3. Those who are not qualified electricians should not disassemble, repair or rebuild the fan.
- Page 4 OPERATION INSTRUCTION 1. Tilt the fan head front or back to your desired angle. Loosen the adjustment knobs on each side of the fan slightly before adjusting if the air flow angle is firmly locked. Do not move or adjust fan while in operation. WARNING: Fan head Adjustment Knob...
- Page 5 OPERATION INSTRUCTION(CONTINUED) 1. Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord. 2. Open fuse cover. (See Fig.1). 3. Remove fuse carefully. (See Fig.2) . 4. Risk of fire. Replace fuse only with 5Amp, 125Volt fuse. (See Fig.3) . 5.
- Page 6 REPLACMENT PARTS LIST Part # Part Description Blade FAN-D20TDC-1...
