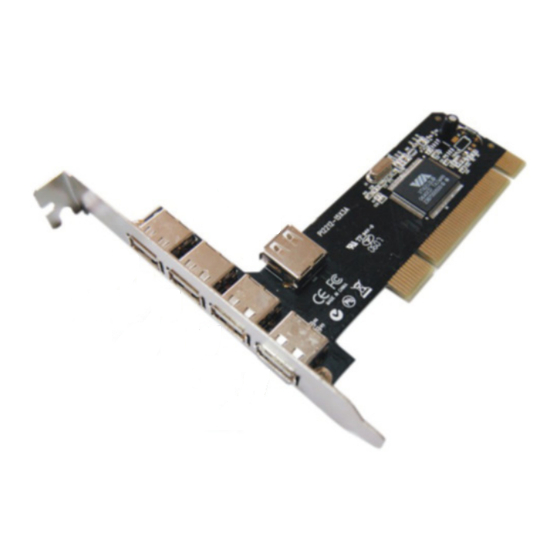

- Page 1 USB 2.0, 4+1 Port PCI Add-On card User Manual DS-33221 All brand names and trademarks are properties of their respective owners.
- Page 2 Features and Benefits Compliant with USB specification revision 2.0 Backward compatible with USB 1.1 Specification Hot-swapping feature allows you to connect/disconnect devices without first turning system off Supports high-speed (480Mbps), full-speed (12Mbps), and low-speed (1.5Mbps) data transfer modes for simultaneous operation of multiple USB 2.0/1.1 devices ...

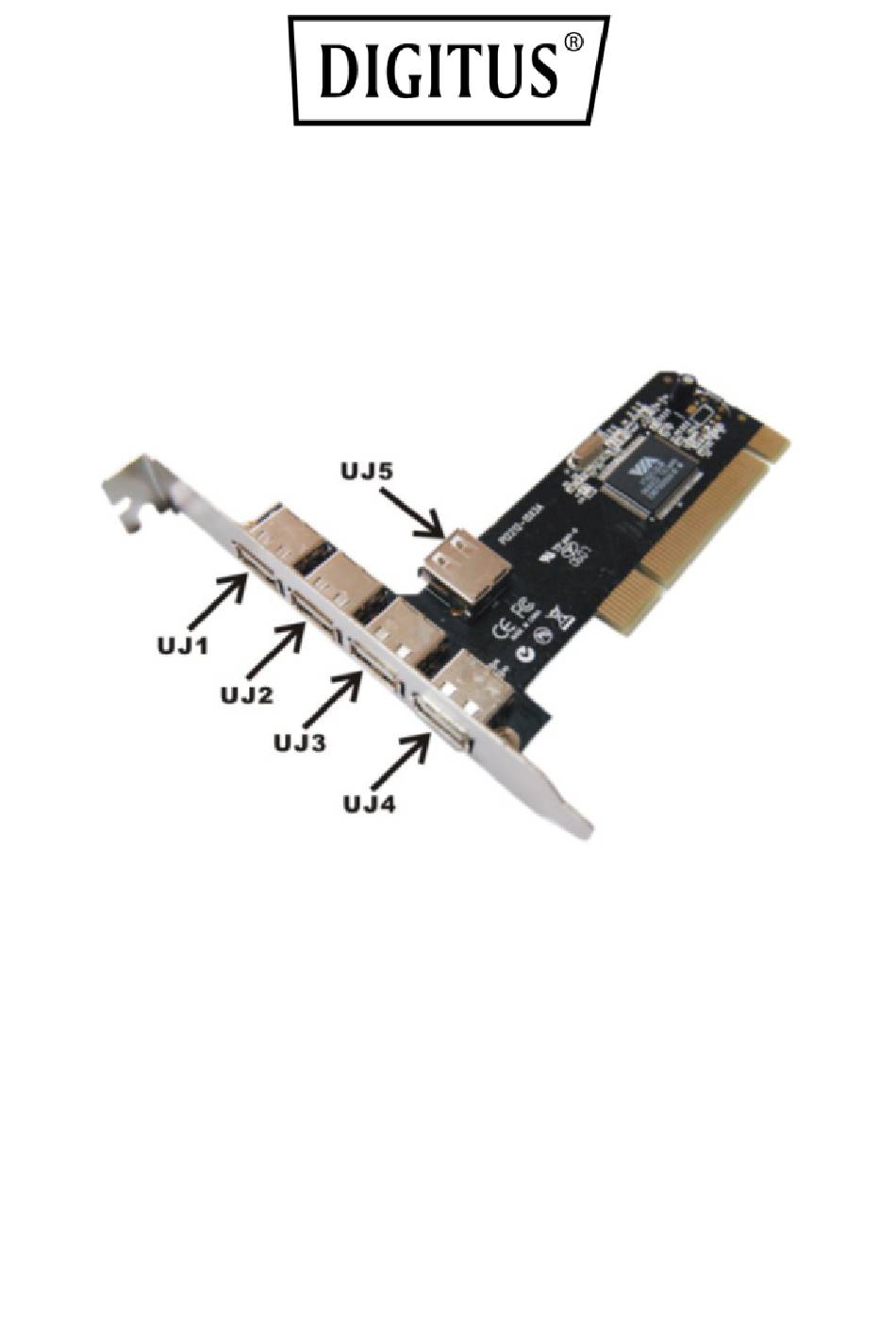

- Page 3 Hardware Description Before installing the PCI VIA USB 2.0 Card, please see the photo below highlighting the available USB ports of the card. Note: The Internal Port (UJ5) shares with first External Port (UJ1). Hardware Installation Turn Off the power to your computer. Unplug the power cord and remove your computer’s cover.
- Page 4 Driver Installation For Windows® XP/2000 Windows® XP/2000 will automatically detect and install the correct driver for the PCI VIA USB 2.0 Card. However, please ensure you have the latest Service Pack Installed. For Windows® XP Windows® XP Service Pack 1 or later For Windows®...
- Page 5 To Verify Driver Installation 1. Right click My Computer, and then click Manage. Click Device Manager. 2. Double click Universal Serial Bus controllers option. - USB Root Hub (USB 2.0 Root Hub in Windows® 2000) - USB Root Hub - USB Root Hub - VIA Rev 5 or later USB Universal Host Controller (VIA USB Universal Host Controller in Windows®...
- Page 6 Herby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. Par la présente, Assmann Electronic GmbH certifie que le produit contient la déclaration de conformité.
