Key features
1. Connects mSATA Mini PCI-E motherboard to NGFF B Key SSD
2. Compliant with PCI Express M.2 specification 1.0.
3. Compliant with SATA III specification.
4. Supports data transfer up to 6.0Gb/s.
5. Supports SATA-based NGFF SSD.
6. Supports 2230, 2242, 2260 & 2280 size NGFF SSD.
7. One NGFF M.2 B Key socket and one mSATA Mini PCI-E male connector available.
8. 4 screw holes 2230/2242/2260/2280 available to fix NGFF SSD card.
9. 4 screw holes available to fix PCB board.
10. Easy installation & no driver required.
11. Support boot function.
12. Supports any OS, like Windows, WinCE & Linux etc.
*
Please note that it supports SATA-based B Key SSD only. It does NOT support PCI-E based B key & any
M key SSD*

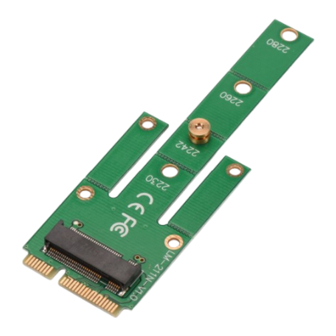

MSATA to NGFF (M.2) PCIe Card
Manual DS-33152
Advertisement
Related Manuals for Digitus DS-33152
Summary of Contents for Digitus DS-33152
- Page 1 MSATA to NGFF (M.2) PCIe Card Manual DS-33152 Key features 1. Connects mSATA Mini PCI-E motherboard to NGFF B Key SSD 2. Compliant with PCI Express M.2 specification 1.0. 3. Compliant with SATA III specification. 4. Supports data transfer up to 6.0Gb/s.
- Page 2 Quick Install Guide Step 1: insert DS-33152 to MSATA slot on Motherboard Sept 2: insert device which have NGFF (M.2) port with DS-33152 Sept 3: screw DS-33152 on Motherboard Package Content 1 X mSATA to NGFF (M.2) SSD Key-B converter card ...
