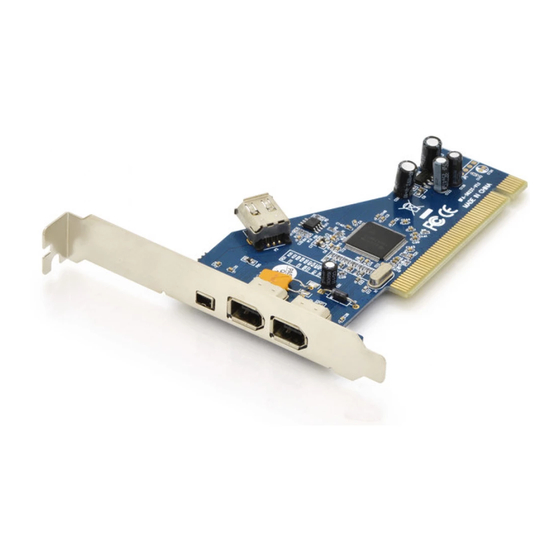

Digitus DS-33203-2 User Manual

Firewire a add-on pci card
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
Firewire A Add-on PCI Card
User Manual
DS-33203-2

Advertisement

loading

Related Manuals for Digitus DS-33203-2

Summary of Contents for Digitus DS-33203-2

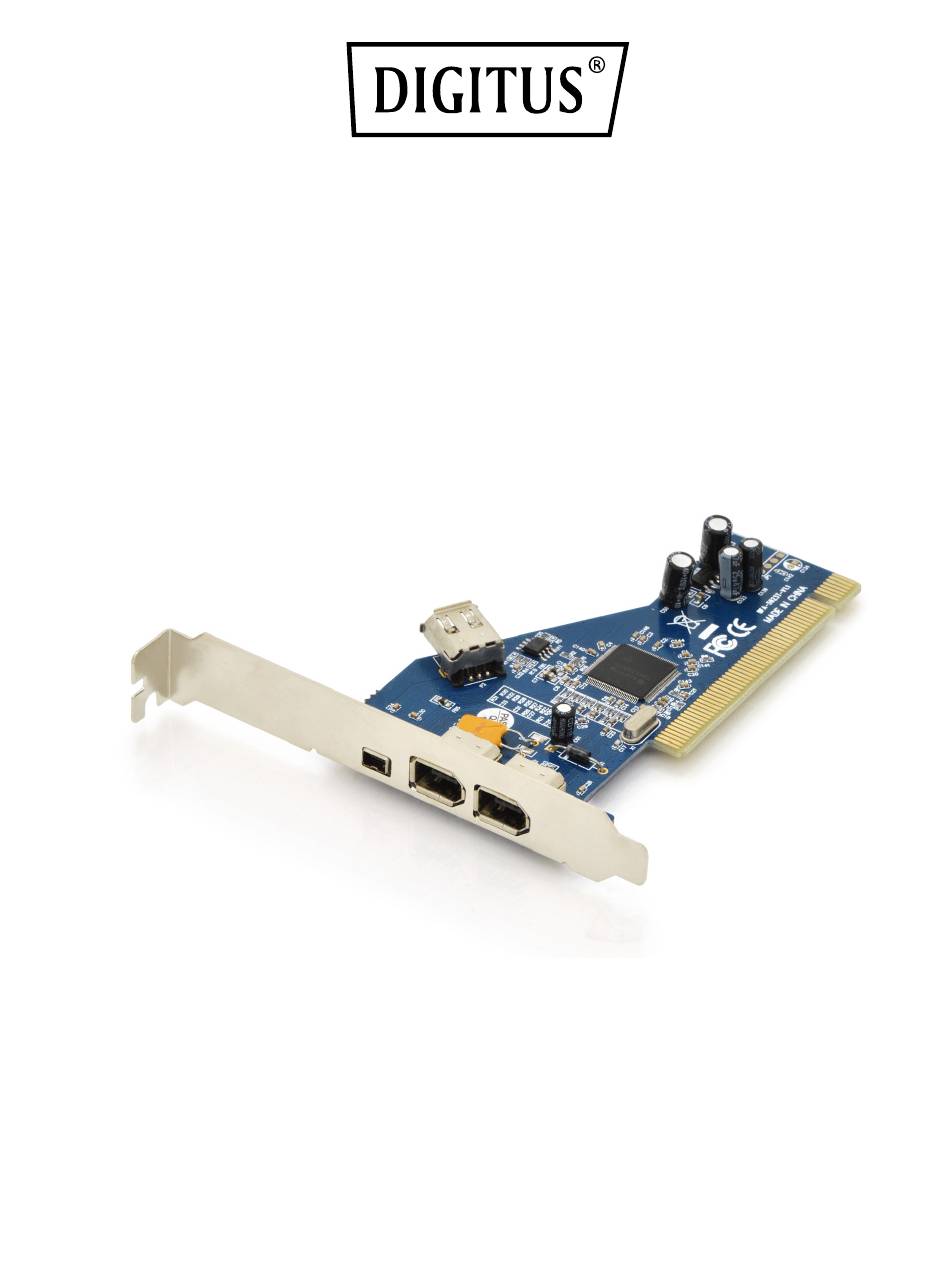

  • Page 1 Firewire A Add-on PCI Card User Manual DS-33203-2...
  • Page 2 Features and Benefits  Chipset: TI TSB43AB23  PCI 32-bit 33MHz Interface  Compliant IEEE 1394-1995, 1394a (rev. 1.1) and OHCI Interface Specification 1.0  Supports data transfer rates of 100, 200 and 400 Mbps  Hot-swapping features allows you to connect/disconnect devices without powering down your system ...
  • Page 3 System Requirements ® ® ®  Windows or MAC , or Linux  Available PCI slot Package Contents  Firewire A Add-on PCI Card  Low profile bracket  Manual Hardware Description P2: Firewire 400 (4pin) P1, P3, P4: Firewire 400 (6pin)
  • Page 4 Hardware Installation 1. Turn Off the power to your computer. 2. Unplug the power cord and remove your computer’s cover. 3. Remove the slot bracket from an available PCI slot. 4. To install the card, carefully align the card’s bus connector with the selected PCI slot on the motherboard.
