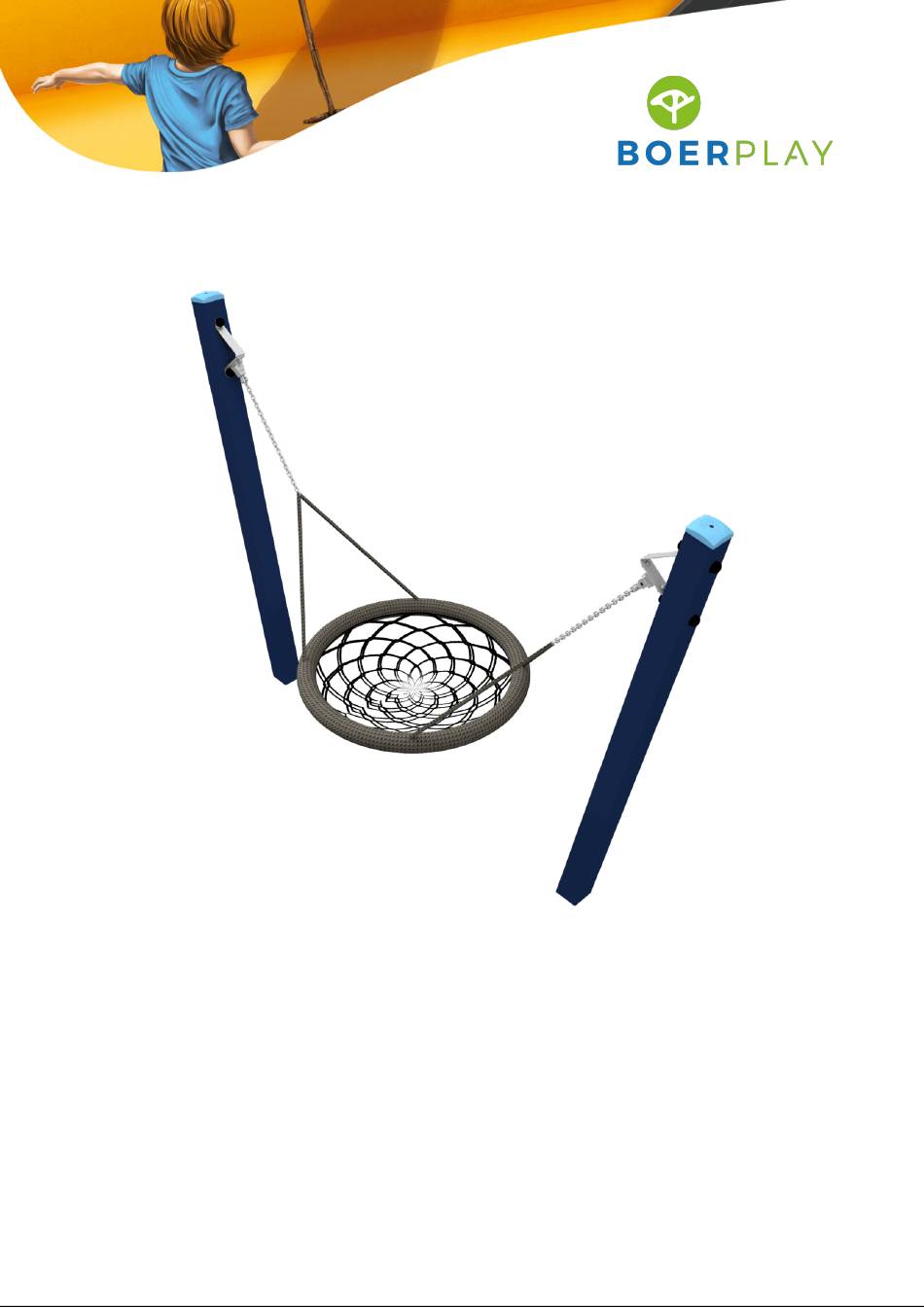

- Page 1 Bird's nest swing H1.68 BBPE038.3A...
-
Page 2: Main Dimensions
Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 1,89 m 1,68 m 0,00 m > 0,40 m BBP 038 3A © Copyright BOERplay 26-5-2020 Revision:... - Page 3 Zona libre de obstáculos Zone libre d’obstacles 2,25 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles BBP 038 3A © Copyright BOERplay 26-5-2020 Revision:...
- Page 4 Bodemplan 0,27 m 1,70 m 0,27 m Bodenplan Plan de superficie Plan de surface Grondmarkering Ground level marker BBP 038 3A © Copyright BOERplay 26-5-2020 Revision:...
-
Page 5: Order Of Assembly
3 - check the dimensions of the safety area compared to the play equipment Typeplaatje Identification plate Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Staander H = 1900 Beton voor staander 192 Liter cement Vogelnest peuter Vogelnest 1m BBP 038 3A © Copyright BOERplay 26-5-2020 Revision:... - Page 6 LOGBOOK Type indication Article number BBPE038.3A Product Name Bird's nest swing H1.68 Construction year 2024 Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64 Installer name _______________________________________________________...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
