Summary of Contents for BOERPLAY Detached Slide with handles H1.5

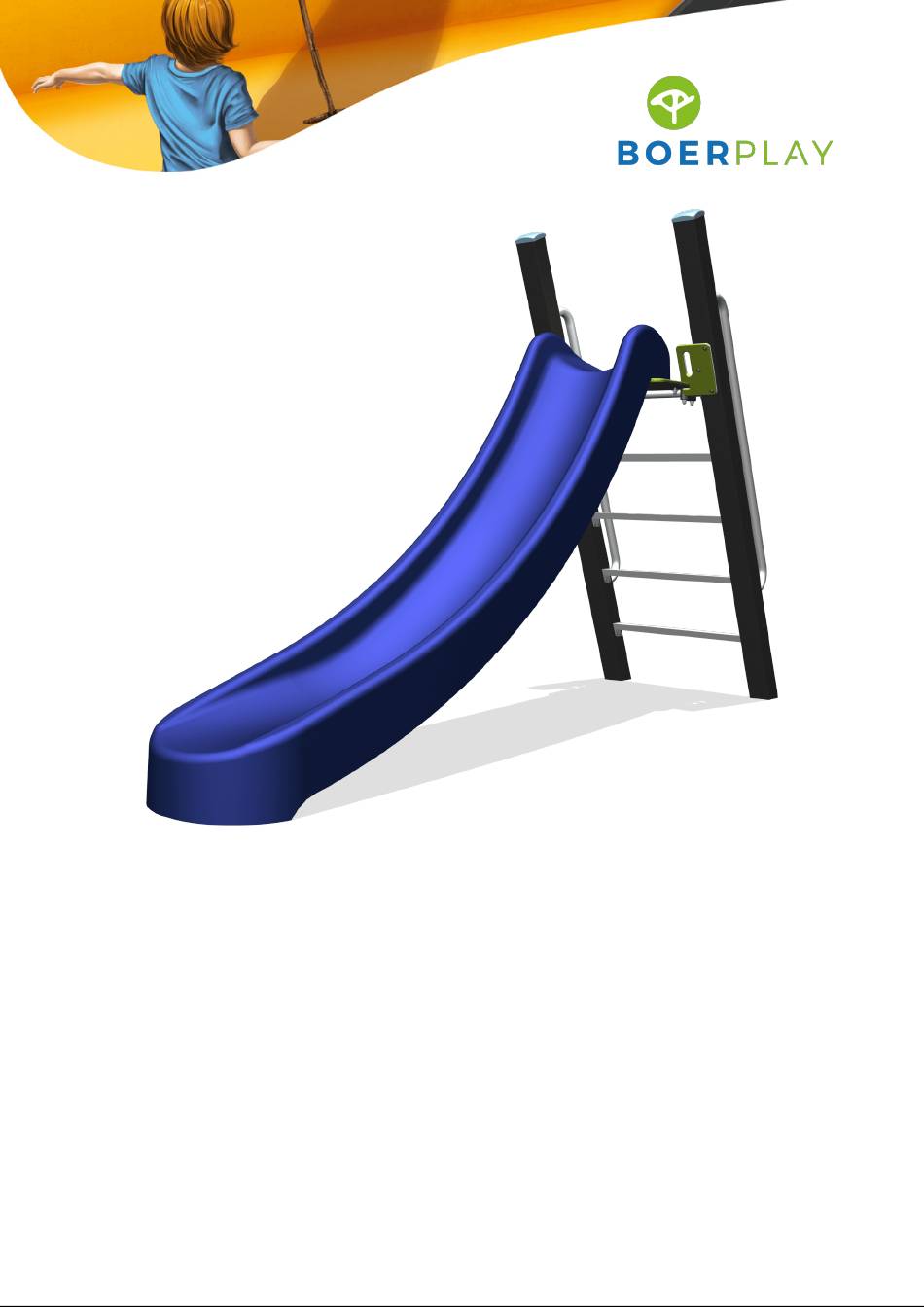

- Page 1 Detached Slide with handles H1.5 BBPE020.3KP...
- Page 2 0,90 m 0,85 m 0,05 m 0,00 m 2,16 m 1,45 m 0,00 m Benaming TOE BBP 020 3KP A Vrijstaande glijbaan 1,45 m Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 25-10-2016 Date SPEELTOESTELLEN...
- Page 3 3,89 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE BBP 020 3KP A Vrijstaande glijbaan 1,45 m Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 25-10-2016 Date SPEELTOESTELLEN...
- Page 4 4,72 m 1,60 m 3,27 m 0,27 m 0,29 m Grondmarkering Ground level marker 0,50 m 0,48 m Benaming TOE BBP 020 3KP A Vrijstaande glijbaan 1,45 m Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Bodemplan Groundplan 25-10-2016 Date SPEELTOESTELLEN...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 2,16 m 1,46 m 1,15 m 0,87 m 0,59 m 0,30 m 0,00 m 2,16 m 1,84 m 0,54 m 0,00 m 3,27 m Benaming TOE BBP 020 3KP A Vrijstaande glijbaan 1,45 m Title Tekening Opmerking Boer Basic play Drawing Comment BOER...
- Page 7 LOGBOOK Type indication Basic Play Article number BBPE020.3KP Product Name Detached Slide with handles H1.5 Maximum fall height 1,5 m Construction year 2023 Certificate 137792 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 Type Progr. Bew. Rev. Benaming Volgnr Opmerking SCHROEF 5 x 50 Let op: toestel bij voorkeur niet met DOPMOER BORG RVS M10 de glijbaan op het zuiden plaatsen. Bolkopbout ISO 7380 M10 x 50 - RVS A2-70 SLUITRING Attention: it is advisable not to oriënt Carrosserie ring M10 - RVS A2-70 playground equipment with the slide...
- Page 13 2817 2800 2075 1753 1449 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Schroef Assy 5 x 50 - RVS A2-70 1145 Borgdopmoer M10 - VZ 8.8 Slotbout M10x80 SLUITRING M10 VZ ZWART ROZETRING M5 Paalkap 100x100 Aluminium Voetplaat 100 x 100 Startplatform glijbaan Basic Play Handgreep glijbaan...
