BOERPLAY Detached Slide with handles H1.5 Manual

Hide thumbs Also See for Detached Slide with handles H1.5:

Advertisement

Quick Links

Download this manual
Detached Slide with handles H1.5
BBPE020.3AP

Advertisement

loading
Need help?

Need help?

Do you have a question about the Detached Slide with handles H1.5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY Detached Slide with handles H1.5

Summary of Contents for BOERPLAY Detached Slide with handles H1.5

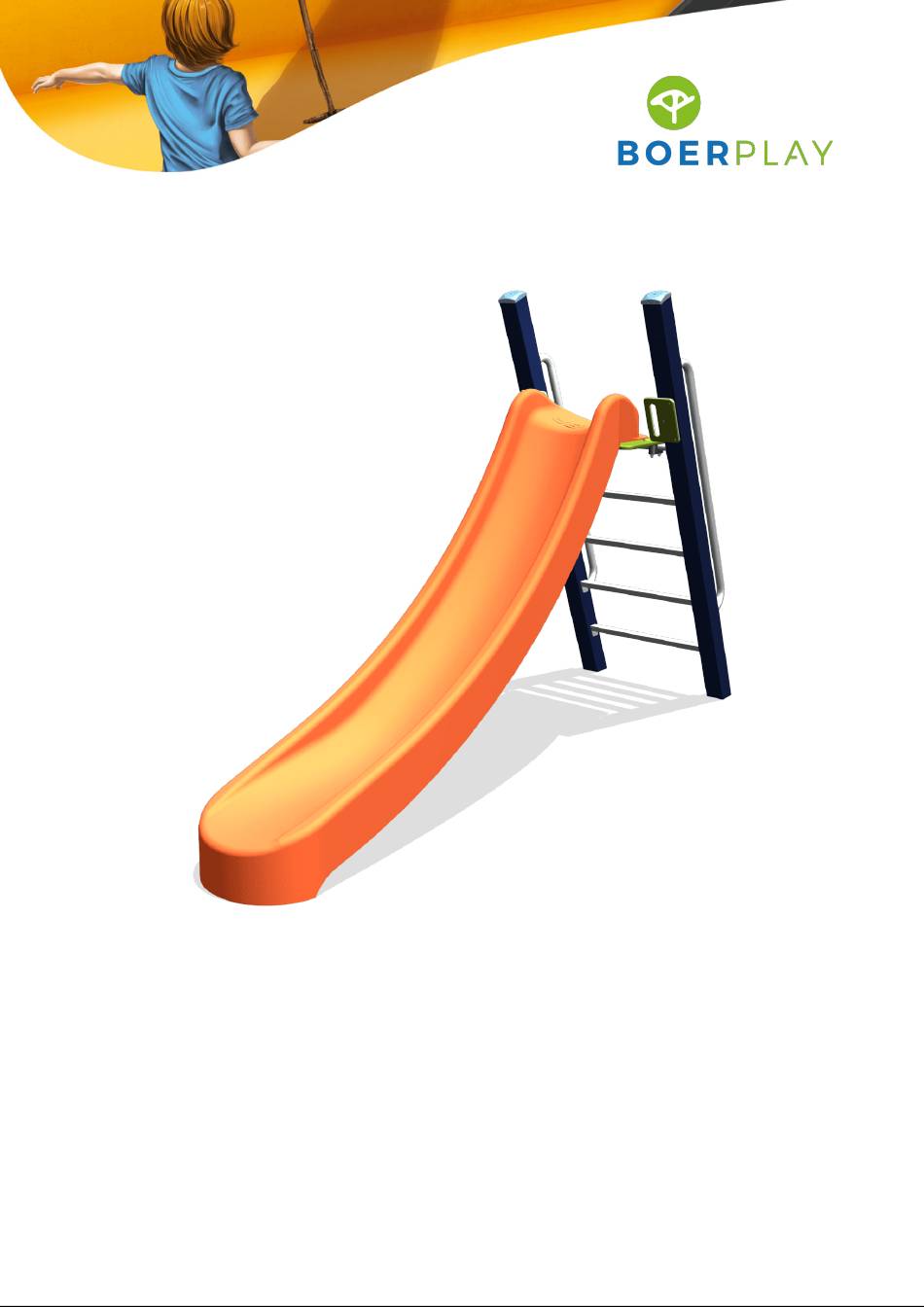

  • Page 1 Detached Slide with handles H1.5 BBPE020.3AP...
  • Page 2 0,45 m 0,40 m 0,00 m 0,40 m 0,45 m 2,16 m 1,45 m 0,00 m Benaming TOE BBP 020 3AP A Vrijstaande glijbaan 1,45 m Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 12-8-2014 Date SPEELTOESTELLEN...
  • Page 3 3,89 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE BBP 020 3AP A Vrijstaande glijbaan 1,45 m Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 12-8-2014 Date SPEELTOESTELLEN...
  • Page 4 1,61 m 3,31 m 1,40 m 0,26 m 0,38 m Grondmarkering Ground level marker 0,48 m 0,52 m Benaming TOE BBP 020 3AP A Vrijstaande glijbaan 1,45 m Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Bodemplan Groundplan 12-8-2014 Date SPEELTOESTELLEN...
  • Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
  • Page 6 2,16 m 1,46 m 1,15 m 0,87 m 0,59 m 0,30 m 0,00 m 2,16 m 1,84 m 0,54 m 0,00 m 3,28 m Benaming TOE BBP 020 3AP A Vrijstaande glijbaan 1,45 m Title Tekening Opmerking Boer Basic play Drawing Comment BOER...
  • Page 7 LOGBOOK Type indication Basic Play Article number BBPE020.3AP Product Name Detached Slide with handles H1.5 Maximum fall height 1,5 m Construction year 2023 Certificate 137792 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 9: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 12 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module © Copyright BOERplay 31-8-2022 Revision: MOD BBP 007 x...
  • Page 13 20 mm KST.BBP.003.xxx xxx: 203 Orange Oranje / Orange / Naranja / Orange xxx: 502 Blue Blauw / Blau / Azul / Bleu A = A A mm A mm 0 mm © Copyright BOERplay 31-8-2022 Revision: MOD BBP 007 x...
  • Page 14 Ø11 mm (2x) Ø3 x 40mm A (2x) Detail A (2x) BSR.023.010.050 Detail B (1x) BSR.030.010.002 BSR.002.005.050 BSR.035.010.030 BSR.002.005.050 BSR.011.010.020 KST.ROR.006.000 BSR.023.010.050 BSR.011.010.020 BSR.030.010.002 BSR.035.010.030 KST.ROR.006.000 © Copyright BOERplay 31-8-2022 Revision: MOD BBP 007 x...
  • Page 15 2817 2800 2076 A ( 1 : 10 ) 1690 1386 1082 Type Progr. Bew. Rev. Benaming Volgnr Opmerking Klinknagel bolkop 4,8 x 30 - RVS A2-70 Klinknagel bolkop 4,8 x 18 - RVS A2-70 Borgdopmoer M10 - VZ 8.8 Slotbout M10x80 SLUITRING...

This manual is also suitable for:

Bbpe020.3ap
