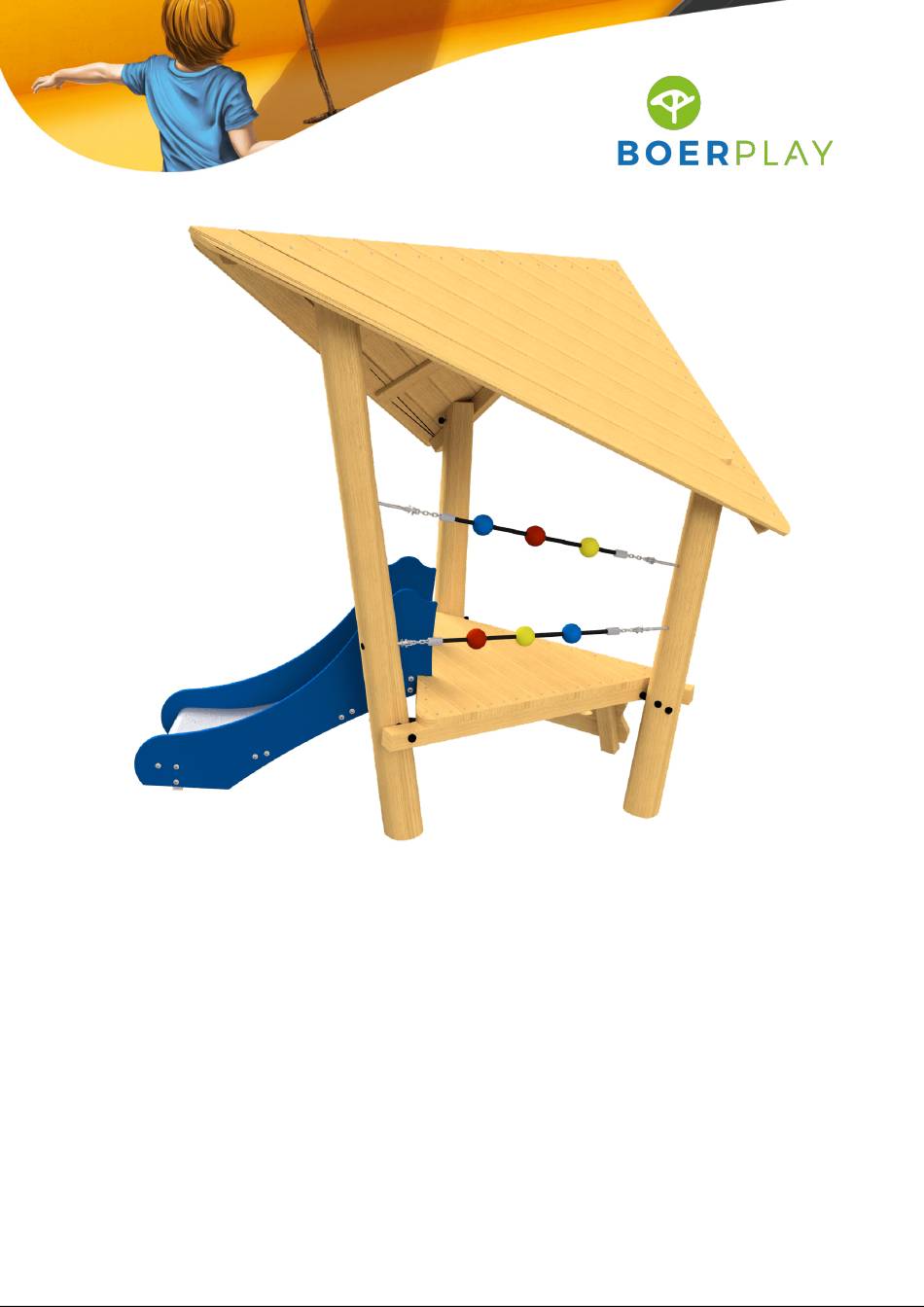

  • Page 1 Playhouse Sierra PSTE110.072...

  • Page 2: Main Dimensions

    Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,00 m 0,27 m 0,66 m 1,89 m 2,20 m 2,29 m 1,60 m 0,59 m 0,00 m < 0,20 m PST 110 072 © Copyright BOERplay 24-1-2023 Revision: A...
  • Page 3 Zona libre de obstáculos Zone libre d’obstacles 4,68 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles PST 110 072 © Copyright BOERplay 24-1-2023 Revision: A...
  • Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 2,04 m 2,64 m Grondmarkering Ground level marker PST 110 072 © Copyright BOERplay 24-1-2023 Revision: A...

  • Page 5: Order Of Assembly

    Volgnr. Bew. Rev. Benaming Opmerking Driehoek dak Driehoeksvloer 0,59 en 0,95 Grond frame 1,45 Staander 2,3 m Staander 3,0 m Wand/Telbollen Klimwand 0,59 m Poer model 1 25 KG UKKEPUK GLIJBAAN PST 110 072 © Copyright BOERplay 24-1-2023 Revision: A...
  • Page 6 PST 110 072 © Copyright BOERplay 24-1-2023 Revision: A...
  • Page 7 LOGBOOK Type indication Adventure Play Article number PSTE110.072 Product Name Playhouse Sierra Maximum fall height 0,6 m Construction year 2023 Certificate 066756 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 9: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 12 A ( 1 : 4 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Houtdraadbout ø10 X 60 - RVS A2-70 SLUITRING DAKHELFTBEUGELTJE Dakje toren Adventure Play © Copyright BOERplay 19-8-2022 Revision: MAP 00 003...
  • Page 13 Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking HOUTDRAADBOUT M10 X 80 Carrosseriering M10 x 30 - VZ 8.8 Standaard plank 120x20 Lengte = 1400 MAP 02 140 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 14 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia Ø 14-16 Zaaglengte = 2,3 m MAP 04 230 © Copyright BOERplay 17-8-2022 Revision:...
  • Page 15 Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 30x30x14 Afstandsbus Driehoeksvloer 0,59 en 0,95 MAP 01 001 © Copyright BOERplay 14-2-2023 Revision:...
  • Page 16 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia Ø 14-16 Zaaglengte 3,0 m MAP 04 300 © Copyright BOERplay 11-8-2022 Revision:...
  • Page 17 Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking BORGMOER Sluitring M12 - RVS A2-70 D-sluiting 5 MM RVS Beschermdop M10-M12 Dop zwart RING KUNSTSTOF Slotbout met lip M12x150 Touw 1,0m MAP 06 007 © Copyright BOERplay 9-2-2023 Revision:...
  • Page 18 Benaming Opmerking Schroef Assy 5 x 50 - RVS A2-70 Houtdraadbout ø10 X 50 - RVS A2-70 SLUITRING Facet ring M5 - RVS A2-70 OPLOOP BEUGEL LINKS OPLOOP BEUGEL RECHTS Klimwand 0,59m MAP 20 059 © Copyright BOERplay 19-8-2022 Revision:...
  • Page 19 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantbout ISO 4014 M12 x 40 - VZ 8.8 Carrosseriering M12 x 35 - VZ 8.8 Poer model 1 25 kg Benaming MOD OBT 001 025 Poer model 1 Title Tekening Opmerking 25 KG Drawing Comment BOER...
  • Page 20 A ( 1 : 2 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 50 - RVS A2-70 DOPMOER BORG RVS M10 Bolkopbout ISO 7380 M10 x 80 - RVS A2-70 Bolkopbout ISO 7380 M10 x 40 - RVS A2-70 SLUITRING Facet ring M5 - RVS A2-70...
