Summary of Contents for BOERPLAY SPTE100.290

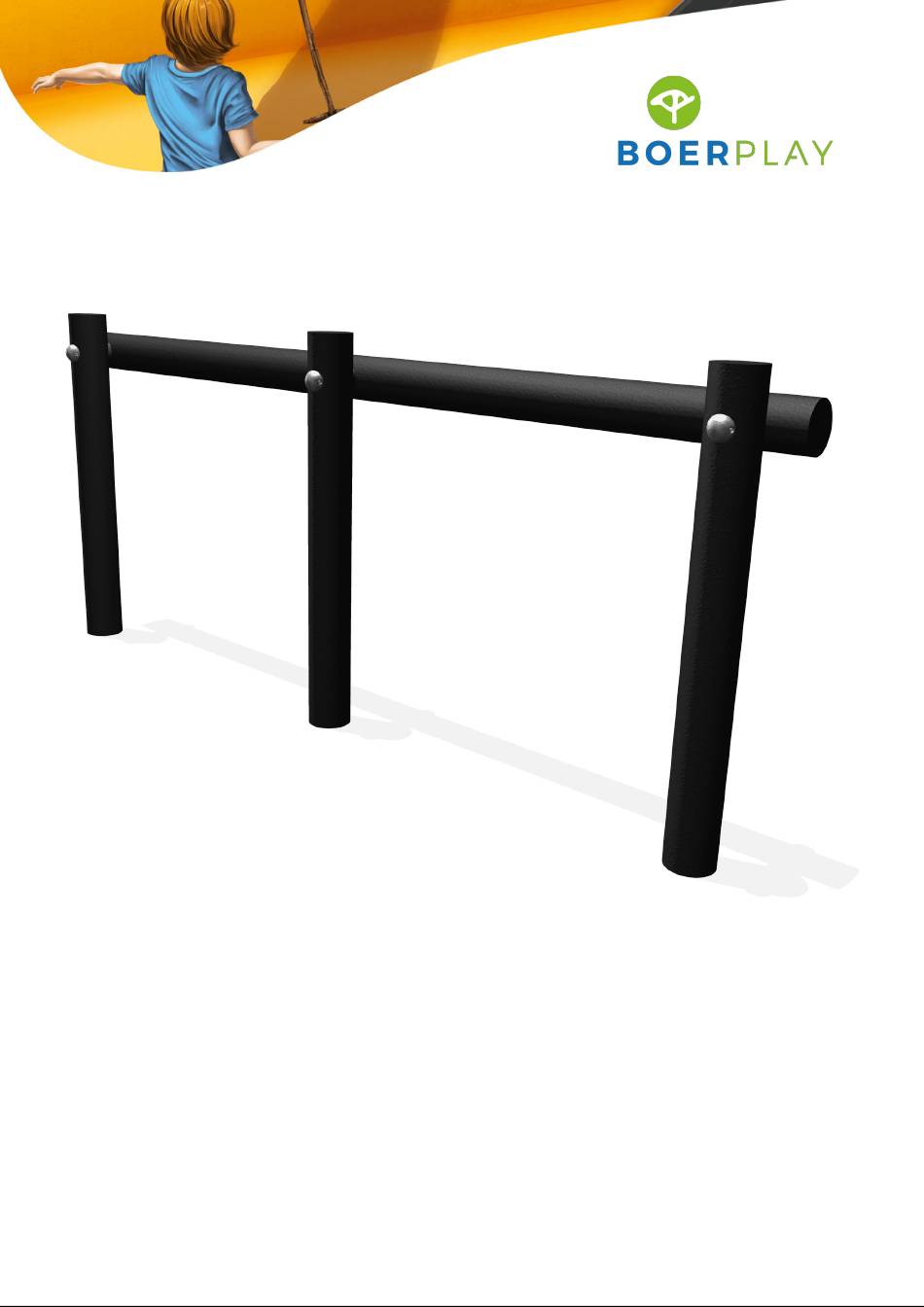

- Page 1 Handrail SPTE100.290...
- Page 2 3,10 m Benaming TOE SPT 100 290 Leuning Title Tekening Opmerking Trimbaan Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 3-11-2015 Date SPEELTOESTELLEN...
- Page 3 3,30 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE SPT 100 290 Leuning Title Tekening Opmerking Trimbaan Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 3-11-2015 Date SPEELTOESTELLEN...
- Page 4 1,65 m 1,40 m 1,40 m 1,65 m Grondmarkering Ground level marker Benaming TOE SPT 100 290 Leuning Title Tekening Opmerking Trimbaan Drawing Comment BOER Datum Bodemplan Groundplan 3-11-2015 Date SPEELTOESTELLEN...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 LOGBOOK Type indication Article number SPTE100.290 Product Name Handrail Maximum fall height Information about the owner of the playground Name: _______________________________________________________ Address: _______________________________________________________ Zipcode and city: _______________________________________________________ Contact: _______________________________________________________ Phone number: _______________________________________________________ Information about the manager of the playground Name:...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 10 Dit toestel is geen speeltoestel conform het warenwetbesluit attractie- en speeltoestellen, en is dus niet als zodanig gecertificeerd. This equipment is not playground equipment, so it has not been certified as such.
- Page 11 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Vulschijf art.nr.80395000040 Zebra Pias 4,8x25 - VZ 8.8 KoppelbuisØ31.8 art.nr.80096030000 Inslagdop grijs Vulring art.nr.80395000050 Benaming MOD JGP 008 051 systeembuis hoh 153 Title Tekening Opmerking Sport Drawing Comment Datum Samenstelling module Assembly module 8-4-2015 Date...
- Page 12 2025 All holes Ø46 unless otherwise stated. All holes pierce unless otherwise stated. All the holes in the heart of the post, unless otherwise stated. Type Progr. Volgnr Bew. Rev. Benaming Opmerking Alle gaten Ø46 tenzij anders vermeld. Alle gaten doorboren tenzij anders vermeld. Rebo Ø145 L=2025 Alle gaten in hart van de paal tenzij anders vermeld.
