Summary of Contents for BOERPLAY SPTE100.270

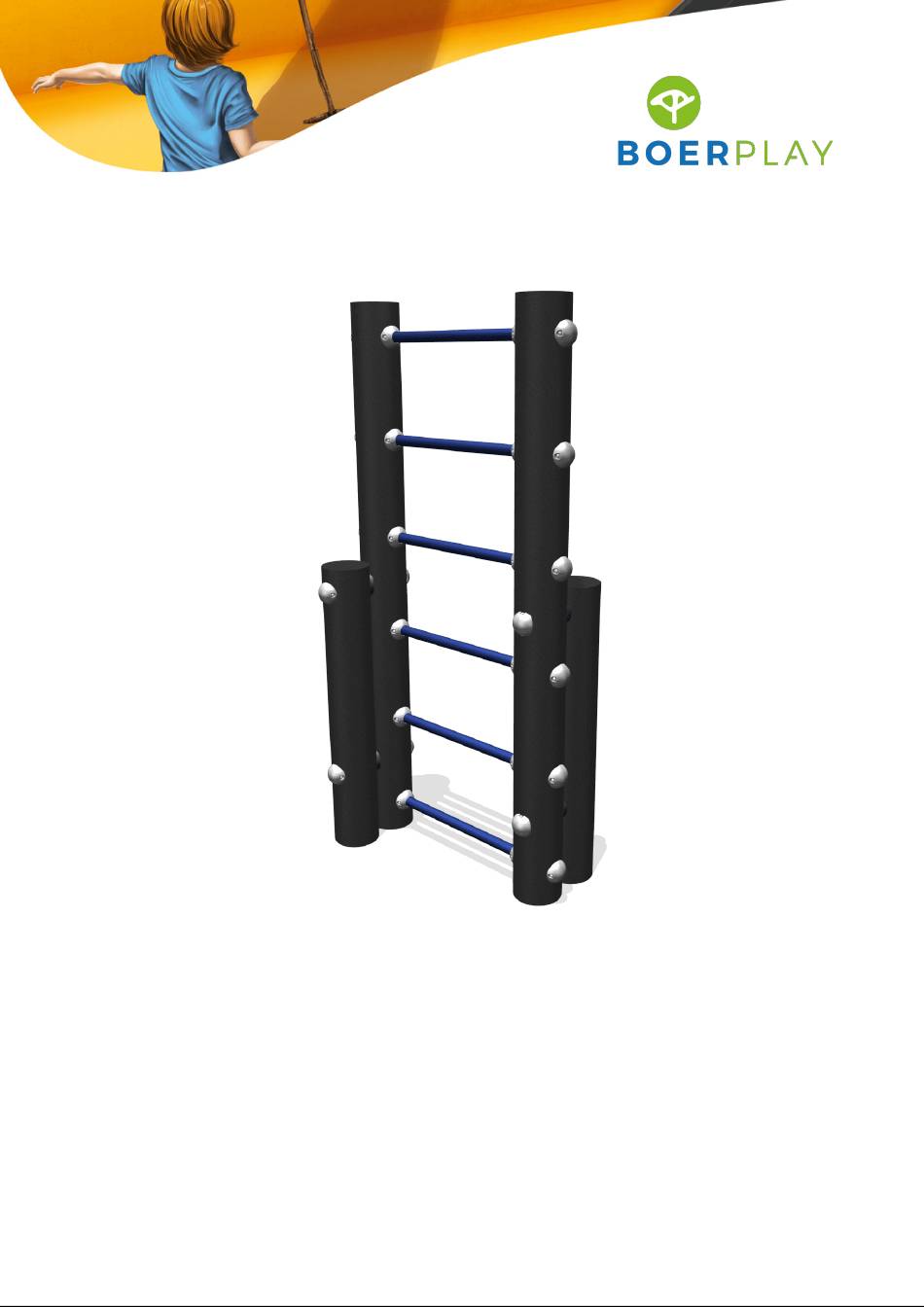

- Page 1 Climbing equipment SPTE100.270...
- Page 2 0,80 m Benaming TOE SPT 100 270 Klimrek Title Tekening Opmerking Trimbaan Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 10-11-2015 Date SPEELTOESTELLEN...
- Page 3 3,71 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE SPT 100 270 Klimrek Title Tekening Opmerking Trimbaan Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 10-11-2015 Date SPEELTOESTELLEN...
- Page 4 1,70 m 0,65 m 1,70 m Grondmarkering Ground level marker Benaming TOE SPT 100 270 Klimrek Title Tekening Opmerking Trimbaan Drawing Comment BOER Datum Bodemplan Groundplan 10-11-2015 Date SPEELTOESTELLEN...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 LOGBOOK Type indication Article number SPTE100.270 Product Name Climbing equipment Maximum fall height 1,6 m Construction year 2023 Certificate 0183402366 Inspection body Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66 Fax: +31 (0)183 40 35 64...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 10 Dit toestel is geen speeltoestel conform het warenwetbesluit attractie- en speeltoestellen, en is dus niet als zodanig gecertificeerd. This equipment is not playground equipment, so it has not been certified as such.
- Page 11 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zebra Pias 4,8x25 - VZ 8.8 Inslagdop grijs Vulring art.nr.80395000050 Vulschijf art.nr.80395000040 KoppelbuisØ31.8 art.nr.80096030000 Benaming MOD JGP 001 051 Montage buis doppen grijs Title Tekening Opmerking h.o.h. 153 Drawing Comment BOER Datum Samenstelling module Assembly module 29-10-2015 Date SPEELTOESTELLEN...
- Page 12 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zebra Pias 4,8x25 - VZ 8.8 Inslagdop grijs Inslagring grijs Pijp Ø31.8 x 2.6 L=825 mm Benaming MOD SPT 001 011 Stang Title Tekening Opmerking H.o.h. 650 Drawing Comment BOER Datum Samenstelling module Assembly module 9-11-2015 Date SPEELTOESTELLEN...
- Page 13 1000 1300 1450 1600 2400 1625 All holes Ø46 unless otherwise stated. All holes pierce unless otherwise stated. All the holes in the heart of the post, unless otherwise stated. Type Progr. Volgnr Bew. Rev. Benaming Opmerking Alle gaten Ø46 tenzij anders vermeld. Alle gaten doorboren tenzij anders vermeld.
