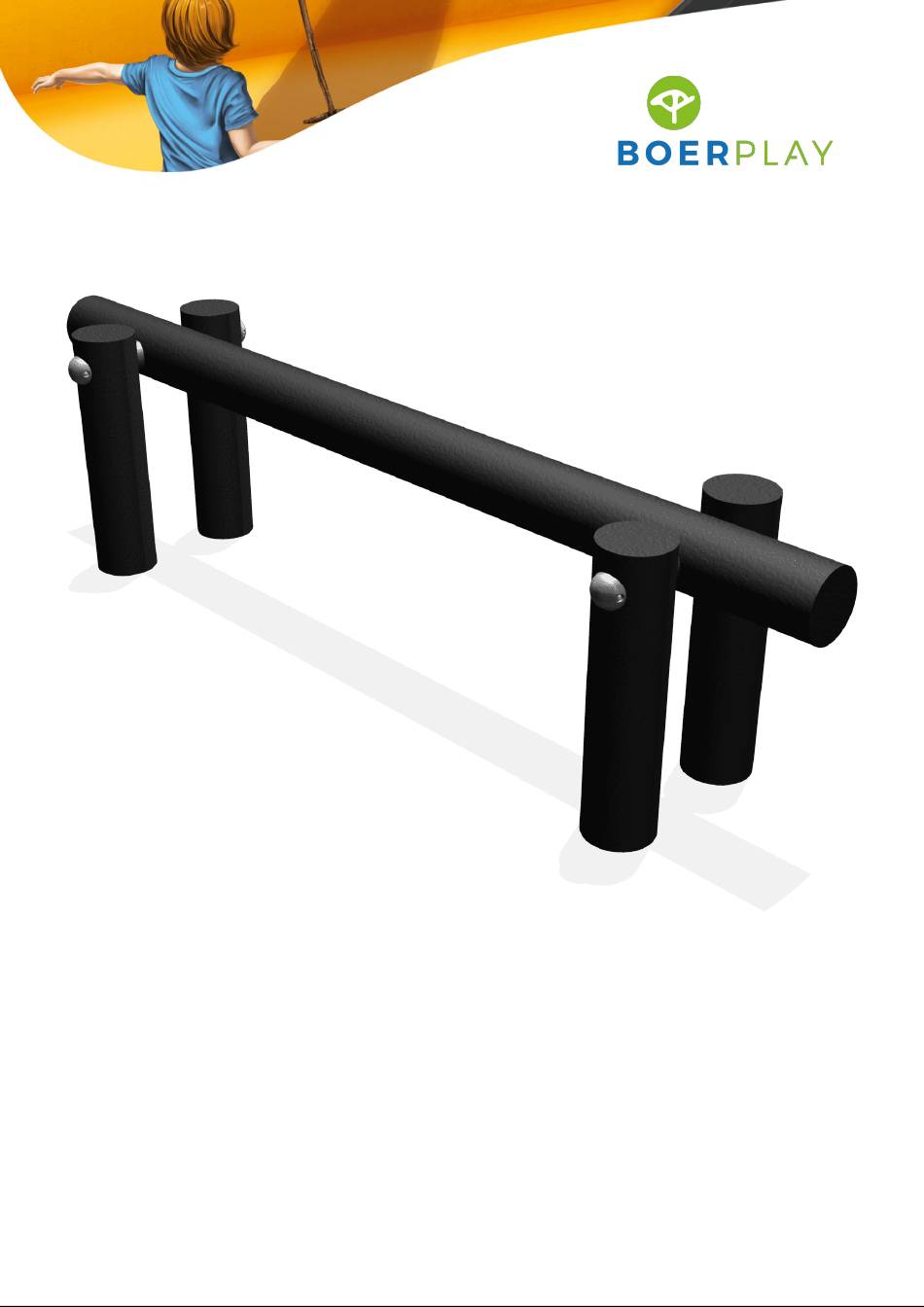

- Page 1 Obstacle track straight high SPTE100.080...
- Page 2 2,20 m 0,60 m 0,00 m Benaming TOE SPT 100 080 Hoge evenwichtsbalk Title Tekening Opmerking Trimbaan Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 8-4-2015 Date SPEELTOESTELLEN...
- Page 3 3,50 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE SPT 100 080 Hoge evenwichtsbalk Title Tekening Opmerking Trimbaan Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 8-4-2015 Date SPEELTOESTELLEN...
- Page 4 2,05 m 1,60 m 2,05 m Benaming TOE SPT 100 080 Hoge evenwichtsbalk Title Tekening Opmerking Trimbaan Drawing Comment BOER Datum Bodemplan Groundplan 8-4-2015 Date SPEELTOESTELLEN...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 LOGBOOK Type indication Article number SPTE100.080 Product Name Obstacle track straight high Maximum fall height 0,6 m Construction year 2024 Certificate 0183402366 Inspection body Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk Phone: +31 (0)183 40 23 66...
- Page 7 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 8: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 9 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 10 Dit toestel is geen speeltoestel conform het warenwetbesluit attractie- en speeltoestellen, en is dus niet als zodanig gecertificeerd. This equipment is not playground equipment, so it has not been certified as such.
- Page 11 Grondmarkering Ground level marker Type Progr. Volgnr Bew. Rev. Benaming Opmerking Rebo Ø145 L=1300 Rebo Ø145 L=2200 1300 Ø (2x) Gaten Ø46 tenzij anders vermeld Benaming MOD SPT 100 080 Rebo Pakket Title Tekening Opmerking SPT.100.080 Drawing Comment BOER Datum Samenstelling module Assembly module 8-4-2015 Date...
- Page 12 !"# !"# %& !"# 1" $/*0...
