5. Replacement
Disassembly/Replacement Tool
Use the tool is shown in the following table to replace the module of the digital power meter.
No. Tool Name
Quincunx
1
screwdriver
2 Soft pad
3 ESD prevention
Replace Small Current Fuse
Explanation
This section can fix the two problems.
1) Replace the fuse
2) Supply voltage selection switching

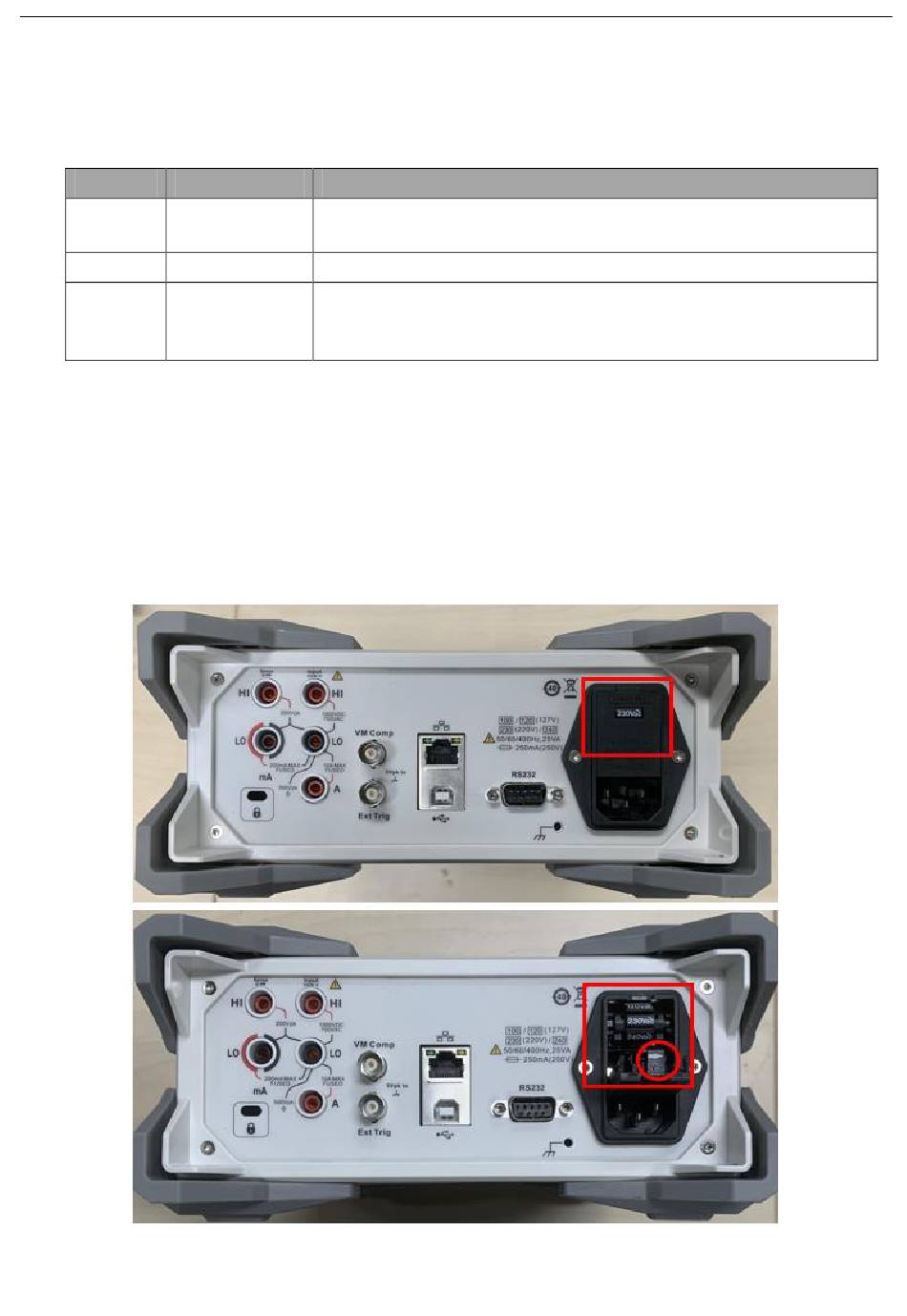

1. Open the opening at the top of the power module to replace the small current fuse, as shown in the
following figure.
Instruments.uni-trend.com
Description
The model refers to the removal steps
For protect the screen and rotary knob when removing rear modules
To prevent static damage to the components while working on the
instrument, wear properly grounded anti-static wristbands and foot
bands, and use anti-static pads in a tested anti-static environment
