Outer Frame; Rear Panel - UNI-T UT8806E Service Manual

Service Manual

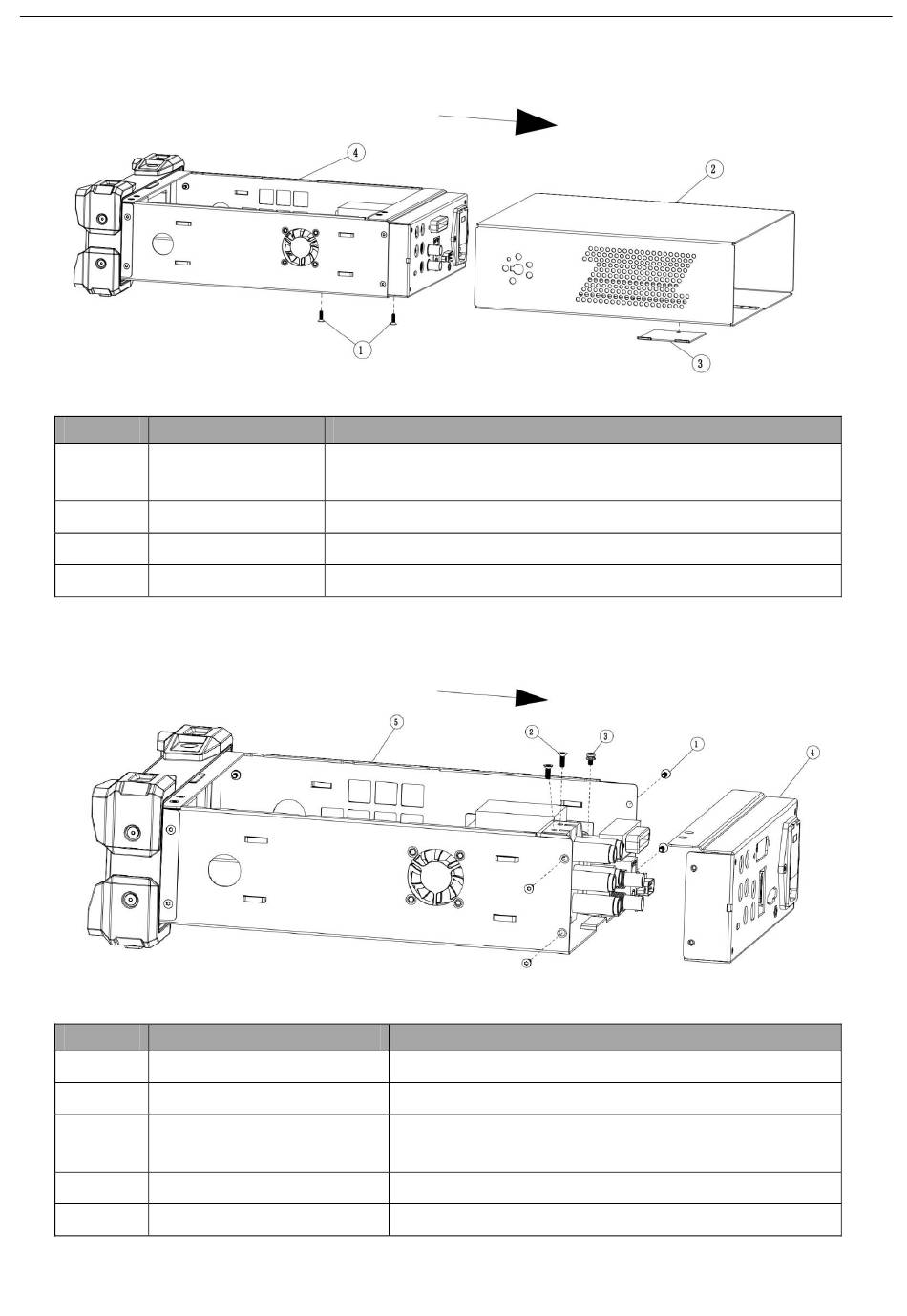

Outer Frame

Accessory List
No. Article
1 KM3X8 quincunx
screw
2 Outer frame
3 Fuse cover
4 Product body

Rear Panel

Accessory List
No. Article
1 KM3X6 quincunx screw
2 KM3X7 quincunx screw
3 PM3X6 quincunx machine
screw
4 Rear panel
5 Product body
Instruments.uni-trend.com
Description
Use T10 quincunx screwdriver to remove 2 screws
Pull to the back of the case
Take it down
Description
Use T10 quincunx screwdriver to remove 4 screws
Use T10 quincunx screwdriver to remove 2 screws
Use T10 quincunx screwdriver to remove 1 screw
Pull to the back of the case
UT8806E Desktop Digital Multimeter
12 / 29
